Electric Wire Rope Hoist

본문 바로가기
Home > Product > Electric Wire Rope Hoist
Product
Electric Wire Rope Hoist
Posting date : Nov 09, 2018
Membership
Free Member Scince Mar 28, 2015
FOB Price
500-1000USD
Min. Order Quantity
1
Supply Abillity
100
Port
shanghai or ningbo port
Payment Terms
TT or LC
Package
Plywood case
Keyword :
Electric Wire Rope H
Category
MACHINERY & ELECTRICAL | Nuclear re | Pulley tac | Pulley tac
Contact
yang
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
RAMHOIST
Model Number
Electric Wire Rope Hoist
HS-CODE
8425-11
Package & Delivery Lead Time
Package
Plywood case
Delivery Lead Time
20 days
Detailed Description
Features
  • Compact and smart structure, light weight.
  • Smooth, convenient and ergonomic operation
  • Safe and reliable, low noise
  • Enhanced durability and Parts versatility
  • Strong lifting capacity, easy to maintenance
  • common-used parts, universal and strong compatibility
  • Environmentally friendly
  • Novel and Humanization design, good-looking appearance
  • Efficient high lifting speed, smooth low lifting speed, precise positioning
Capacity        0.5Ton-20Ton
Standard Lift    6 m
Use            Lifting Up/Down, Traversing Left/Rights
Drive Mode     Motor
Sling Type      Wire Rope
Operation     With pedant cable push button or remote control
Power Supply   220v-700v, 50/60 Hz, 3 phase, single or dual voltage
Control Voltage  24v, 36v, 42v, 48v, 110v
H.S. Code       84251100

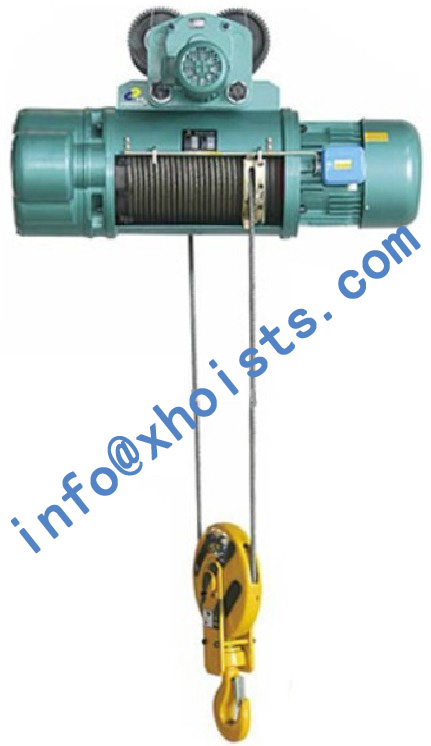

Electric Wire Rope Hoist can be mounted on the straight or curve I beam and H beam of Single girder overhead cranes. Or be used together with Electric hoist Double-beam, Gantry crane, Slewing cranes, Jib cranes, EOT cranes, Portal cranes, Crane kits.
Trolley electric hoist can be installed with most cranes or hang on the steel girder, hoisting cargo in straight line or curve line; fixed electric hoist can be installed on fixed support and lift cargo with vertically or with different angles, can be widely used to lift heavy objects and is a popular light lifting equipment.

Detailed Description
1. Lifting motor
Brand: China top brand motor from Nanjing, It is of the best quality motors, it has bigger torque, so it can be adapted to moving frequently, the Maximum torque is 2.4-3 times than the rated torque.
Lifting motor uses tapered rotor motor with strong staring torque to adapt frequent direct staring in the intermittent work.CD1 type hoist uses single speed motor and MD1 type hoist uses dual speed motor. The ratio of motor's constant speed and slow speed is 10:1
2. Speed reducer
The electric wire rope hoist use helical gear three stage reducer. Gear and shaft are made by alloy steel and high carbon steel and through proper heat treatment to ensure its reliability and service life. the reducer is independent, so its easy to load and unload it.
Box body and cover is made of cast iron to ensure hoist's good damping performance and reliable sealing.
3. Rope drum
Rope Drum is made of cast iron or seamless steel tube, using/with the help of spline transferring power. The sell of rope drum is welded with steel plate.
Grooved Drum, seamless pipe of adequate length to be wounded in one layer and to provide proper support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running.
Rope drum is the central heart of a hoist. The upper side is linked with traveling mechanism through equalizing beam. Both ends are connected with lifting brake and motor respectively. The lower side works together with hook through wire rope. Up front of the cover, limiting stopper guide-rod and heavy punch stop block are installed.
4. Rope guide
Rope Guide is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guides of ours is thickened and dilated, so that it is not easy to be damaged.
5. Limit switch
Limit switch devices are fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
More details pls visit our website: http://www.ramhoist.com/
Or send to info@ramhoist.com
