SteelTailor TubeTailorII CNC tube cutting machine
Posting date : Dec 16, 2015
Membership
Free Member Scince Nov 13, 2015
FOB Price
7000USD
Min. Order Quantity
1
Supply Abillity
1000
Port
Tianjing
Payment Terms
T/T
Package
Wooden box
Keyword :
Category
Contact
Slinna
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
SteelTailor
Model Number
TubeTailorII
HS-CODE
8540-91
Package & Delivery Lead Time
Package
Wooden box
Delivery Lead Time
30 days
Detailed Description
SteelTailor TubeTailorII CNC tube cutting machine
SteelTailor TubeTailorII CNC tube cutting machine is an simple and efficient CNC tube cutter.

Major Functions:
  1. truncation cutting,
  2. slot cutting, square hole cutting,
  3. unfold tube cutting and letter cutting,
  4. bevel tee junction cutting,
  5. Y junction tube cutting,
  6.  tee junction main tube cutting,
  7.  tee junction branch tube cutting
  8. branch cutting for multi-tube joint.

These functions make TubeTailorII CNC tube cutting machine more powerful than TubeTailorI CNC tube cutter.

TubeTailor I vs TubeTailor II
                     TubeTailor I TubeTailor II
Longitudinal effective cutting 2000mm 6000mm
Diameter of tubes Ф60~Ф260mm Ф80~Ф400mm
thickness  ≤ 8mm
Input power 300W 1500W
Z axis and THC Electric up and down Automatic arc voltage THC
Nesting Software NO YES

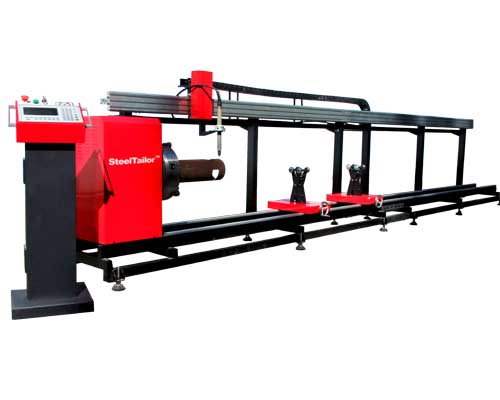

TubeTailor II CNC Cutting Machine
  1. Rotate the handle to adjust and make the pulley wheel close to the tube wall for achieving stable cutting process.
  2. Vibration reduction technique ensures stability and brings better cutting quality
  3. Diameter of tubes :Ф80~Ф400mm
  4. wall thickness ≤ 8mm
  5. Control cabinet with roller wheel, easy for movement and operation
  6. Butt joint installation for two sections of machine tool

TubeTailor II is an economical CNC tube cutting machine with SteelTailor portable design. It is suitable for cutting tubes with diameter from 80 to 400mm and cutting various graphs in metal tubes, which have thickness of less than 8mm. Besides, it can work for different butt joint after welding tubes.
Program code can be checked and saved in controller or USB
Vibration reduction technique ensures stability and brings better cutting quality.
Technical Parameters

Items Description
Power

AC220 V 50/60Hz 1.5KW
Tube Diameters Ф80—Ф400mm
Wall Thickness
≤8mm

X-axis Effective Cutting Length

6000mm

Z-axis Effective Lifting Distance

110mm

THC

Automatic arc voltage THC

MAX Cutting Speed

2000mm/min

MAX Running Speed
3000mm/min

X Positioning Precision

±0.2mm/10mm

X Repeatability

±0.2mm/10mm
