Standard Amphibious Undercarriages- Small and Medium Size
Posting date : Oct 17, 2016
Membership
Free Member Scince Dec 08, 2015
Min. Order Quantity
1 set
Supply Abillity
5 sets /month
Port
Shanghai,Shenzhen,Qingdao,Tianjin
Payment Terms
T/T,L/C
Package
nude packing
Keyword :
Category
Contact
Helen Liu
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
SUNTON
HS-CODE
8429-52
Package & Delivery Lead Time
Package
nude packing
Detailed Description

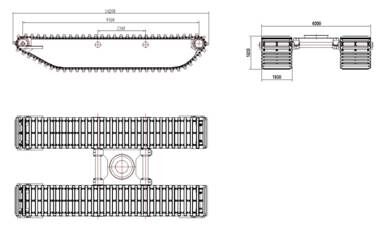

Different from the conventional undercarriage of the construction machinery, the undercarriage of an amphibious excavator or marsh buggy is built on two large steel pontoons with the tracks mounted around them. The pontoons create buoyancy, giving the machine capabilities between those of a barge and a regular excavator. The pontoons are custom fabricated for a particular machine to provide the correct displacement and balance to allow the machine to safely float and move on water or soft terrains.

SUNTON supplies full range of PU series selfpropelled amphibious undercarriages that are suitable for excavators from 8tons to 47tons. The undercarriages could be designed to match to any excavator brand including Bobcat, Case, JCB, Linkbelt, Takeuchi, Hitachi, Volvo, Caterpillar, Komatsu, Hyundai, Kobelco, Samsung. Johndeer, Doosan or Daewoo etc. Payload of the undercarriage ranges from 3 metric tons to 42 metric tons, 1360 pounds to 19050 pounds. In most instances, the hydraulic system of the excavator is used to propel the amphibious undercarriage. In these instances, SUNTON supplies a mounting ring compatible with the excavator upper along with a hydraulic swivel, travel motors and brakes and final drive gear boxes.

SUNTON PU series amphibious pontoon undercarriage could also be custom built to be as the swamp undercarriage matching to many other machines’ upper structures including dredging cutter pumps, dump bodies or dumpers, draglines, cranes, draglines, drill rigs, soilboring rigs, man-lifts, fuel tanks, water tanks or pipe laying cranes, etc.
