2V 1000AH lead acid storage battery high capacity
Posting date : Dec 09, 2015
Membership
Free Member Scince Jul 01, 2015
FOB Price
negotiable
Min. Order Quantity
200PCS
Supply Abillity
300,000 Pieces per Month
Port
SHENZHEN OR GUANGZHOU
Payment Terms
T/T,L/C,WESTUNION
Package
pp bag for each, carton BOX
Keyword :
Category
Contact
Matrix
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Matrix
Model Number
np1000-2
HS-CODE
8507-20
Package & Delivery Lead Time
Package
pp bag for each, carton BOX
Delivery Lead Time
15 days after receiving the deposit
Specifications

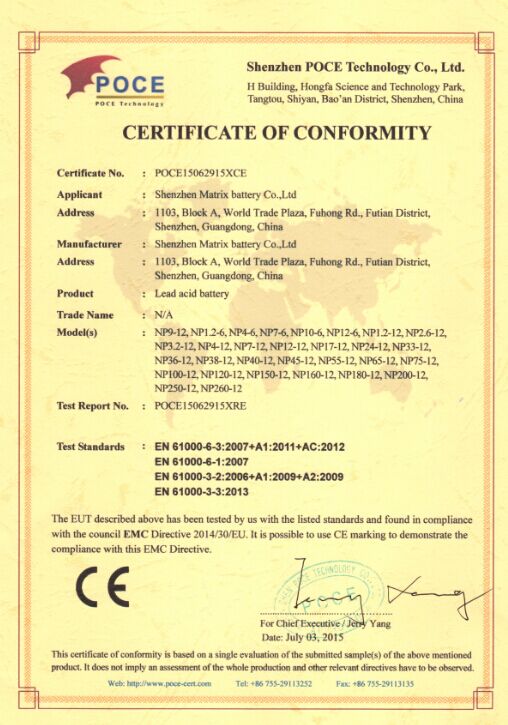

Type of Certification
ce
Reference no.
poce15062915xce
Name.
ce
Issued By
POCE
Start Date (validity period)
0000-00-00
End Date (validity period)
0000-00-00
Scope
LEAD ACID BATTERY

Detailed Description

VRLA Battery

  • High performance, completely maintenance-free, low self-discharge
  • 100% precise quality testing, stable quality and high reliable performance
  • Unique grid alloy formula and updated manufacturing technique
  • Floating & standby useup to 10 years
  • Cycle use 1: Up to 280 cycles at 100% DOD
  • Cycle use 2: Up to 1800 cycles at 30% DOD

Application:

  • Telecommunications
  • Wind power system
  • Wheelchair
  • Golf trolley
  • Solar system
  • Engine starting
  • Floor cleaning machines
  • Boats

Construction:

  • Component ......Raw material
  • Positive ........Lead dioxide
  • Negative ........Lead
  • Container ........ABS
  • Cover ........ABS
  • Sealant ........Epoxy
  • Safety valve .... Rubber
  • Terminal ........Copper
  • Separator ........Fiber glass
  • Electrolyte ....... Sulfuric acid

Specification:

Battery Model

NP 1000 -2  2V1000AH

Designer Floating Life

Up to 10 Years

Capacity  (25℃)

10HR(100.00A,1.8V)

5HR(160.60A,1.8V)

3HR(236.60A,1.8V)

1HR(506.60A,1.8V)



1000.00AH

803.00AH

709.80AH

506.60AH

Dimensions

Length

Width

Height

Total Height



474mm (18.66inch)

173mm (6.81inch)

329mm (12.95inch)

365mm (14.37inch)

Approx. Weight

61.50Kg (135.61 lbs)

Internal Resistance

Full charged at 25℃:≤0.42mΩ

Self Discharge

2% of capacity declined per month at (25℃)

Capacity Affected

by Temp.(20HR)

40℃

25℃

0℃

-15℃



102%

100%

85%

65%

Charge Voltage(25℃)

Cycle use

Float use



2.40-2.50V(-5mV/℃), max. Current:250.0A

2.25-2.30V (-3.0mV/℃)
