45meters telecommunication lattice steel tower
Posting date : Nov 05, 2015
Membership
Free Member Scince Nov 05, 2015
FOB Price
900-1000USD
Min. Order Quantity
10 ton
Supply Abillity
60000mt per yaer
Port
Ningbo,China
Payment Terms
T/T, L/C
Package
Export standart package
Keyword :
Category
Contact
Ivy Xiang
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
GTE
Model Number
GTE001
HS-CODE
9030-40
Package & Delivery Lead Time
Package
Export standart package
Delivery Lead Time
arround 4 weeks
Specifications
Type of Certification

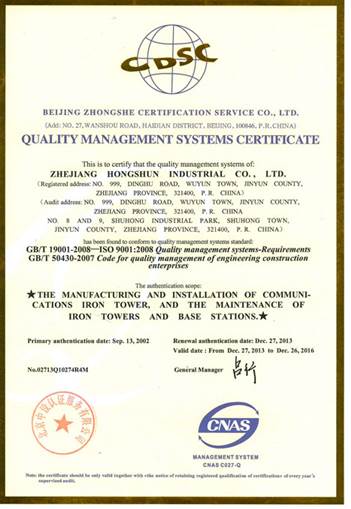

ISO9001-2008
Start Date (validity period)
0000-00-00
End Date (validity period)
0000-00-00

Detailed Description
1. Design Criteria of Steel Tower
1.1 Basic wind speed=150mph (3 second gust)
1.2 Exposure Category C and Topographic Category 1
1.3 Code: ANSI/TIA/EIA-222-G and ANSI/ASEC 10-97 Latest
1.4 Antenna load: 8.1sqm2 at top 5 meter
2. Fabrication
2.1 Prototype assembly of each new tower type should be done before mass production.
2.2 Hot-dip galvanization in accordance with ISO1461-2009 and ASTM A123.

3. Steel Material
3.1 Legs Steel will be high tensile steel like Q420/Q345 with yield strength is 420/345MPa.
3.2 Others Steel will be middle steel like Q235 with yield strength is 235MPa.
3.3 Bolts will be follow ISO 898 grade 8.8/A325 Bolts

4. Quality and Quantity
4.1 We have been providing world top class design, engineering and manufacturing for telecommunication tower and related infrastructure materials worldwide and gaining a very good reputation in this field during past decades.
4.2 Our professional team have more than 80 years experience in this industry field. We are paying a lot of attention for quality and quantity issues during each procedures in order to avoid any possible mistakes which help our clients a lot.
Tower Height 45m
location Global
Client Operators
Lifetime 30 years
Foundation 150 KPa soil bear capability
Goods Description Self-supported lattice Steel Tower
Component  Steel Tower with platform,climbing ladder with safety cage,cable ladder,HD bolts and foundation template, bolts and nuts, antenna brackets
Accessories Paint kits, Lightning & earthing System, Fall arrest system, Navigation light, Generators, Security room, Canopy, Shelter and Palisade Fencing
