DP27 Pilot Operated Pressure Reducing Valve
Posting date : Jul 30, 2015
Membership
Free Member Scince Jul 23, 2009
FOB Price
150
Min. Order Quantity
1
Supply Abillity
500
Port
Ningbo or Shanghai
Payment Terms
T/T D/P L/C
Package
plywood case
Keyword :
Category
Contact
CATHY
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
GOOLE
Model Number
DP27
HS-CODE
8481-10
Package & Delivery Lead Time
Package
plywood case
Delivery Lead Time
1-3weeks
Detailed Description

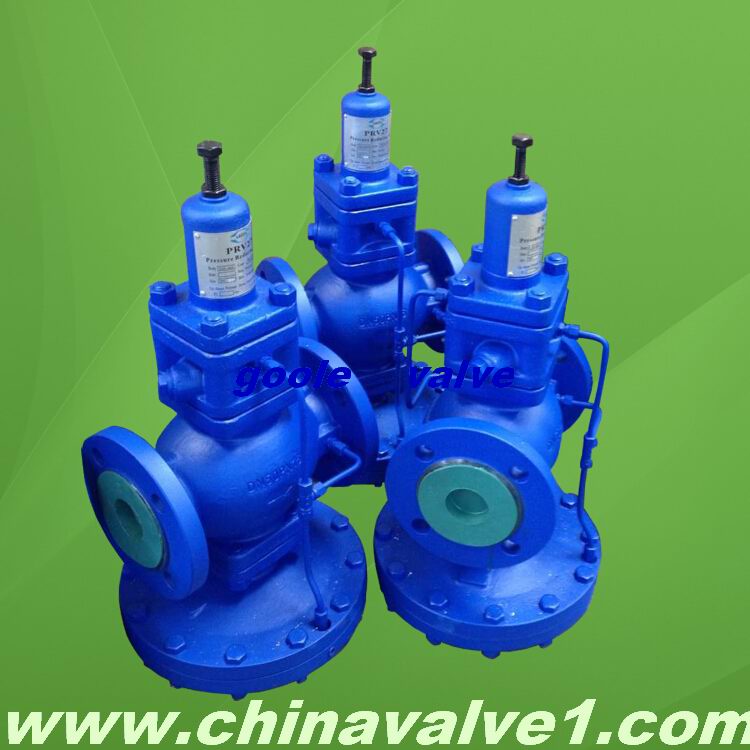

DP27 Pilot Operated Pressure Reducing Valve

DP27 Pilot Operated Pressure Reducing Valve

DP27 Pilot Operated Pressure Reducing Valve

<h1>DP27 pilot operated pressure reducing vlave</h1>DP27 pilot operated pressure reducing valve

Pressure Rating: 1.6- 2.5MpaSpecification: DN15-50Material: Steel WCBStandard flanges: DIN, ANSI, JIS

DP27 Pilot operated pressure reducing valve is the new type pilot extra-huge membrane pressure reducing valve developed by our company. It is greatly improved on basis of normal pressure reducing valve. The membrane use new material, enlarging the working area, so the slight change of upper pressure or lower pressure can be fed back to membrane of main valve, and adjust the opening of main valve to ensure the constant pressure of lower stream pressure.Note: A variable rate conical pressure adjustment spring is fitted providing a down stream pressure range of 0.2-17bar g.



DP27 Pilot Operated Pressure Reducing Valve's main technical parameters and indexes of performance
Nominal pressure
PN25
Maximun design pressure(PMA)
25bar g @ 120
Maximun design temperature(TMA)
232 @ 21bar g
Minimun design temperature(TMI)
-10
Maximun upstream pressure for saturated steam service(PMO)
17barg
Maximun operating temperature(TMO)
232 @ 21bar g
Minimun operating temperature(TMIO)
0
Maximun differential pressure( PMX )
17bar
Down stream pressure range
0.2-1.7bar g
Maximum cold hydraulic test pressure
38bar g
DP27 Pressure Reducing Valve 's material of main component
Name of component
Material of component
Valve body, valve cover
WCB
Valve seat
2Cr13
valve flap
2Cr13
Valve rod
2Cr13
Membrane
Brass
Adjusting spring
60Si2Mn
DP27 Pressure Regulator 's connecting dimension
DN
L
H1
H
D
15
147
221
133
185
20
154
224
136
185
25
160
235
145
207
32
180
236
156
207
40
200
238
176
255
50
230
246
183
255
65
250
295
200
320
80
310
323
230
350
100
350
340
263
380
125
400
359
306
455
150
450
375
330
500
