900 Series DIN Spring loaded Pressure Safety Valve

Product

Posting date : Jul 30, 2015

Click enlarge Image

Membership

Free Member Scince Jul 23, 2009

FOB Price

150

Min. Order Quantity

Supply Abillity

500

Port

Ningbo or Shanghai

Payment Terms

T/T D/P L/C

Package

plywood case

Keyword :

Pressure Safety Valv

Category

MACHINERY & ELECTRICAL | Nuclear re | Taps cocks | Safety/rel

Contact

CATHY

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

GOOLE

Model Number

900/902/912/911/901

HS-CODE

8481-40

Package & Delivery Lead Time

Package

plywood case

Delivery Lead Time

1-3weeks

Detailed Description

900 Series DIN standard Safety Valve are mainly applied to the industries such as petroleum & Natural gas, Chemistry, Electric, Metallurgy & Burning gas. DIN safety valve, pressure safety valve, safety relief valve.

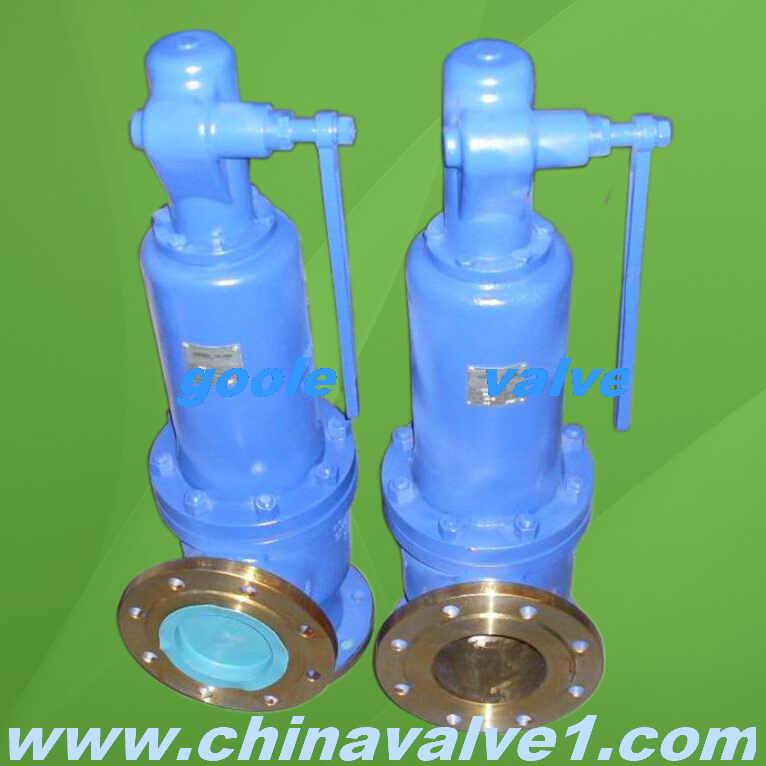

900 DIN Spring loaded Pressure Safety Valve

DIN Standard Safety Valve Features:

Safety valves were first used on steam boilers during the industrial revolution. Early boilers without them were prone to accidental Explosion.Safety valves also evolved to protect equipment such as pressure vessel (fired or not) and heat exchangers. Safety valve term should be limited to compressible fluid application (gas, vapor, steam).

The two general types of protection encountered in industry are thermal protection and flow protection.

For liquid-packed vessels, thermal relief valves are generally characterized by the relatively small size of the safety valve necessary to provide protection from excess pressure caused by thermal expansion. In this case a small valve is adequate because most liquids are nearly incompressible, and so a relatively small amount of fluid discharged through the relief valve will produce a substantial reduction in pressure.

DIN Standard Safety Valve Specification

Type	Nominal Pressure	Body Material	Nominal Diameter	Working Temp.
901/902/911/912	PN40/16	1.0619+N	DN20/32-DN150/250	-10C～450C
901/911	PN40/16	1.4408	DN20/32-DN100/150	-60C～400C

DN	20/32	25/40	32/50	40/65	50/80	65/100	80/125	100/150	120/200/	150/250
Throat Diameter do (mm)	18	22	29	36	45	58	72	80	100	125
Orifice Area Ao(mm)	254	398	661	1018	1590	2688	4072	6362	8825	12266
Weight (Kg)	8.5	10	14	20	28	40	53	80	125	165
