PCBN Cutting Tool Blanks

본문 바로가기


Home > Product > PCBN Cutting Tool Blanks
Product
PCBN Cutting Tool Blanks
Posting date : Jul 01, 2015
Membership
Free Member Scince Jun 30, 2015
FOB Price
$10-30
Min. Order Quantity
10pcs
Supply Abillity
1000pcs/month
Port
zhengzhou
Payment Terms
T/T
Package
1pcs/box
Keyword :
Category
Contact
Sarah
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
RJ
Model Number
RJ-011
HS-CODE
8461-50
Package & Delivery Lead Time
Package
1pcs/box
Delivery Lead Time
7-15 workdays
Detailed Description

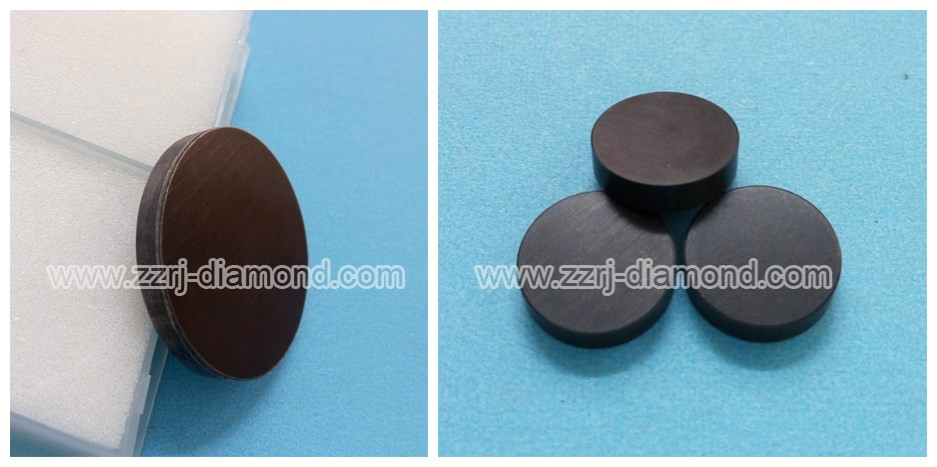

The standard shape of RJ PCBN Cutting Tool Blanks is round. Other shapes, such as rectangle, triangle, square, semi-circle and so on, can also be customized per customers' requirements.

RJ PCBN Cutting Tool Blanks consist of fine CBN grains sintered under ultra-high pressure and ultra-high temperature. Combining the strengths of hardness, thermal stability, thermal conductivity, and strong impact resistance ability characteristic of CBN, they are ideal for cutting tools for the machining of ferrous metal and alloy, all with high productive efficiency, high machining precision, and good surface quality.

RJ CBN Cutting Tools Blanks are composed by BN and PCBN two series:

BN characteristics:1.  Solid CBN2.  Good wear resistance3.  Two sides can be used as edges4.  High thermal resistance5.  Excellent fracture resistance
BN application:1.  High Speed Turning and milling of gray cast iron2.  Turning of chilled iron, nickel-based iron and ductile iron
PCBN characteristics:1.  Good weld based in the composite CBN layer and tungsten carbide base.2.  High abrasion resistance.3.  Good transversal rupture strength resistance.4.  Good chemic stability.5.  Uniform dimension precision.6.  Good consistency of processing.
PCBN application:1.  Turning of cast iron.2.  Powdered metals.3.  Exotic materials and heat resistant alloys.4.  High speed milling of gray cast iron.

Sizes Chart of RJ CBN Cutting Tools:
1.  BN series
Products Code
Diameter(mm)
Thickness(mm)
BN095
9.5
3.2
BN127
12.7
3.2
BN132
13.2
3.2
BN190
19.05
4.76/6.35
BN250
25.4
4.76/6.35
BN250
25.4
4.76/6.35

2.  PCBN series
Products Code
Diameter(mm)
Thickness(mm)
PCBN1200
12.7
1.6/2/3.2
PCBN1300
13.2
1.6/2/3.2
PCBN1900
19
1.6/2/3.2
PCBN1900
19
1.6/2/3.2
