2 layers air bubble film making machine

Posting date : Jun 29, 2015

Click enlarge Image

Membership

Free Member Scince May 30, 2010

FOB Price

USD 28,000

Min. Order Quantity

Supply Abillity

Port

RONGQI PORT

Payment Terms

30% deposit (advance payment) by L/C for order confirmation, 70% balance by T/T after running test at Malex factory and before container loading.

Package

a steel pallet to protect the machine at the bottom and wrap the whole machine by air bubble film

Keyword :

bubble wrap machine

Category

Contact

Spencer

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

Malex

Model Number

MX-B100D

HS-CODE

Package & Delivery Lead Time

Package

a steel pallet to protect the machine at the bottom and wrap the whole machine by air bubble film

Delivery Lead Time

within 60 days after receiving the bank slip of deposit

Specifications

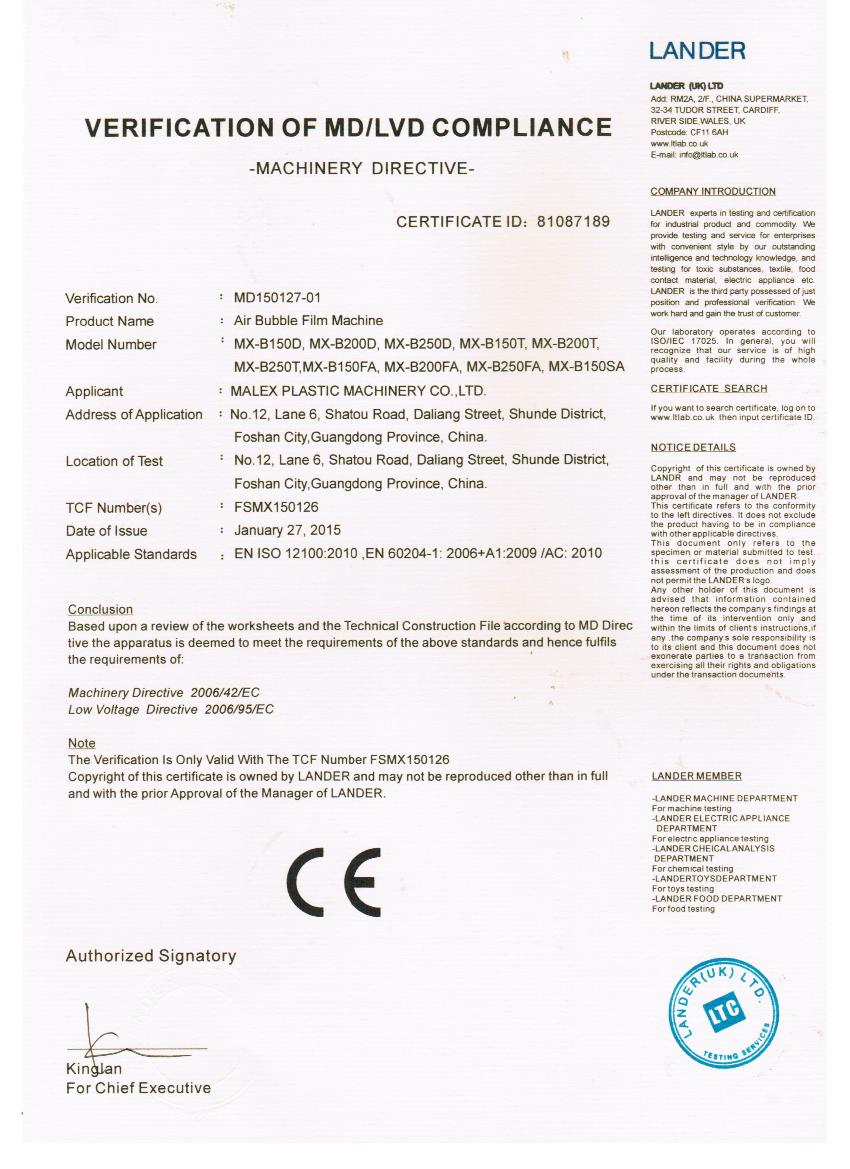

Type of Certification

Reference no.

MO150127-01

Name.

air bubble film machine

Issued By

Lander (UK) LTD

Start Date (validity period)

2015-01-27

End Date (validity period)

0000-00-00


Detailed Description

Brief Introduction of bubble wrap machine

2 layers air bubble film machine, which can both make 2 layers air bubble film,

the width can be manufactured from 1000mm to 3000mm.

The cooling effect is more ideal, it can control the temperature of the mould effectively and make sure the air bubble film is of high quality,

at the same time, that can improve the output of the machine greatly.

Fratures:

high-speed can reach 33m/min; high-output; in-line co-extrusion

1/ the structure of scientific and rational, to save space;

2/ stable performance, simple operation, high production efficiency;

3/the use of frequency control, high precision, lower energy consumption;

4/produces 2 layers or 3 layers air bubble film and laminated with 2 layers material;

5/produces bubble from 7mm to 30mm diameter and height specified by customer both specified at order.

Air bubble film is widely used in our life

Air bubble film is also called air bubble sheet ,air cushion film, poly-cell sheet or plastic poly-cell. It's widely used as anti-shock material for the package of electronic appliance, industrial products, craftwork and so on. It can also be used for thermal insulation or temperature keeping applications in agriculture, aquaculture, automobile decoration and so on. Moreover, if the raw material is mixed with additives in the extruder, static-free, conductive or environmental-friendly air bubble film can be made.

Double-screw extruder for Extruder part Ⅰ

With double-screw extruder, you can control the 2 layers separately, one screw controls the bubble layer, and the other controls the plane layer, so that the advantages are:

with the same amount of raw material, you can make the bubble layer thicker, and the plane layer thinner, so the product’s quality is much better with same cost;
also you can use less raw material to produce more film when make the plane layer thinner;

3. when you use recycle material, you can add more to extrude the plane layer and less on the bubble layer, so the products are still good but the cost reduces.

Model & Main Technologies Parameters of bubble wrap machine:

Model	Max. Width	Screw Diameter(mm)	Screw & Barrel material	Capacity (kg/hr)	Line Speed (m/hr)	Heating Power (kW)	Consumption Power (kW)	Layer	Weight (kg)
MX-B100D	1000	Φ65mm	38CrMOALA	45-60	700-1800	43	20-25	2	4200
MX-B125D	1250	Φ65mm	38CrMOALA	55-60	700-1800	43	22-27	2	5000
MX-B150D	1500	Φ75mm	38CrMOALA	67-80	700-1800	50	25-30	2	5500
MX-B160D	1600	Φ75mm	38CrMOALA	72-80	700-1800	50	27-35	2	5700
MX-B200D	2000	Φ85mm	38CrMOALA	90-110	700-1500	55	32-40	2	6400
MX-B250D	2500	Φ110mm	38CrMOALA	100-160	600-1500	72	42-50	2	7800
MX-B300D	3000	Φ120mm	38CrMOALA	110-180	600-1500	80	50-53	2	9200
