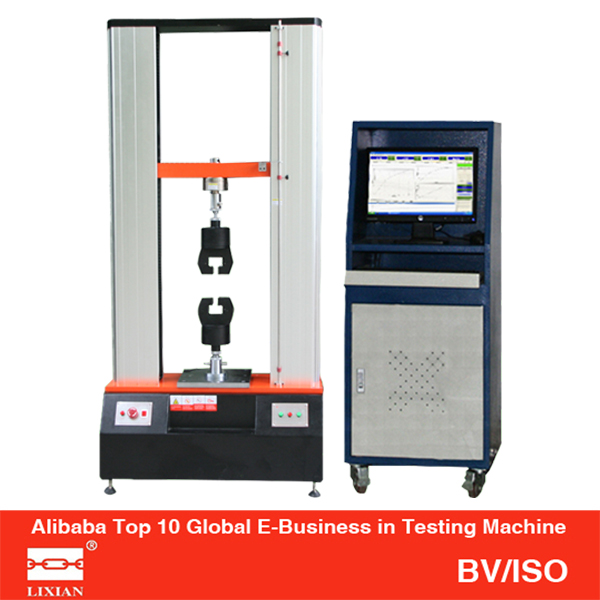

HZ-1003A Computer servo tensile testing machine

Product

Posting date : Mar 24, 2015

Click enlarge Image

Membership

Free Member Scince Mar 24, 2015

FOB Price

10000

Min. Order Quantity

Supply Abillity

100 sets pre month

Port

SHENZHEN

Payment Terms

Any payment way

Package

Wooden case

Keyword :

tensile test machine

Category

MACHINERY & ELECTRICAL | Nuclear re | Compressio | Compressio

Contact

Fiona Zhong

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

Model Number

HZ-1003A

HS-CODE

8408-10

Package & Delivery Lead Time

Package

Wooden case

Specifications

Type of Certification

Reference no.

LIXIAN-2012-004

Name.

DE-120m

Issued By

GS Information&Technology Co.,Ltd

Start Date (validity period)

0000-00-00

End Date (validity period)

0000-00-00

Detailed Description

HZ-1003A Computer servo tensile testing machine

Equipment summary:

HZ-1003A Computer Servo Type Universal Testing Machine is a new material testing machine

that combined with the electronic technology and mechanical transmission, it has accurate

load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading,

constant- velocity displacement. This machine is simple to operate, especially suitable

for controlling quality in production line, This series of machine is mainly applied to

test the non-metallic and metallic materials which the load is less than 1ton.

Main functions:

This test machine is applied to test the flexible material with large deformation. such as rubber, plastics, leather and others to complete the test of tensile, tear, adhesive

strength, peel and other tests, it is equipped with large deformative extensometer which

has the specialized terminology used in measurement of specimen, suitable for testing large deformation of materials.

echnical parameter:

Model	HZ-1003A
Max load	5KN, 1 Ton, 2 Ton
Accurate grade	1 % /0.5 %
Effective measuring range	0.2%~100%(1grade)/0.4%~100%(0.5 grade)
Measuring accuracy	Display the value ±1%/Display the value±0.5%
Tester resolution	Max load 1/200000, regardless of inside and outside, constant the resolution
Load sensor	Basic configuration：sensor(max load): one Extended configuration: can add more sensors
Effective testing width	390mm(can be widened according to customer’s requirement )
Effective Tensile stroke	800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement)
Range of testing speed	0.001~200mm/min ; 500mm/min (1000mm/min is option)
Accuracy of displacement measurement	Tolerance: ±0.5%/ tolerance: ±0.2%
Deformation of measured system(according to the requirements)	Min span :10mm, Max range of deformation ：800mm Extended deformation ：Min span: 25mm、50mm、100mm, 　range of deformation ：5mm、10mm、25mm
Accuracy of measured deformation	Tolerance :±0.5％（according to requirement of customer to choose the larger or small deformation）
safety	Electronic-limit protection
Testing platform moving device	Fast /slow two speeds to control，can jog
Return back	Manual or automatic operation、After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection	Overload 10％，automatic protection
fixture	A set of tensile fixture
Machine size	80x55x220cm(lengthwidthheight)
Power system	Panasonic AC Servo Motor + Driver + high-precision ball screw
Power supply	220V、50HZ、
Power	0．4KW（depending on different demand of force, using different motor）
Machine weight	（about）250 Kg
Units	Kg,N,LB, TON can be exchanged.
