Insulation G10 G11 epoxy glass laminate
0 likes
China [CN] | Insulation G10 G11 epoxy glass laminate | |
| 1.Material | Composite polymer(flame- retardant epoxy resin, E-glass fiber cloth) |
| 2.Technics | Mixing ,Coating,Folding,Laminate fiber d,Return Line,Cutting, Packing |
| 3.Color | Natural color(Light green),yellow,and black |
| 4.Measurement | 1020*1220(40 "×48 " ) |
| 5. Feature | Flame retardant, thermal reliability, lower warpage, moisture resistance. |
| 6.Using scope | Instruments and apparatuses, mobile communication, electrotechnics FPC reinforment,testing bed,etc. |
| 7.Packing | Carton packaging/ 250 sheet per pallet |

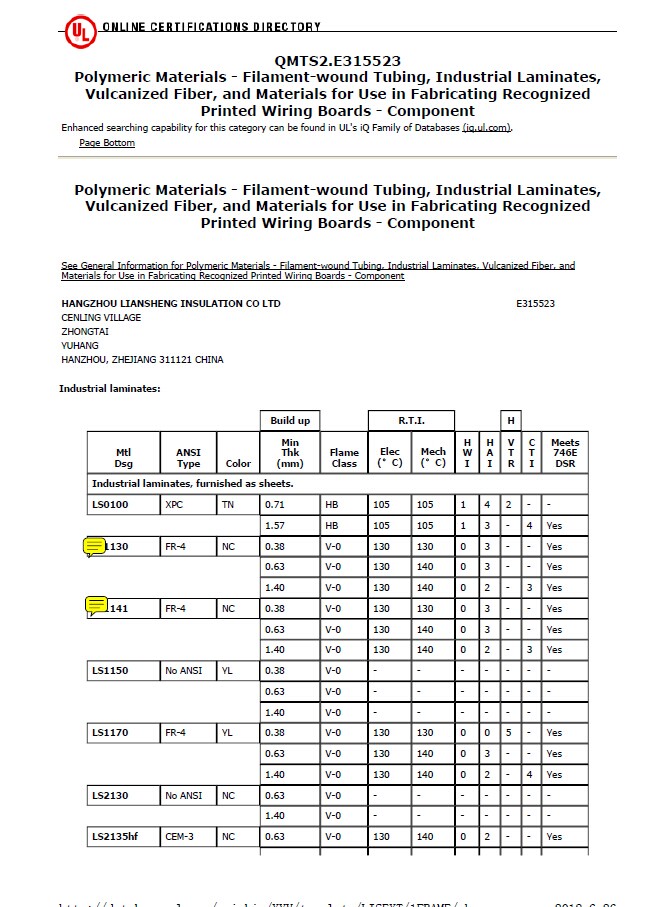

| 8. Certification | ISO9001,ISO14001,CQC,UL |
| 9.Technological requirements | For your choices |
FR4 G10 glass fiber epoxy sheet1.Temp:B. 2.Thickness:0.1mm-150mm 3.Impact strength:33 KJ/m2
1.Description: Fiberglass laminate sheet (FR4/G10) owns the character of high temperature resistance,high mechanical properties and dielectric properties,good heat resistance.
It is created from electrical glass cloth that impregnated with epoxy resin under high pressure and high heat.
2.Specifications:
1).Thickness:0.1mm-150mm
2).Size: 1020x1220mm, 1220x2440mm,1020x2040mm ;
3). Payment terms: T/T or L/C in sight
4). Delivery port: Ningbo , shanghai. qingdao,tianjing
5). Pacage: wooden pallet or according to customer requirements.
6).Delivery time:10-15 days.
7).Temperature grade:B glass(130 C).
3. Standard color: yellow, green ,black,red, white.We can also offer other colors according to the requirements of customers .
4. Applications: Fiberglass laminate sheet (FR4/G10) is widely used for electrical insulation as the components in the structure of electrical equipment,including the design of the switch computer printer circuit board drilling pad with governance,such as die(PCB test shelf),can be used in humid conditions and transformer oil situation.
