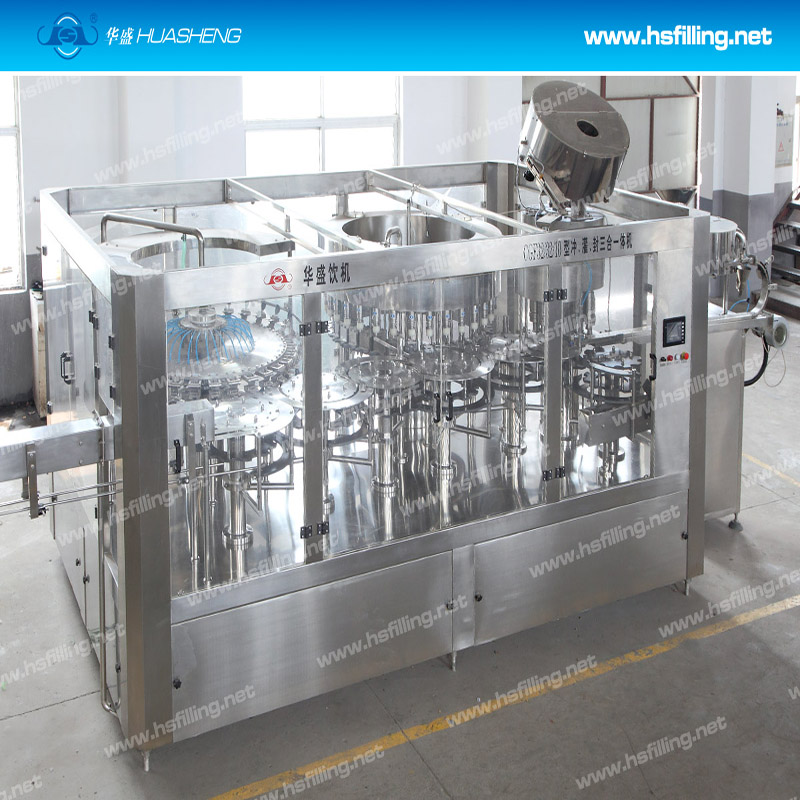

Rotary Carbonated Beverage Filling Mahcine / Bottled Soda Water Production Line
Quick Detail:
High Capacity
No Bottle No Filling
High Accuracy
Easy To Operate
Description:
liquid bottle filling machine and capping machine for Disinfectant
1. The Fill Machine construction in Stainless Steel #304.
2. Each rotary Lobe pump is driven by an individual motor for high accuracy liquid filling.
3. PLC combined with touch screen control system. Filling volume can be adjusted easily and separately.
4. No change parts are required for different bottle sizes.
5. Diving type filling system prevents spillage during filling.
6. No bottle, no filling safety device.
7. 20 job memory for easy recall.
8. You can choose A type, B type or C type for different filling range.
Applications:
This filling machine is designed for handle from water-thin to high viscosity product, especially for viscid and foaming product in chemical, food, beverage, pharmaceutical, and biotechnology industry.
Specifications:
Model |
Number of washing filling and capping |
Production capacity Bottle per hour(0.5L) |
Applicable bottle specifications (mm) |
Power(kw) |
Dimension(mm) |
DCGF14/12/5 |
14, 12, 5 |
2000-3000 |
0.25L-2L 50-108 mm H=170-340mm |
3.58 |
2100x1400x2500 |
DCGF18/18/6 |
18, 18, 6 |
4000-6000 |
4.68 |
2460x1720x2650 |
|
DCGF24/24/8 |
24, 24, 8 |
6000-8000 |
6.58 |
3100x2100x2650 |
|
DCGF32/32/8 |
32, 32, 8 |
10000-12000 |
9.68 |
3500x2500x2650 |
|
DCGF40/40/10 |
40, 40, 10 |
13000-15000 |
|
9.68 |
4600x1800x2650 |
DCGF50/50/12 |
50, 50, 12 |
16000-18000 |
10.8 |
5200x4500x3400 |
|
DCGF60/60/15 |
60, 60, 15 |
20000-22000 |
11.28 |
6500x4500x3400 |
