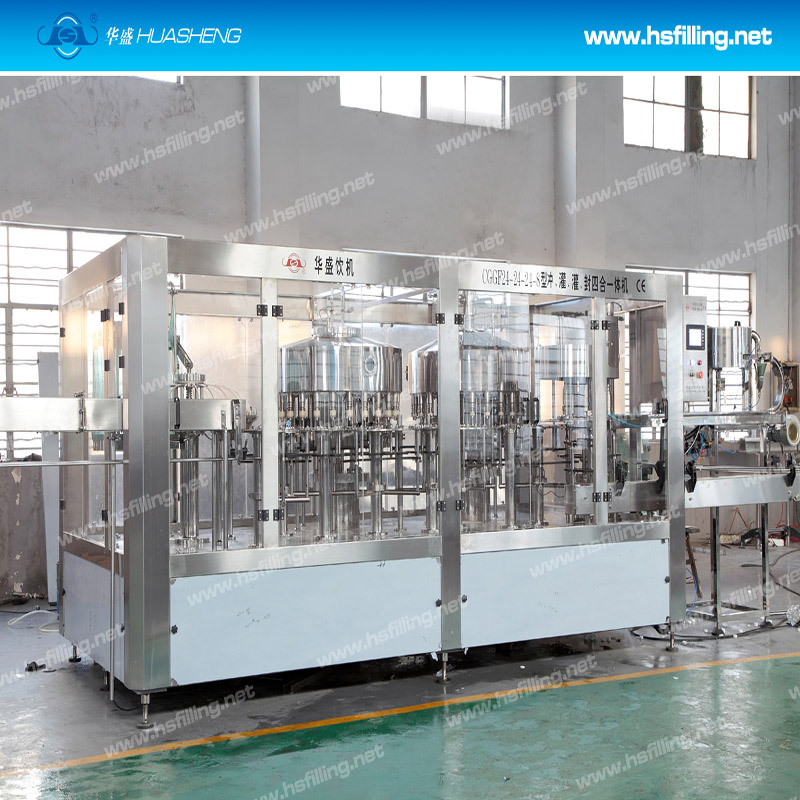

Automatic Mineral Water Bottling Machine , PLC control Water Production Line
Quick Detail:
1. Product: pure drinking water2. Suitable bottle: 0.25-2.5L3. Productivity: 2000-20000bph(@ 0.5L)4. Authentication: ISO,CE,SGS
Description:
Automatic Pure water bottling machine and production line machines is mainly used in the water filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.1. Direct connection technology between air conveyor and in-feeding starwheel is applied to replace in-feeding screw and conveying chain to ease bottle changing process with only to change few parts. Newly-designed bottle-separating grippers are assembled to starwheel.2. We adopts Neck-hanging technology in bottle transportation. Instead of traditional starwheel, we use neck-hanging gripper to make bottle-size-changing easily, without equipment height adjustment, only few parts need to be adjusted3. Specially-designed rinser grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution.4. High-speed filling valves with big flow volume are equipped with PLC control system.5. Splint of starwheel using twist descending way to simplify the process of bottle-size-changing. Only need to change arch board and starwheel, within ten minutes
Applications:
The Automatic Pure water bottling machine and production line machines is mainly used for washing, filling and capping PET bottle which can fill non-carbonated drinks. Such as mineral water, pure water, wine and so on. Bottle washing, filling and capping are achieved in one machine. The contact time is shorten between material and the outside. And improved the health conditions, production capacity and economic benefits.
Specifications:
Model |
Number of washing filling and capping |
Production capacityBottle per hour(0.5L) |
Applicable bottle specifications (mm) |
Power(kw) |
Dimension (mm) |
CGF14/12/5 |
14, 12, 5 |
2000-4000 |
0.2L-2L D=50-108 mmH=170-340mm |
3.58 |
2100x1400x2500 |
CGF18/18/6 |
18, 18, 6 |
5000-7000 |
4.68 |
2460x1720x2650 |
|
CGF24/24/8 |
24, 24, 8 |
8000-12000 |
6.58 |
3100x2100x2650 |
|
CGF32/32/8 |
32, 32, 8 |
12000-15000 |
9.68 |
3500x2500x2650 |
|
CGF40/40/10 |
40, 40, 10 |
15000-18000 |
9.68 |
4600x1800x2650 |
|
CGF50/50/12 |
50, 50, 12 |
20000-24000 |
10.8 |
5200x4500x3400 |
|
CGF60/60/15 |
60, 60, 15 |
25000-28000 |
11.28 |
6500x4500x3400 |
