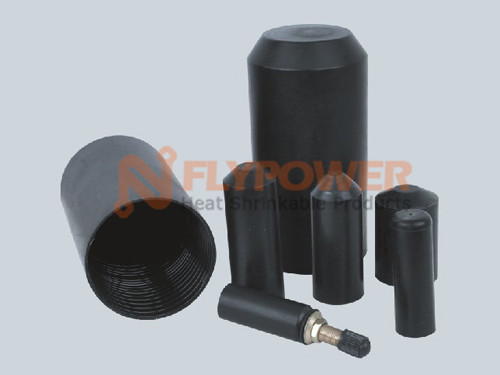

12mm Heat Shrinkable Cable End Caps, Wire End Caps, Electrical Cable Caps With Spiral Adhesive Coating

Product

12mm Heat Shrinkable Cable End Caps, Wire End Caps, Electrical Cable C...

Posting date : Sep 28, 2014

Click enlarge Image

Membership

Free Member Scince Aug 28, 2014

FOB Price

0.1 $

Min. Order Quantity

Supply Abillity

10,000,000

Port

shenzhen

Payment Terms

T/T

Package

cartons or bags

Keyword :

cable end caps

Category

MACHINERY & ELECTRICAL | Nuclear re | Compressio | Compressio

Contact

Judy

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

FLYPOWER

Model Number

FLYPOWER-BH-SEC

HS-CODE

8408-20

Package & Delivery Lead Time

Package

cartons or bags

Delivery Lead Time

3-10 days

Detailed Description

Product Advantage:

1.20 years producing

2. All passed CE, RoHS

3. With the excellent electrical and mechanical function, the product can be used in all kinds of conditions for a long time.

4. Offers an economical means of sealing the end of power cable with a completely watertight seal. The internal surface of the end cap has a layer of spiral coated hot melt adhesive, Which retains its flexible properties after recovery. BH-SEC is recommended for application both in open air and on underground power distribution cables with PVC, lead or XLPE sheaths.

Technical Data:

Property	Test Method	Typical Data
Operating temperature	IEC 216	-55℃to +110℃
Tensile strength	ASTM D 638	>14 MPa
Elongation at break	ASTM D 638	>400%
Density	ASTM D 792	1.05
Elongation at break after aging	150℃/168hrs	>300%
Dielectric strength	IEC 243	>15KV/mm
Volume resistance	IEC 93	>1014Ω.cm

Specification:

Model No.	As supplied (mm)		After recovered (mm)
Model No.	D(Min)	A(±10%)	D(Max.)	L(±10%)	Dw(±10%)
Standard length end caps
BH-SEC 40-12/4	12	15	4	40	2.6
BH-SEC 45-14/5	14	18	5	45	2.2
BH-SEC 55-20/6	20	25	6	55	2.8
BHSEC 68-25/8.5	25	30	8.5	68	2.8
BH-SEC 83-35/16	35	35	16	83	3.3
BH-SEC 83-40/16	40	35	16	83	3.3
BH-SEC 103-55/26	55	50	26	103	3.5
BH-SEC 120-75/36	75	55	36	120	4
BH-SEC 140-100/52	100	70	52	140	4
BH-SEC 150-120/60	120	70	60	150	4
BH-SEC 150-145/60	145	70	60	150	4
BH-SEC 150-160/82	160	70	80	150	4
Extended length end cap
BH-SEC 55L-14/5	14	30	5	55	2.2
BH-SEC 90L-40/15	40	40	15	90	3.3
BH-SEC 110L-42/15	42	40	15	110	3.3
BH-SEC 140L-55/23	55	70	23	140	3.8
BH-SEC 140L-62/23	62	70	23	140	3.8
BH-SEC 150L-75/36	75	70	36	150	4
BH-SEC 170L-75/36	75	70	36	170	4.2
BH-SEC 155L-100/47	100	65	47	155	4

* End cap with valve is available on request.
