China Leading Brand Fote High Efficiency Ore Flotation Tank
0 likes
China [CN] Brief Introduction of China Leading Brand Fote High Efficiency Ore Flotation Tank
Flotation machine or flotation separator is used to separate non-ferrous black metal (like copper, zinc, lead and gold) and nonmetal like fluorite and talc. Flotation machine is an indispensable machine in beneficiation plant and flotation cell or flotation cells are very important parts of flotation machine.
Fote is a flotation machine manufacturer with high reputation in China. The flotation separator price is quite reasonable and the quality is guaranteed.
Application and Advantages of China Leading Brand Fote High Efficiency Ore Flotation Tank
The flotation cell or the flotation machine is applied not only to separate and grade non-ferrous metals like copper, zinc, lead, nickel and gold, but also to make rough and fine separation of the ferrous metals. Flotation cells made by Fote, the Chinese famous flotation manufacturer, have the following advantages: high air absorption rate and low energy consumption. There are three functions of each tank: air suction, pulp suction and flotation separation. They form the flotation loop on their own without any accessory. The horizontal arrangement of the flotation cells make the whole process easy to adjust, and the reasonable recycling of the ore pulp will reduce the coarse sand sediment to the largest extent.
Structural features of China Leading Brand Fote High Efficiency Ore Flotation Tank
Fote`s machines are famous for the reasonable flotation price, so they get popular in the Chinese market. The flotation machine is made up of ore pulp bearing tank, mixing device, air inflation device, bubble formation device and electric motor.
1. The ore pulp bearing tank is made up of the tank welded with the steel plate and the gate welded by steel rod.
2. The mixing device made up of belt wheel, impellor and vertical shaft is used to stir the ore pulp in order to prevent the mineral sand from precipitating in the tank.
3. The air inflation device consists of many intake tubes which will blow air to the minerals and make them form bubble groups.
4. The bubble formation device mainly scrapes the foam on the tank surface out and the reducer of the device is driven by the motor and then drives the scrape blade to work.

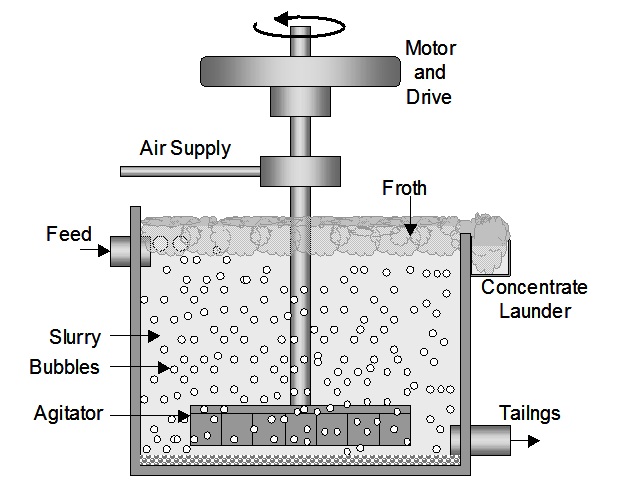

Working principle of China Leading Brand Fote High Efficiency Ore Flotation Tank
The flotation cell realizes the separating process based on different wet properties of the minerals. In general, we call the floating difficulty of the minerals the floatability. The floatation separation is completed by considering the floatability of the materials. In the modern floatation separation process, the application of the floatation agent is quite important, because the agent can change the floatability of the minerals after the minerals are handled by the agent. The minerals that need to float will attach to the air bubbles, thus realizing the ore dressing aim.
.jpg)
Maintenance of China Leading Brand Fote High Efficiency Ore Flotation Tank
1. The production ability and life expectancy of the machine depends on maintenance and the normal work of the main parts. So it is required that every 3-4 months, all parts of the machine should be checked. And for the new flotation machine, frequent check is needed.
2. Only skilled workers can check the machine.
3. In order to replace the parts in time and shorten the stop time, a full set of wearing parts should be prepared in the warehouse.
Technical data
| Model | Trough cubage (m³) | Inside dimensions (L×W×vH)(m) | Air suction amount (m³ /m² · min ) | Power(kw) | Motor model | Processing capacity (m³ /min ) | Single trough weight (kg) |
| BF-0.37 | 0.37 | 0.74×0.74×0.75 | 0.9~1.05 | 1.5 | Y90L-4 | 0.2~0.4 | 470 |
| BF-0.65 | 0.65 | 0.85×0.95×0.9 | 0.9~1.10 | 3.0 | Y132S-6 | 0.3~0.7 | 932 |
| BF-1.2 | 1.2 | 1.05×1.15×1.10 | 1.0~1.10 | 5.54.0 | Y132M2-6Y132M1-6 | 0.6~1.2 | 1370 |
| BF-2.0 | 2.0 | 1.40×1.45×1.12 | 1.0~1.10 | 7.5 | Y160M-6 | 1.0~2.0 | 1750 |
| BF-2.8 | 2.8 | 1.65×1.65×1.15 | 0.9~1.10 | 11 | Y180L-8 | 1.4~3.0 | 2130 |
| BF-4.0 | 4.0 | 1.9×2.0×1.2 | 0.9~1.10 | 15 | Y200L-8 | 2~4 | 2585 |
| BF-6.0 | 6.0 | 2.2×2.35×1.3 | 0.9~1.10 | 18.5 | Y225S-8 | 3~6 | 3300 |
| BF-8.0 | 8.0 | 2.25×2.85×1.4 | 0.9~1.10 | 2230 | Y225M-8Y250M-8 | 4~8 | 4130 |
| BF-10 | 10 | 2.25×2.85×1.7 | 0.9~1.10 | 2230 | Y225M-8Y250M-8 | 5~10 | 4660 |
| BF-16 | 16 | 2.85×3.8×1.7 | 0.9~1.10 | 3745 | Y280S-8Y280M-8 | 8~16 | 8320 |
| BF-20 | 20 | 2.85×3.8×2.0 | 0.9~1.10 | 3745 | Y280S-8Y280M-8 | 10~20 | 8670 |
| BF-24 | 24 | 3.15×4.15×2.0 | 0.9~1.10 | 45 | Y280M-8 | 12~24 | 8970 |
