No. 1 Brand Henan Fote Vibrating Screen for Screening Ore
0 likes
China [CN] Introduction of No. 1 Brand Henan Fote Vibrating Screen for Screening Ore
The trace of the movement of circular vibrating screen is similar to the circle and that is the origin of its name. Circular vibrating screen is a new efficient vibrating screen with multiple layers.
Circular vibrating screen adopts the barrel type eccentric shaft vibration exciter and partial block help to adjust amplitude, material screening length, screening specifications It is mainly used in coal preparation, mineral processing, building materials, electricity and chemical industries.
Fote is a circular motion vibrating screen manufacturer with high reputation. China round vibrating screen price is quite reasonable. Fote circular vibrating is not only cheap but also has high quality. We are looking forward to our cooperation.
Unique Characteristics of No. 1 Brand Henan Fote Vibrating Screen for Screening Ore
1. High screening efficiency and productivity.
2. Simple structure, easy removable screen surface.
3. Energy saving.
4. Easy maintenance;
5. Flexible connection, smooth operation;
6. Low noise.
Performance characteristics of No. 1 Brand Henan Fote Vibrating Screen for Screening Ore
1. Circular vibrating screen adopts cylinder postures eccentric shaft vibration Exciter and partial block regulating amplitude, which is convenient to use and maintain.
2. Circular vibrating screen adopts spring steel woven mesh or perforated sieve-plate, which is of long service life and not easy to be blocked
.jpg)
3. Circular vibrating screen uses rubber vibration spring, which has long service life, low noise and smooth resonance region.
The circular vibrating screen can be divided into three types, namely the YK series circular vibrating screen, YKR series circular vibrating screen and YA series circular vibrating screen.
Working Principle of No. 1 Brand Henan Fote Vibrating Screen for Screening Ore

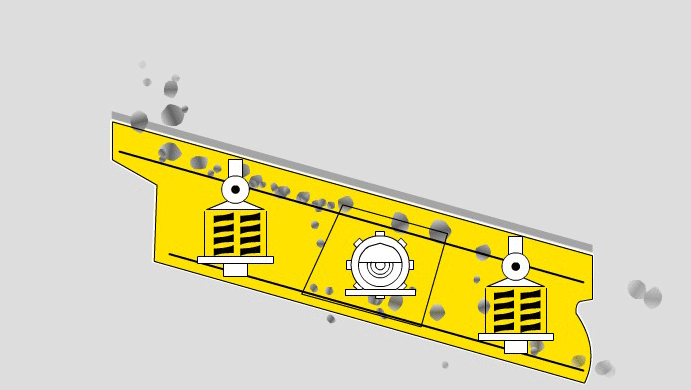

Circular vibrating screen mainly consists of screening box, screening net, exciter and damper spring. The exciter is installed on the side plate of the screening box and driven to rotate by the electric motor through V-shaped belt to produce centrifugal inertia force which will force the screening box to vibrate. When there are no particular requirements, YA and 2YA are textile screen and YAH is punching screen, and all kinds of screens can satisfy the customers` requirements.
Parameter
| Model | Screen Layers | Screen area(㎡) | Screen size(mm) | Max. feeding size(mm) | Processing capacity(m³/h) | Vibrating power(r/min) | Double-amplitude(mm) | Motor power(kw) | Dip angle of screen(°) | Screen surface type(mm) | Total weight(kg) | Dimension(L×W×H)(mm) |
| 2YK1225 | 2 | 6 | 4-50 | 400 | 8-60 | 800-970 | 8 | 5.5 | 20 | 1200×2500 | 3500 | 2930×1860 ×870 |
| 3YK1225 | 3 | 9 | 4-50 | 400 | 10-70 | 800-970 | 8 | 5.5 | 20 | 1200×2500 | 3850 | 3070×1860 ×1210 |
| 2YK1230 | 2 | 7.2 | 4-50 | 400 | 12-78 | 800-970 | 8 | 7.5 | 20 | 1200×3000 | 4200 | 3430×1860 ×870 |
| 3YK1230 | 3 | 10.8 | 4-50 | 400 | 13-80 | 800-970 | 8 | 7.5 | 20 | 1200×3700 | 4600 | 3570×1860 ×1210 |
| 2YK1237 | 2 | 8.88 | 4-50 | 400 | 15-86 | 800-970 | 8 | 7.5 | 20 | 1200×3700 | 4600 | 4050×1860 ×870 |
| 3YK1237 | 3 | 13.22 | 4-50 | 400 | 16-90 | 800-970 | 8 | 7.5 | 20 | 1500×3500 | 5200 | 4270×1860 ×1210 |
| 2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 800-970 | 8 | 11 | 20 | 1500×3500 | 5890 | 4120×2210 ×1230 |
| 3YK1535 | 3 | 15.75 | 5-50 | 400 | 21-125 | 800-970 | 8 | 11 | 20 | 1500×3500 | 6700 | 4360×2210 ×1610 |
| 2YK1545 | 2 | 13.5 | 5-50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500×4500 | 6330 | 5120×2210 ×1230 |
| 3YK1545 | 3 | 20.25 | 5-50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500×4500 | 6800 | 5360×2210 ×1610 |
| 4YK1545 | 4 | 27 | 5-50 | 400 | 22-155 | 800-970 | 8 | 18.5 | 20 | 1500×4500 | 7800 | 5930×2210 ×2060 |
| 2YK1548 | 2 | 14.4 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 15 | 20 | 1500×4800 | 6980 | 5420×2210 ×1230 |
| 3YK1548 | 3 | 21.6 | 5-50 | 400 | 22.5-162 | 800-970 | 11 | 15 | 20 | 1500×4800 | 7700 | 5660×2210 ×1610 |
| 4YK1548 | 4 | 28.8 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 18.5 | 20 | 1500×4800 | 8700 | 6230×2210 ×2060 |
| 2YK1848 | 2 | 17.28 | 5-80 | 400 | 25-206 | 750 | 8 | 15 | 20 | 1800×4800 | 9080 | 5420×2550 ×1420 |
| 3YK1848 | 3 | 25.92 | 5-80 | 400 | 32-276 | 750 | 8 | 18.5 | 20 | 1800×4800 | 9600 | 5660×2550 ×1780 |
| 4YK1848 | 4 | 34.54 | 5-80 | 400 | 32-285 | 750 | 8 | 22 | 20 | 1800×4800 | 11100 | 6290×2550 ×2160 |
| 2YK1854 | 2 | 19.44 | 5-80 | 400 | 32-312 | 800-970 | 8 | 18.5 | 20 | 1800×5400 | 10150 | 5960×2550 ×1420 |
| 3YK1854 | 3 | 29.16 | 5-80 | 400 | 32-312 | 800-970 | 8 | 22 | 20 | 1800×5400 | 10840 | 6260×2550 ×1780 |
| 4YK1854 | 4 | 38.88 | 5-80 | 400 | 32-336 | 800-970 | 8 | 30 | 20 | 1800×5400 | 12840 | 6830×2550 ×2160 |
| 2YK2160 | 2 | 25.2 | 5-100 | 400 | 50-475 | 970 | 8 | 30 | 20 | 2100×2600 | 11780 | 6720×2840 ×1530 |
| 3YK2160 | 3 | 37.8 | 5-100 | 400 | 50-475 | 970 | 8 | 30 | 20 | 2100×2600 | 12800 | 7030×2840 ×1910 |
| 4YK2160 | 4 | 50.4 | 5-100 | 400 | 50-497 | 970 | 8 | 37 | 20 | 2100×2600 | 14800 | 7300×2840 ×2380 |
| 2YK2460 | 2 | 28.8 | 5-100 | 400 | 65-550 | 970 | 8 | 37 | 20 | 2400×6000 | 15600 | 7020×3140 ×1530 |
| 3YK2460 | 3 | 43.2 | 5-100 | 400 | 70-620 | 970 | 8 | 37 | 20 | 2400×6000 | 17600 | 7300×3140 ×1910 |
| 4YK2460 | 4 | 57.6 | 5-100 | 400 | 80-680 | 970 | 8 | 45 | 20 | 2400×6000 | 19600 | 7600×3140 ×2380 |
| 2YK3072 | 2 | 14.3 | 5-100 | 400 | 200-700 | 750 | 8 | 22×2 | 20 | 3000×7200 | 23600 | 7200×4520 ×4184 |
| 3YK3072 | 3 | 21.4 | 5-100 | 400 | 230-800 | 750 | 8 | 22×2 | 20 | 3000×7200 | 25500 | 7200×4520 ×4684 |
