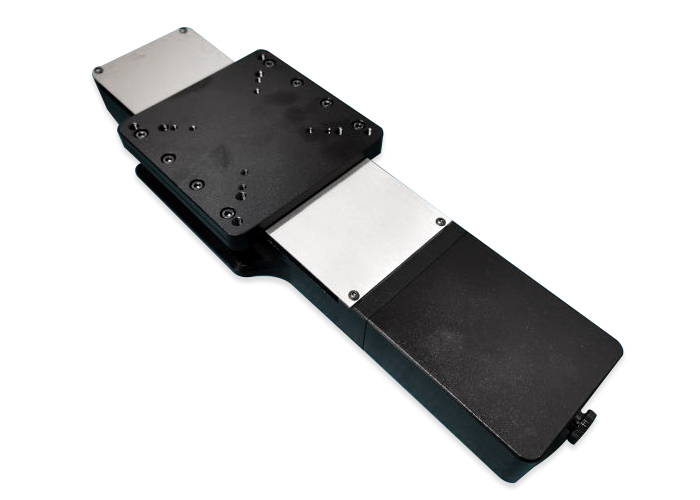

Series Aviation Aluminum Motorized Linear Stage Displacement Slide Platform
Posting date : Sep 23, 2024
Membership
Free Member Scince Sep 23, 2024
FOB Price
****
Min. Order Quantity
1
Supply Abillity
**
Port
China
Payment Terms
paypal
Package
****
Keyword :
Category
Contact
Rebecca Zheng
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
PDV
HS-CODE
-
Package & Delivery Lead Time
Package
****
Detailed Description

Specification:

Model  Number

PP160-100(50)

PP160-100(100)

PP160-120(100)

PP160-120(200)

Platform  Size (mm)

100*100

120*120

Travel

50mm

100mm

100mm

200mm

Screw  lead

φ8 Lead  2

Main Material

High  strength aviation aluminum material (2A12)

Surface  Treatment

Black  anodizing

Net Weight

1.7kg

1.9kg

2.2kg

2.7kg

Center  Load

30kg

8  subdivision resolution

0.625μm

Speed

20mm/s

Unidirectional  positioning accuracy

10μm

Repetitive  positioning accuracy

±2μm

Backlash

10μm

Parallelism

20μm

Parallelism  of motion

10μm

Straightness

10μm

Surface  runout

8μm

Motor  type

Double  output shaft 28 stepper motor

Motor  step angle

1.8°

Rated  working current

1A

supply  voltage

24V±10%

connector

DB9  pin connector

Zero  position switch

Photoelectric  sensor
