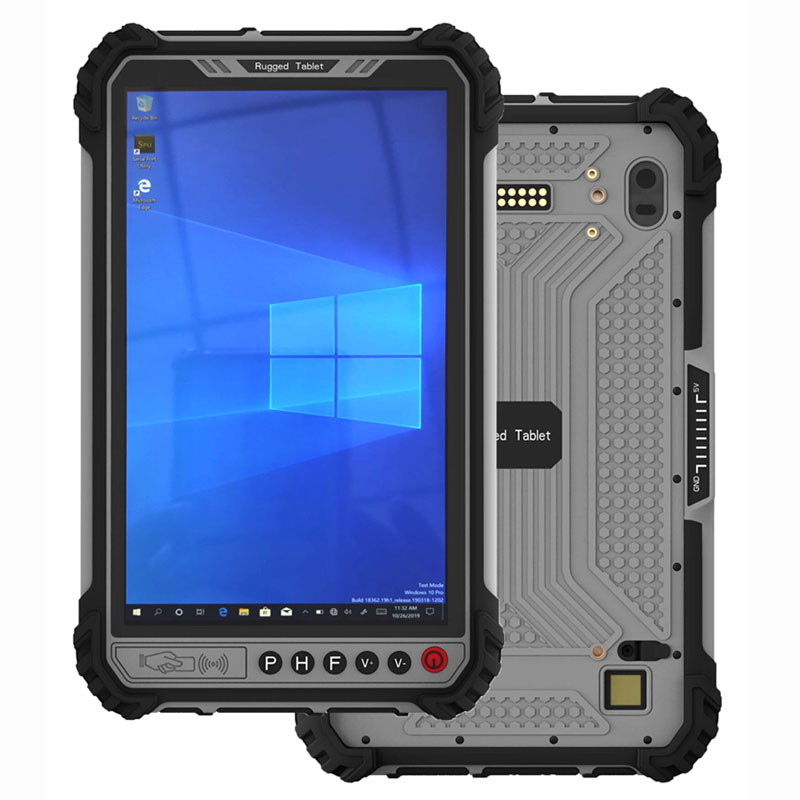

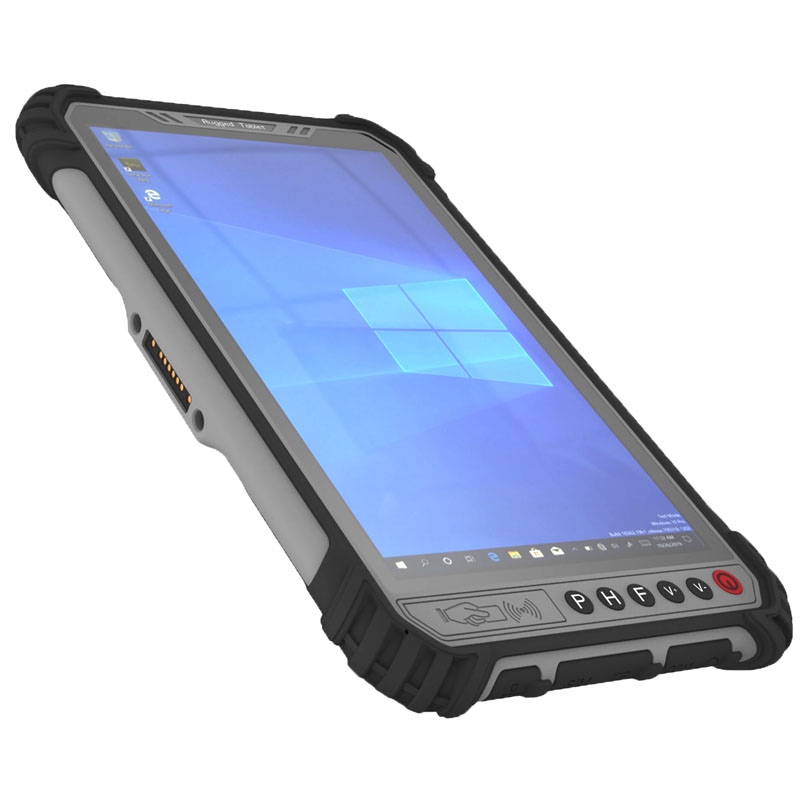

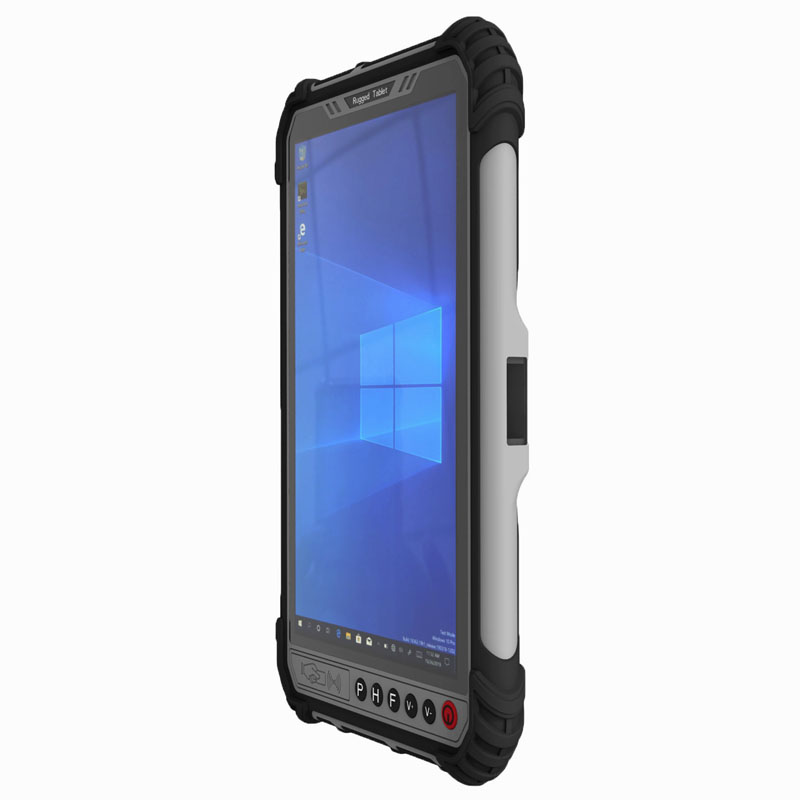

Highton cheapest factory 8 inch win10 4G TDD/FDD LTE NFC rugged tablets with optional 2D Barcode scanner and Fingerprint scanner
Model No:HR845
Specification:
CPU |
Intel Cherry Trail Z8350 1.44Ghz-1.92GHz |
Operation System |
Original Windows 10 Home or pro OS |
Display & Touch Screen |
8 inch Capacitive Multi-touch FHD IPS screen,1920*1200 Pixels;brightness about 400nits,normal sunlight readable |
Two Cameras |
Front 2.0M camera, Back 5.0M camera |
Memory & Storage |
4GB ram DDR+ 64GB ROM |
Wireless network |
802.11 a/b/g/n/ac wireless (2.4G+5.8Ghz Dual-band wifi) and Blutooth V4.0 |
Battery |
Built-in 3.8 / 7800mAh Lithium Battery |
Physical Buttons |
power,volume -/+, P,H,F buttons |

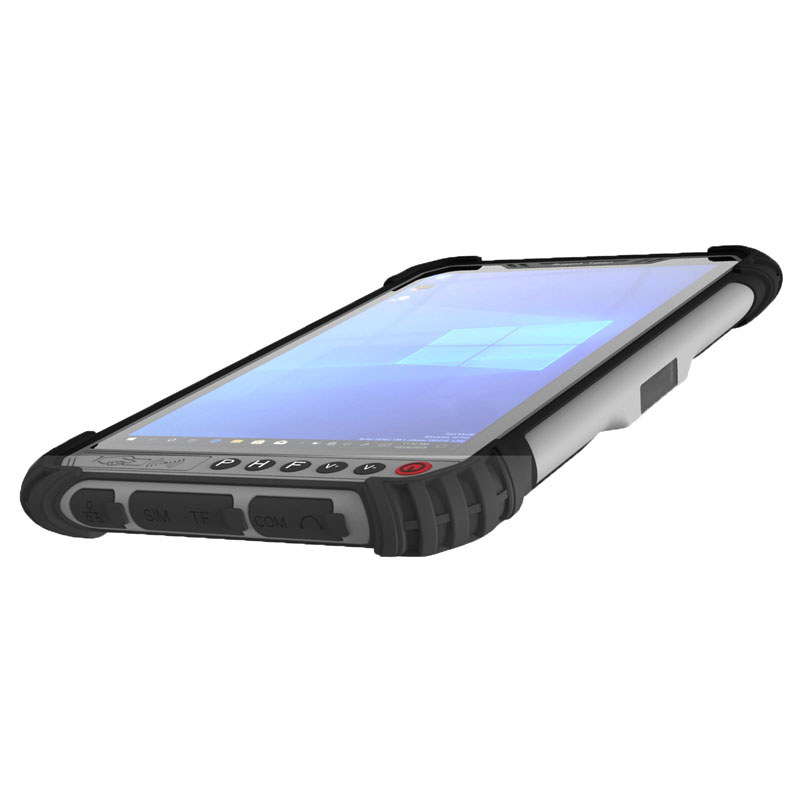

I/O Ports |

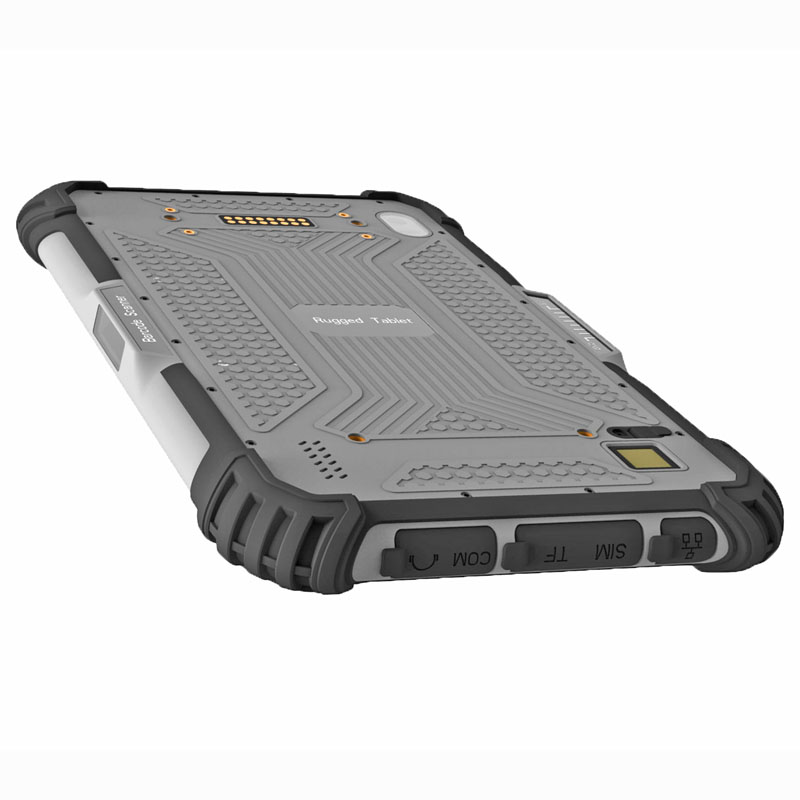

1*Micro USB,1*USB2.0,1*USB3.0,1*micro HDM-I Port,1*DC port,1*RJ45 Lan ethernet port(10M/100M/1000M),1*RS232 Com port,1*earphone jack,1*Sim Card Slot,1*TF card slot,1*16-pin POGO-PIN port(5V/3.3V,support 1*USB2.0+1*UART TTL),1*8-pin POGO-PIN port(5V/3.3V,support 1*USB2.0+1*UART TTL+1*charge) |
Rugged Durability |
Waterproof and dustproof rate:IP67 design; Ruggedness:comply with 1.0 Meter dropproof |
4G Network |
Support GSM: B8/B5/B3/B2=800/900/1800/1900Mhz,3G WCDMA: B1/B2/B4/B5/B8=2100/1900/1700/850/900MHZ; 4G TDD LTE:B40,4G FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28=2100/1900/1800/1700/850/2600/900/800MHZ |
Navigation |
GPS+Beidou+Glonass,Capture sensitivity:-163 dBm;Cold start:35seconds,Hot start:1second |
Front NFC |
Support ISO/IEC 14443A/14443B/15693/mifare/felica,readable distance: about 3-5cm |

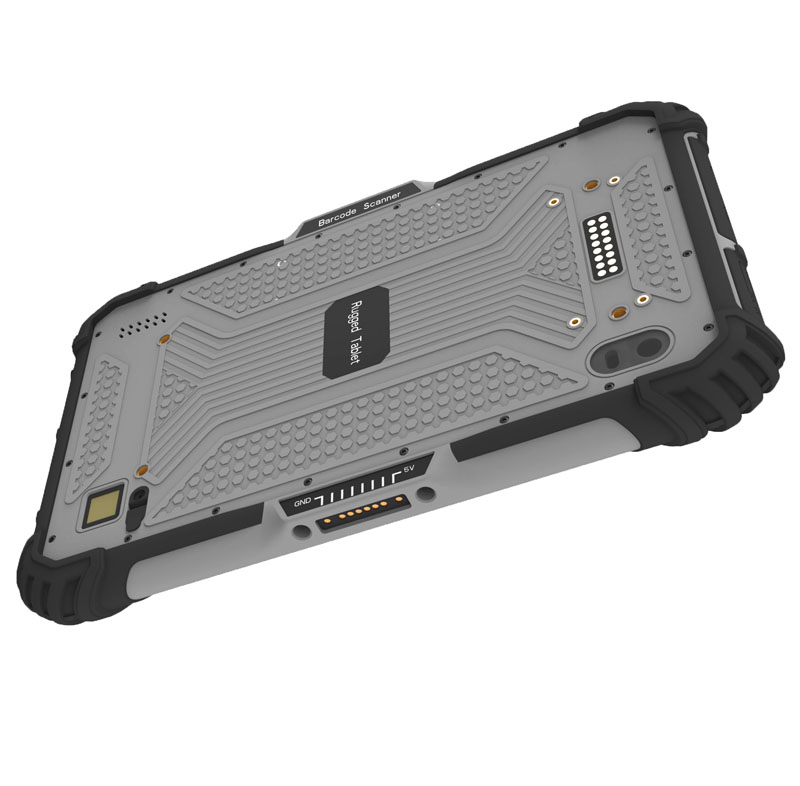

2D Barcode Scanner |
Newland N1 2D barcode scanner:support 1D codes and 2D codes: PDF417,QR Code,Data Matrix, is optional |

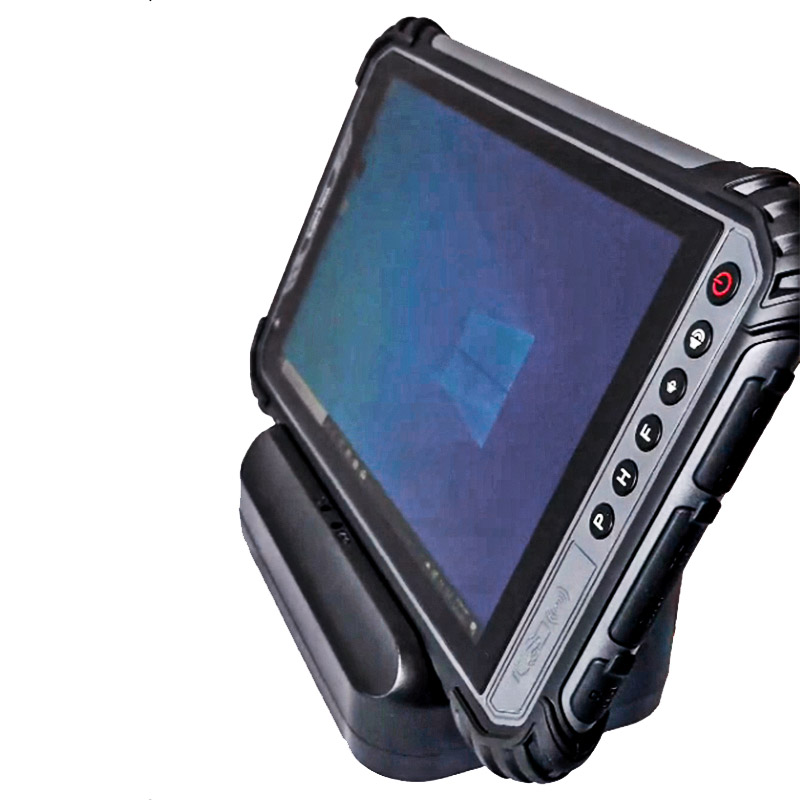

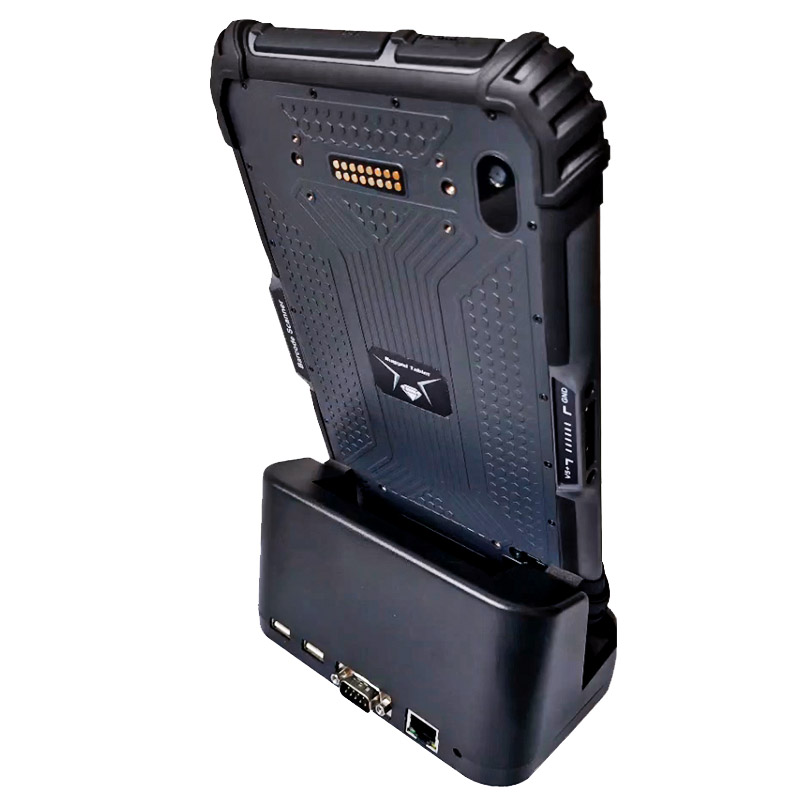

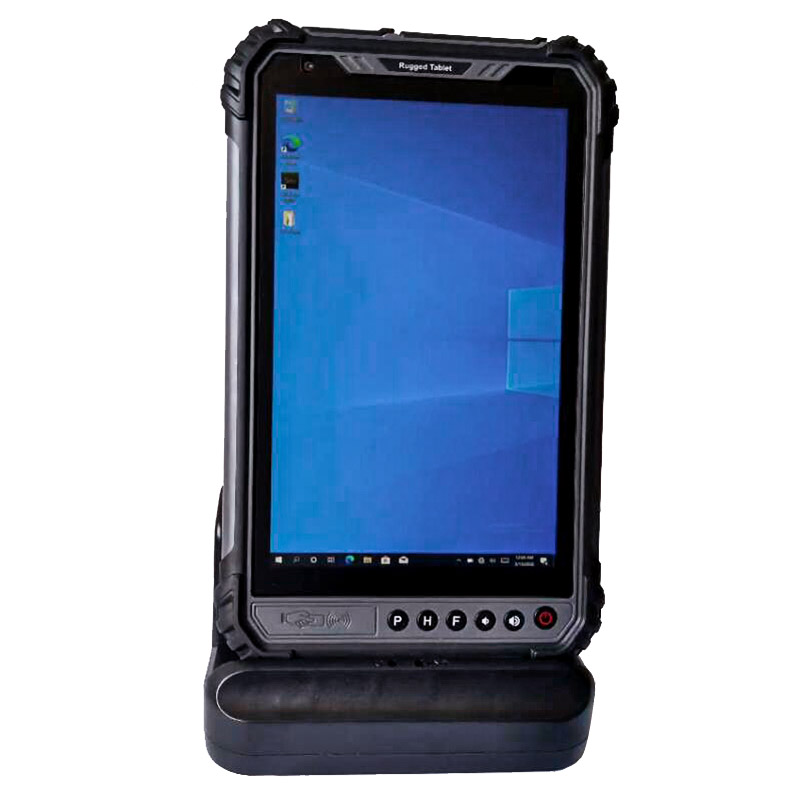

Docking Station |
1*RJ45 Ethernet Port +2*USB2.0+ 1*RS232+1*DC port docking is optional |
Fingerprint scanner |
Fingerprint module 1020A,Fingerprint capacity:150pcs,Identification time:<1s,or industial big fingerprint module, is optional |
UHF RFID |
902-928Mhz (default) or 865-868MHZ,Output power range:18-26dBm,sensitivity <-70dBm; reading distance: 1.0 meter or 3-4 meters, is optional |
Vehicel charger or holder |
is optional |

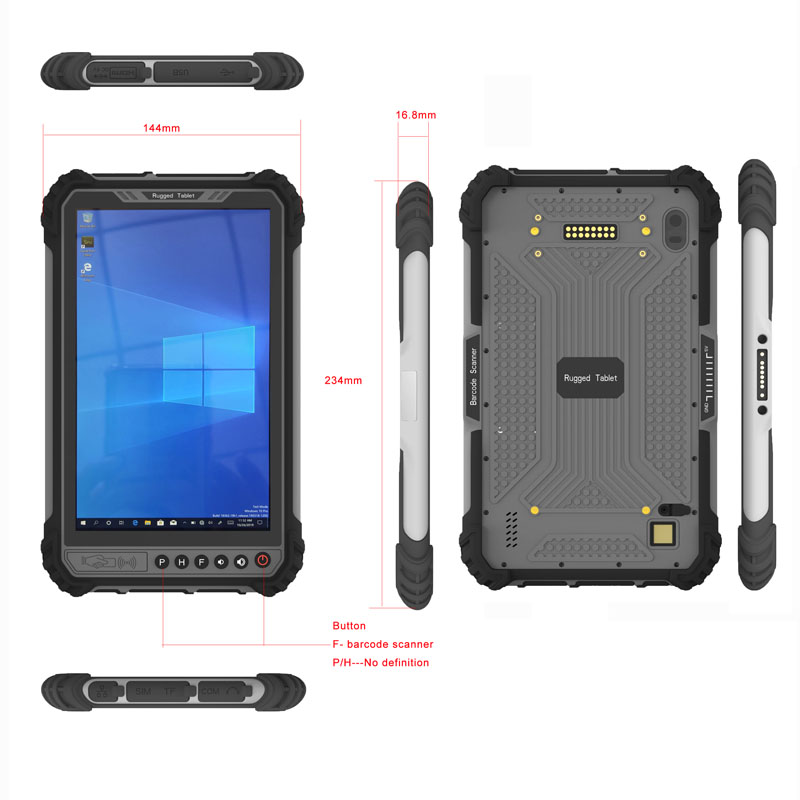

Dimention |
234*144*16.8mm |
1.CPU: Intel Cherry Trail Z8350 1.44Ghz-1.92GHz
2.Operation System: Original Windows 10 Home or pro OS;
3.Display & Touch Screen: 8 inch Capacitive Multi-touch FHD IPS screen,1920*1200 Pixels;brightness about 400nits,normal sunlight readable;
4.Two Cameras: Front 2.0M camera, Back 5.0M camera;
5.Memory & Storage: 4GB ram DDR+ 64GB ROM;
6.Wireless network: 802.11 a/b/g/n/ac wireless (2.4G+5.8Ghz Dual-band wifi) and Blutooth V4.0;
7.Battery: Built-in 3.8 / 7800mAh Lithium Battery;
8.Physical Buttons: power,volume -/+, P,H,F buttons;
9.I/O Ports: 1*Micro USB,1*USB2.0,1*USB3.0,1*micro HDM-I Port,1*DC port,1*RJ45 Lan ethernet port(10M/100M/1000M),1*RS232 Com port,1*earphone jack,1*Sim Card Slot,1*TF card slot,1*16-pin POGO-PIN port(5V/3.3V,support 1*USB2.0+1*UART TTL),1*8-pin POGO-PIN port(5V/3.3V,support 1*USB2.0+1*UART TTL+1*charge);
10.Rugged Durability: Waterproof and dustproof rate:IP67 design; Ruggedness:comply with 1.0 Meter dropproof.
11.4G Network: Support GSM: B8/B5/B3/B2=800/900/1800/1900Mhz,3G WCDMA: B1/B2/B4/B5/B8=2100/1900/1700/850/900MHZ; 4G TDD LTE:B40,4G FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28=2100/1900/1800/1700/850/2600/900/800MHZ;
12.Navigation: GPS+Beidou+Glonass,Capture sensitivity:-163 dBm;Cold start:35seconds,Hot start:1second;
13.Front NFC: Support ISO/IEC 14443A/14443B/15693/mifare/felica,readable distance: about 3-5cm;
14.2D Barcode Scanner: Newland N1 2D barcode scanner:support 1D codes and 2D codes: PDF417,QR Code,Data Matrix, is optional;
15.Docking Station: 1*RJ45 Ethernet Port +2*USB2.0+ 1*RS232+1*DC port docking is optional.
16.Fingerprint scanner: Fingerprint module 1020A,Fingerprint capacity:150pcs,Identification time:<1s,or industial big fingerprint module, is optional;
17.UHF RFID: 902-928Mhz (default) or 865-868MHZ,Output power range:18-26dBm,sensitivity <-70dBm; reading distance: 1.0 meter or 3-4 meters, is optional;










18.Vehicel charger or holder: is optional;
19.Dimention: 234*144*16.8mm.
