Online AOI Machine S810

  • Inspection Component: 01005 chip
  • PCB size::50×70mm-510×460mm
  • Dimension:1000mm×960mm×1600mm
  • Weight: 710kg
  • Product description: Online AOI Machine S810, Inspection Component: 01005 chip, PCB size::50×70mm-510×460mm, Dimension:1000mm×960mm×1600mm, Weight: 710kg
Online AOI Machine S810
AOI Specification:

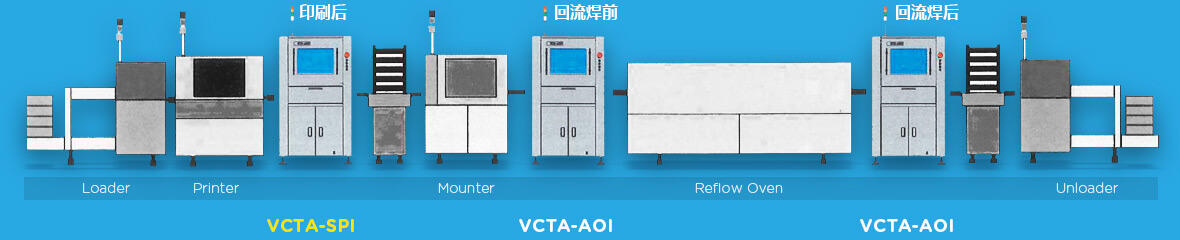

Flexible / versatile AOIDifferent models are suitable for the production of multiple quality control positions in the line, including 2D solder paste quality inspection after solder paste printing, component measurement before reflow soldering, PCBA process quality inspection after reflow soldering, and hand-insertion wave soldering inspection
New light source designThe multi-angle multi-angle light source design scheme is used to sample the detailed features of the detected object by different angles of illumination, and the assembly and welding information of the component are accurately obtained, and the defect is effectively eliminated.

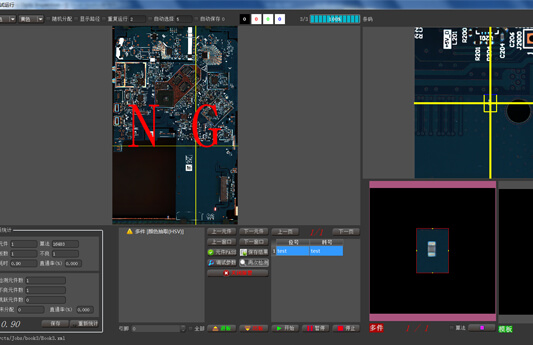

Comprehensive application of multiple software detection algorithmsIt integrates more than 30 kinds of software detection algorithms, integrates a variety of vector information analysis and calculation, and adopts a tree form program editing architecture. It can define various inspection items according to the detection requirements, and can accurately cope with the poor appearance analysis of various electronic assembly and welding processes.

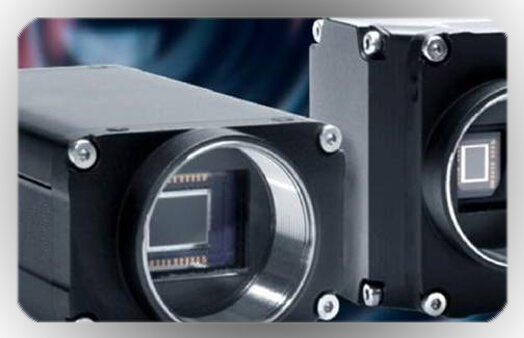

Visual acquisition systemThe vision system is the eye of AOI, and the S810 uses a 5 megapixel industrial camera imported from Germany, which has a very high color reproduction effect.With high-resolution, high-definition telecentric lens, the product has high recognition accuracy and provides high-definition image output for AOI equipment.

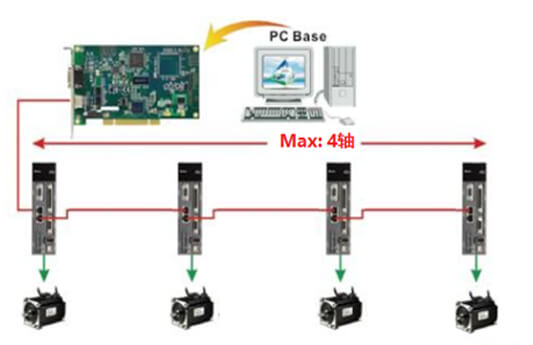

Motion Control SystemMulti-axis coordinated control of multiple servo motors using high-performance DSP and large-scale programmable devices with 4-axis motion control card with independent intellectual property rights

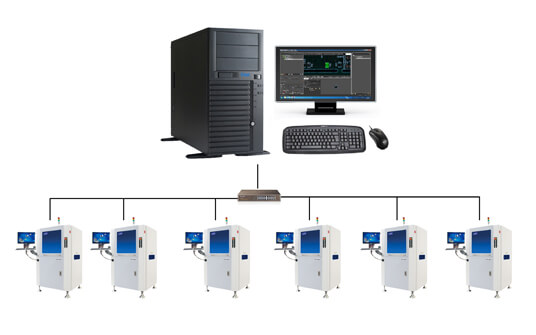

central control systemCentral server mode, which can collect test information of all machines through the central control server, which is convenient for comprehensive management of production. Only one operator is needed for multiple devices.

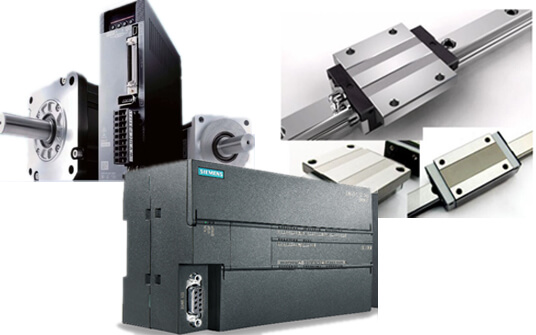

Main components of the equipmentServo control system: All imported servos and motors imported from Japan to ensure high-precision transmission control.Screw and slide rail: Adopt high-precision ball screw and slide rail imported from Japan.PLC: Imported from Germany.Pneumatic control system: imported pneumatic control accessories imported from Japan and Taiwan.
The whole board matches the multi-piece detection function at any position.Imported industrial camera with high frame rate, combined with industrial telecentric lens, adopts high-speed dynamic image acquisition, can complete hundreds of image information collection tasks per second, combined with the whole board matching algorithm in software, can be used anywhere on the board. Accurate detection of multiple pieces, foreign objects, scratches, etc.

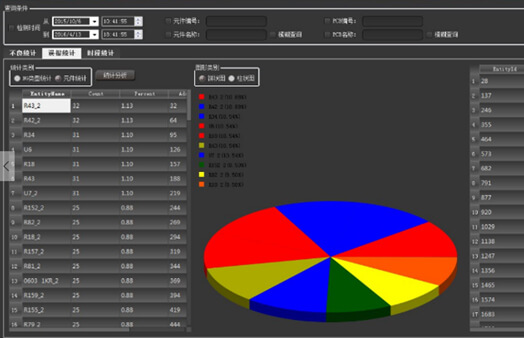

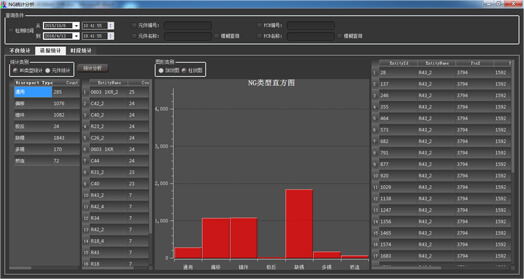

Comprehensive and detailed SPC softwareThe SPC database can perform detailed analysis of the daily test data for pie analysis, alignment analysis, column analysis, trend analysis, etc.SPC can feedback the information of the production line in real time, so that engineers and technicians can respond as soon as possible, find the root cause of the problem and solve it as soon as possible.
Inspection System & Optical System
Inspection Object
Skew / Tombstone / Wrong part / Missing / Overturning / Damaged /Cold joint / insufficient solder / Excess solder
Inspection Component
0201 chip , IC pitch 0.3mm, wave soldering point
Inspection Method
Color image comparison, OCR, IC Short Analysis, Graphics Similarities Analysis, Color Analysis, Gray Analysis
Camera
Color CCD (2M) , Resolution 15um, FOV 24*18mm, Speed :2000 mm2/s
Light Source
RGB cascade multi-angle LED combination lighting, high brightness, 2M pixels tele-centric lens, DOV:8mm
Software & Computer
Inspection capability
120 points/sec ; programming time : 1-1.5 hr/1000 components, NG inspection rate >99%False reject rate : 005 - 3.0% (repeatability <3pcs) , False accept rate <0.01%
Mark Recognition
2 points, support multi-board multi-mark points, support bad mark ; Process speed 0.5sec/pcs
Computer
Dual core 2.7G, DDR II 2.0G, 500G hard disk, 22" wide screen LCD
Mechanical System
PCB Thickness
0.3 - 5.0 (PCB curvature?5mm)
PCB Height
Top: 30mm, Bottom 35mm (can be customized)
Driving Method
AC Servo Motor + ball screw rod + linear guide rail
Motion Speed
Max 700mm/s
PCB Size
510*460mm, Auto-width adjustment
Conveyor Height
900± 20mm
Power
220V/50Hz, 650W,UPS 1000 VA uninterruptible power supply
Compressed Air
Max 0.3MPa
Dimension
1000mm×960mm×1600mm (alarm lamp height not included) ; alarm lamp height: 550mm
Weight
710kg
Keywords:
Flason Electronic Co.,ltd provide a full smt assembly line solutions, including Lead free reflow ovenwave soldering machineSMT pick and place machinesmt stencil printer,PCB conveyor manufacturer, PCB unloaderchip mounterSMT AOI machineSMT SPI machine,SMT X-Ray machineSMT assembly line equipmentPCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
