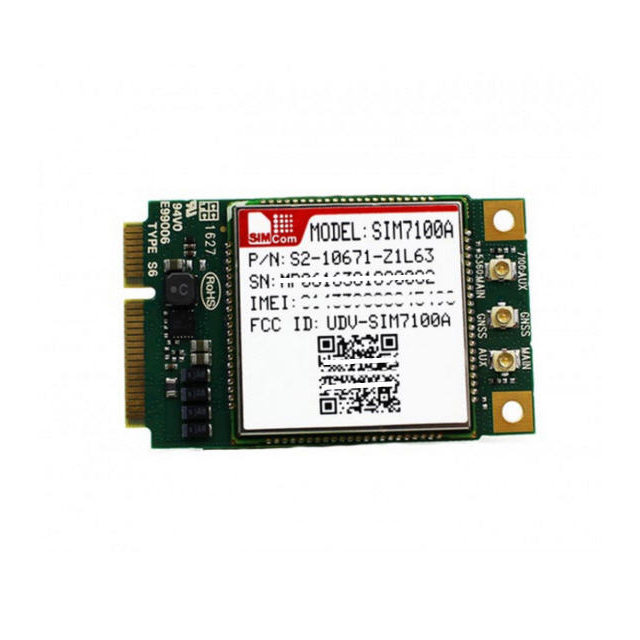

SIMCOM 4G LTE GSM Module SIMCOM SIM7100A PCIE

SIMCom presents an ultra compact and reliable wireless module SIM7100A which is based on Qualcomm MDM9215 multiple-mode LTE platform. SIM7100A is a complete multi-band LTE /WCDMA/GNSS module designed with very powerful processors integrating application core:CortexTM A5(550MHz),three QDSP6 cores (Up to 500Mhz), allowing customer to benefit from small dimensions and cost-effective product solutions.

 It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capability like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application.

General features

• Quad-Band LTE-FDD B2/B4/B5/B17

• Dual-Band UMTS/HSDPA/HSPA+ B2/B5

• Control Via AT Commands or Gobi API

• Supply voltage range: 3.4V~ 4.2V

• Operation temperature: -40℃ to +85℃

• Dimension : 50.95 * 31* 4.95 mm

• Weight : 5.8g

• LTE-FDD/Rel-9 Cat3

• HSPA+ DC-HSPA+,Rel-10 HSPA+

• GNSS gpsOne Gen 8B;standalone;assisted,XTRA

Specifications for Data transfer

• LTE

  - Uplink up to 50Mbps,

  - Downlink up to 100Mbps



• HSPA+

  - Uplink up to 5.76 Mbps,

  - Downlink up to 42 Mbps



• UMTS

  - Uplink/Downlink up to 384Kbps



• CSD

  - WCDMA data rate 57.6Kbps

  - WCDMA 64kbps CSD for Video call

Other features

• USB Driver for Microsoft Windows 2000/XP/Vista/7/8

• USB Driver for Windows CE/Mobile

• USB Driver for Linux /Android

• RIL supporting for Android/Windows CE/Mobile

• Automatic installation

• Linux API SDK

• Firmware update via USB

• TCP/IP/IPV4/V6 Multi-PDP,MT PDP

• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS/MMS

• DTMF

• Gobi SDK to the Win7/Win8/Linux

• MBIM to Win8

• Source code of the PC manager of the device for reference

Interfaces

• USB2.0

• UART

• SIM card

• SPI

• I2C

• Constant current sink

• GPIO

• ADC

• PCM *

• SDIO
