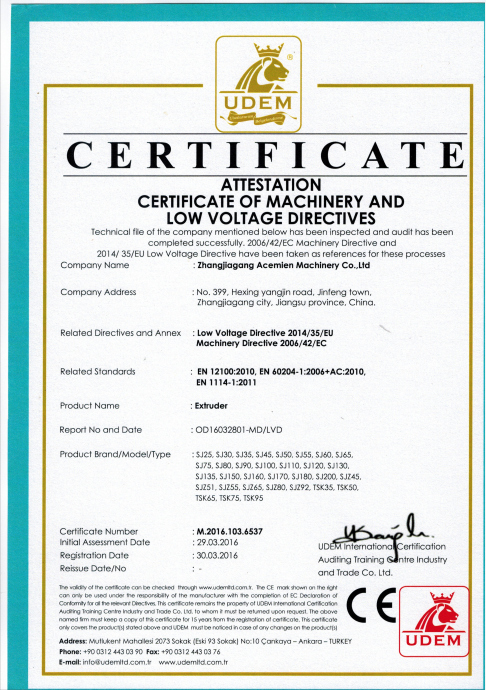

Type of Certification
CE
Reference no.
M.2016.103.6537
Name.
Extruder
Start Date (validity period)
2016-03-30
End Date (validity period)
0000-00-00

Detailed Description

880 / 1040 mm Width PVC Roof Tile Making Machine For Awnings / Antique Buildings / PVC Tile Extruder

Round / Trapezoidal Shape Plastic Roof Tile Making Machine / Plastic Extrusion Line For Wave Tiles

1. Product advantage:This tile is the best replacement to conventional asbestos, metal G.I. sheets and PVC sheets considering the heat insulation, sound insulation, water resistance, chemical and alkali resistance, corrosion proof, fire retardant, eco friendly, easy to install and move, light weight as well as cost effective in installation (as less steel and less overlap), as per the efficiency and benefits it provides. It can save construction cost upto 50%.Apart from its numerous benefits, its salient features include heat insulation upto 35% (highly energy efficient) and it can withstand temperature upto 70 degrees Celsius to - 40 degrees Celsius.PVC+ASA two layer co-extrusion Roofing tile. ASA layer for anti-UV for 30 years life.2. Product application:Product are used for factories, warehouses, sheds, farmers market, hoardings, walls, temporary shops, sheds and other very suitable insulation.3. Product cost and selling price:
Material
Surface layer
Bottom layer
Name
ASA (Granule)
Mixed by PVC powder, CaCO3, CPE, PE-WAX, Stearic acid, Compound stabilizer, ACR, paraffin
Cost
USD 3400/1000kg, Need 100g/ square meter
USD 300-USD 500/1000kg
 Weight
3-5kg/square meter
Thickness
1.5mm,2mm,2.5mm,3mm(1.5-3mm adjustable)
Profit
Product cost USD 1.7-USD 3/ square meter
Normally in market sell at USD 2.7-5 / square meter even more
4. Detailed instruction:4.1. Raw material & Final product:
Raw material & formulation
Bottom layer: PVC powder, CaCO3, CPE, PE-WAX, Stearic acid, Compound stabilizer, ACR, paraffin.Surface layer: ASA granule
Description final product & Output
Two layers PVC+ASA Co-extrusion Glazed tile;Width:920mm, Thickness: 1.5~3mm;Output:300-400kg/h(Depending on CaCO3 proportion)
Final product
Main tile:1setTwo layers PVC+ASA Corrugated tile;Width:920 /1130mm, Thickness: 1.5~3.0mm;Wave distance:210mm; Wave height:customized Ridge tile:1set
4.2. Work condition (Provide by customer)
Warehouse/Workshop
Machine Dimension (M*M*M): 25(Length)×5(width) ×3.5 (Height)Crane: Machine positioning
Temperature & Humidity
≤40℃, ≤95%
Power supply
3-phase, 380 V, 50 Hz(or customized)
Wire/cables:
Wires/cables from power supply to control cabinet of this production line;
Cooling Water hose/pipe:
Water supply to machines and pools
Lubrication oil:
Sinopec, Exxon mobile
Compressor
necessary
4.3. Energy consumption
Installation power
Total 284.75KW,Actual consumption about 70%Suggested 200KVA transformerNeeding at least 150KVA transformer
Cooling Water
≤20℃, ≥0.3Mpa, ~5-6tons/hr
Compressed air
0.3m3/min, >0.6Mpa
Manpower
3 Persons/shift
4.4. Machine list:Machine list:
No.
Machine
Qty.

1
Screw loader for extruder
1set
Main tile extrusion line Ridge tile forming
2
Conical twin-screw extruder(PVC)
1set
3
Vacuum loader and drying hopper
1set
4
Single screw extruder(ASA)
1set
5
Extrusion mould and distributor
1set
6
Calibration mould and trimming device
1set
7
Haul off unit
1set
8
Cutter
1set
9
Stacker
1set
10
Ridge tile Oven
1set
11
Ridge tile Forming machine and mould
1set




12
Screw loader for Mixer
1set
Auxiliary equipment
13
Mixer unit
1set
14
Crusher
1set
15
Pulverizer
1set
4.5. Work flow: Mixer for bottom layer(PVC powder, CaCO3, CPE, PE-WAX, Stearic acid, Compound stabilizer, ACR, paraffin)Extrusion process: Conical twin-screw extruder for bottom layer-Single screw extruder for Surface layer(ASA)-Mould-surface embossing(Optional)-Forming machine-Haul-off-cutter-stacker –Main tileOven-Ridge tile machine and mould-1set Ridge tileCrusher(waste material)-Pulverizer—Reuse again for extrusion line4.6. Product installation method:Metal supportingTool: screw, presser, Pressing cap, rubber ring, gasket
Plastic Corrugated Roof Sheet Machine / Three Layer Plastic Roof Tile Making Machine



Corrugated tile making machine video: https://www.youtube.com/watch?v=44hqZgRkjf8 Glazed tile making machine video: https://www.youtube.com/watch?v=38HSHFrA2B8
