Flat To Slope PVC ASA Co-extruded Plastic Roof Tile Machine With Twin Screw Extruder SJZ80 / 156

본문 바로가기


Home > Product > Flat To Slope PVC ASA Co-extruded Plastic Roof Tile Machine With Twin Screw Extruder SJZ80 / 156
Selling leads
Flat To Slope PVC ASA Co-extruded Plastic Roof Tile Machine With Twin Screw Extr...
Posting date : May 28, 2018
Membership
Free Member Scince May 24, 2018
FOB Price
USD 85000-250000 / set
Min. Order Quantity
1 set
Supply Abillity
400 sets / year
Port
Shanghai
Payment Terms
T/T ; L/C
Package
Wooden case and plastic film
Keyword :
Category
Contact
Sherry
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Acemien
Model Number
Ace-001
HS-CODE
8477-20
Package & Delivery Lead Time
Package
Wooden case and plastic film
Delivery Lead Time
45 - 90days

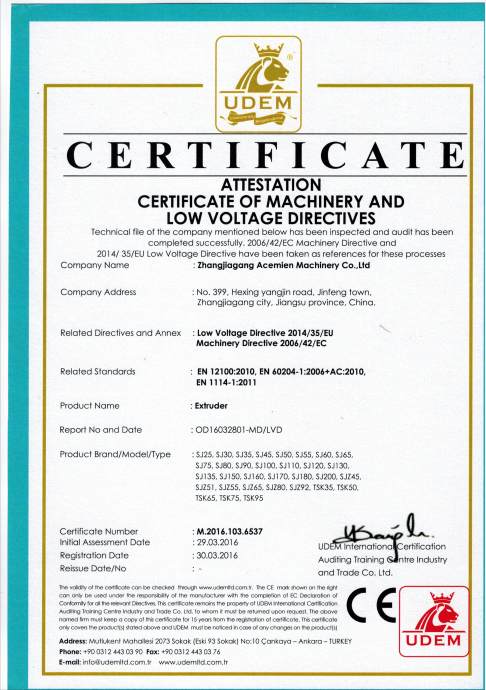

Specifications
Type of Certification
CE
Reference no.
M.2016.103.6537
Name.
Extruder
Start Date (validity period)
2016-03-30
End Date (validity period)
0000-00-00

Detailed Description




Workshop Use Plastic Extrusion line for Corrugated PVC sheet / PVC ASA Roof Corrugated Tile Sheet Extrusion Plant

Plastic tile have better heat resistance and sound resistance than metal tile, anti-corrosion, lower noise, longer life.

1) We make PVC+ASA two layer co-extrusion Roofing tile. ASA layer for anti-UV for longer life
We also produce one layer, three layer or four layer Corrugated tile machine.

2) Corrugated tile width 840mm/1130mm, thickness 1.5-3mm adjustable.
We can produce the machine as your requested product size.

3) plastic Corrugated tile have the same product structure with metal tile.

4) Trapezoid or Round shape for your choice.

5) The turnkey machine contain main tile extrusing machine, Ridge tile forming machine, mixer, crusher, pulverizer...

6) Plastic Corrugated tile are used for Roofing, can be used for factories, warehouses, sheds, farmers market, hoardings, walls, temporary shops, sheds and other very suitable insulation

7) installation is very easy, less supporting .

Work flow: Mixer for bottom layer(PVC powder, CaCO3, CPE, PE-WAX, Stearic acid, Compound stabilizer, ACR, paraffin)
Extrusion process: Conical twin-screw extruder for bottom layer-Single screw extruder for Surface layer(ASA)-Mould-surface embossing(Optional)-Forming machine-Haul-off-cutter-stacker –Main tileOven-Ridge tile machine and mould-1set Ridge tileCrusher(waste material)-Pulverizer—Reuse again for extrusion lineProduct installation method:Metal supportingTool: screw, presser, Pressing cap, rubber ring, gasket

Machine list:
No.
Machine
Qty.

1
Screw loader for extruder
1set
Main tile extrusion line

Ridge tile forming
2
SJZ80/156 conical twin-screw extruder(PVC)
1set
3
Vacuum loader and drying hopper
1set
4
SJ50/30 single screw extruder(ASA)
1set
5
Extrusion mould and distributor
1set
6
Calibration mould and trimming device
1set
7
Haul off unit
1set
8
Cutter
1set
9
Stacker
1set
10
Ridge tile Oven
1set
11
Ridge tile Forming machine
1set




12
Screw loader for SRL-Z300/600 Mixer
1set
Auxiliary equipment
13
SRL-Z300/600 Mixer unit
1set
14
PC400 Crusher
1set
15
SMP400 Pulverizer
1set


Corrugated tile making machine video: https://www.youtube.com/watch?v=44hqZgRkjf8 Glazed tile making machine video: https://www.youtube.com/watch?v=38HSHFrA2B8
