12V/1A AC/DC power adapter for sound box
Posting date : Jun 23, 2017
Membership
Free Member Scince Jun 22, 2017
FOB Price
US$2.3
Min. Order Quantity
500
Supply Abillity
over 10K per month
Port
Xiamen
Payment Terms
T/T
Package
PE bag+ White box
Keyword :
Category
Contact
Shirely
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
XH
HS-CODE
8501-20
Package & Delivery Lead Time
Package
PE bag+ White box

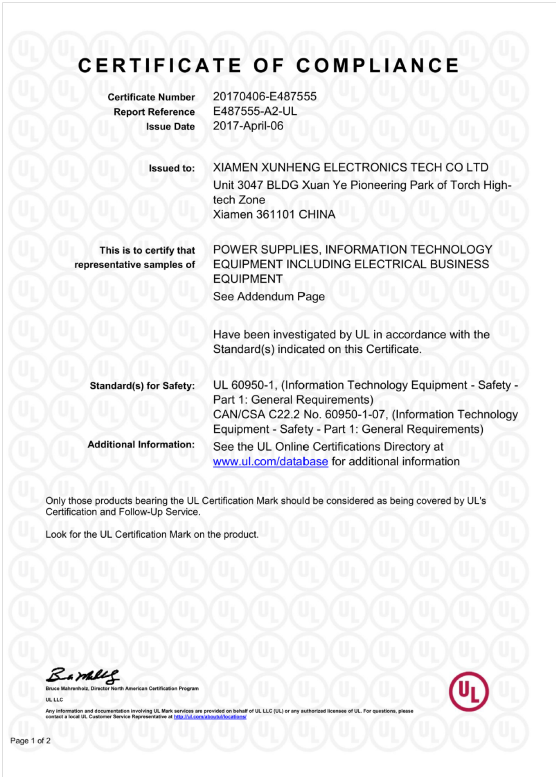

Specifications
Type of Certification
certificate of compliance
Reference no.
E487555-A2-UL
Name.
UL
Issued By
UL LLC
Start Date (validity period)
2017-04-06
End Date (validity period)
0000-00-00

Detailed Description
Applications
Wireless telephone, routers, Bluetooth products, digital products, mobile phone chargers, battery chargers, electric toy charger, TV box charger, security camera
Product characteristics
  • Small volume, streamlined, whole sealing, portability, high cost performance, strong reliability, ultrasonic bonding
  • Safety approval of CCC, CB, ETL, CE, GS, BS, KC, SAA, PSE
  • Low standby power consumption, meet the energy efficiency standards of EU CoC V5 and US DoE VI/CEC VI (6)
  • Accept customization of specification, USB output type or power cord output type
  • Customization: EU, American, British, Australia, Korean, Chinese standard
Electrical characteristics
  • Input voltage: 100-240V/AC (90-264VAC)
  • No-load power consumption: <0.1W max
  • Output voltage: 5.0-30.0V DC
  • Output power: 12W
  • Constant-current output: constant voltage output or automatic switch between constant voltage and constant current
  • Ripple and noises: <200mV max
  • Lightning surge: up to 1kV (accept 3kV)
  • Common specification: 12V DC/1.0A, 12/1.5, 12/2.0, 9V/2.5A
Output protections
  • Short circuit protection
  • Over voltage protection
  • Over current protection
  • Over temperature protection
 Environmental characteristics
  • Hi-pot test: 3750V/AC 60s 5mA max
  • Insulation resistance: 100mΩ min
  • Leakage current: 0.25mA max
  • Operating temperature: 0 to 40°C
  • Storage humidity: 5-95%RH
  • Burn-in test: rate load, 40 ±5°C, 4 hours
  • EMC standards: EN55022 class-B/FCC part 15 class-B
  • EN55024/A1: 2001/EN61000
