12V 5A AC/DC power adapters, switching power supply, UL, CE, FCC, GS certified

본문 바로가기


Home > Product > 12V 5A AC/DC power adapters, switching power supply, UL, CE, FCC, GS certified
Selling leads
12V 5A AC/DC power adapters, switching power supply, UL, CE, FCC, GS certified
Posting date : Jun 23, 2017
Membership
Free Member Scince Jun 22, 2017
FOB Price
US$5.7
Min. Order Quantity
500
Supply Abillity
over 10K per month
Port
Xiamen
Payment Terms
T/T
Package
PE bag+ White box
Keyword :
Category
Contact
Shirely
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
XH
HS-CODE
8501-20
Package & Delivery Lead Time
Package
PE bag+ White box

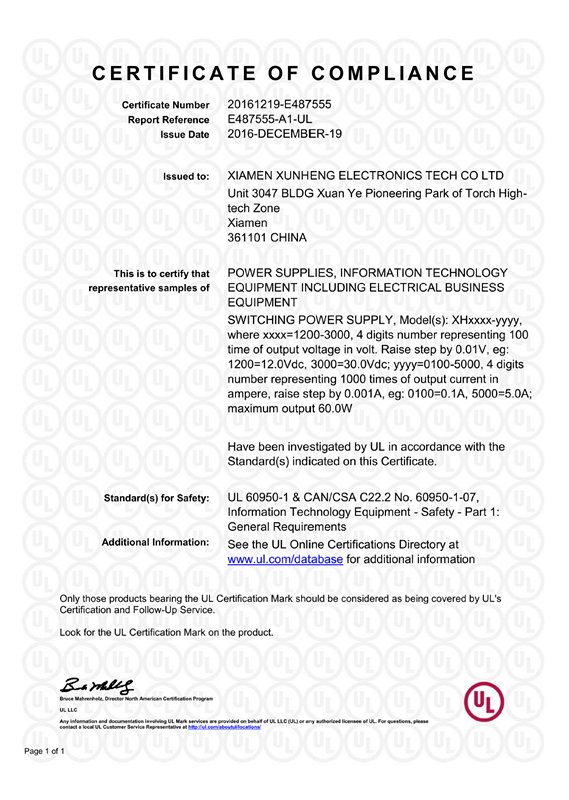

Specifications
Type of Certification
certificate of compliance
Reference no.
E487555-A1-UL
Name.
UL
Issued By
UL LLC
Start Date (validity period)
2016-12-19
End Date (validity period)
0000-00-00

Detailed Description
Product characteristics:
  • Excellent insulating property, high-frequency transformer use 100% vacuum impregnation
  • Full load high temperature burning , products with 100% burn-in test, low defect rate
  • Input structures: Y style, 8 style, cross style (moisture-proof and dust-proof)
  • Safety approval of CCC, CB, ETL, CE, GS, BS, KC, SAA, PSE
  • Low standby power consumption, meet the energy efficiency standards of EU CoC V5 and US DoE VI/CEC VI (6)
  • Accept customization of specification
Electrical characteristics:
  • Input voltage: 100-240V AC (90-264V AC)
  • No-load power consumption: <0.3W max
  • Output voltage: 12.0V DC, 30.0V
  • Output power: 0 to 60W
  • Ripple and noises: <200mV max
  • Lightning surge: up to 1kV (accept 3kV)
  • Common specifications: 12V DC/4.0A, 24V/2.0A, 12V/5.0A 24V/2.5A
Output protections:
  • Short circuit protection
  • Over voltage protection
  • Over current protection
  • Over load protection
  • Over temperature protection
Environmental characteristics:
  • Hi-pot test: 3750V AC, 60s, 5mA max
  • Insulation resistance: 10M Ω min
  • Leakage current: 0.25mA max
  • Operating temperature: 0 to 40℃
  • Storage humidity: 5-95% RH
  • Burn-in test: rate load, 40±5℃, 4 hours
  • EMC standard: EN55022 class B/FCC part 15 class B
  • EN55024/A1:2001/EN61000
