XLPE Insulated PVC Sheathed Armour Power Cables Standards: IEC60502, GB/T12706-2002

본문 바로가기
Home > Product > XLPE Insulated PVC Sheathed Armour Power Cables Standards: IEC60502, GB/T12706-2002
Selling leads
XLPE Insulated PVC Sheathed Armour Power Cables Standards: IEC60502, GB/T12706...
Posting date : Apr 12, 2017
Membership
Free Member Scince May 21, 2007
FOB Price
1
Min. Order Quantity
1000
Supply Abillity
1000000
Port
SHA
Payment Terms
T/T
Package
DRUM
Keyword :
armour cable
Category
MACHINERY & ELECTRICAL | Electrical machi | Insulated (inclu | Other electric c
Contact
Jack Strathairn
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
LUBAO
HS-CODE
8544-49
Package & Delivery Lead Time
Package
DRUM
Delivery Lead Time
30
Specifications

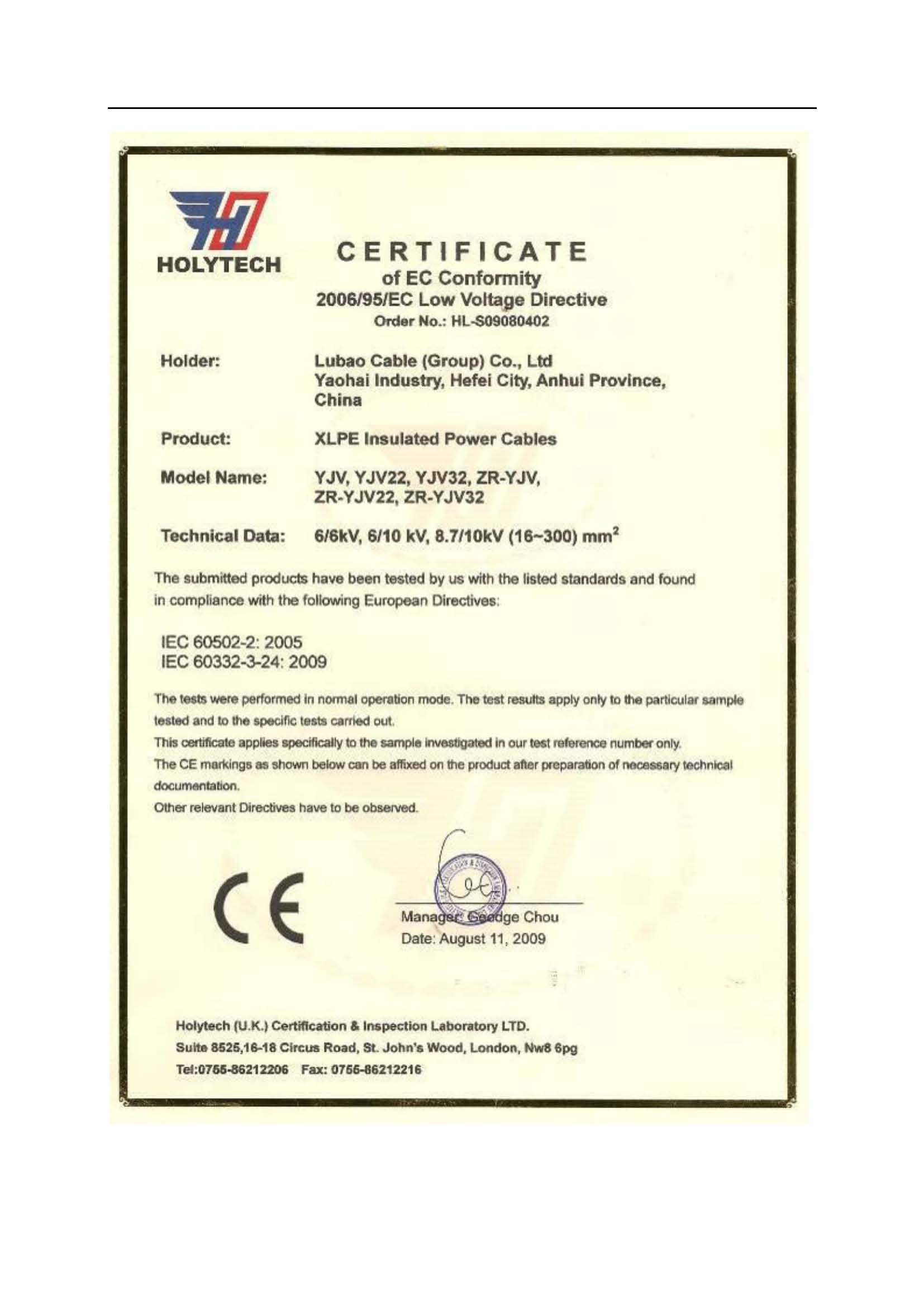

Type of Certification
CE
Reference no.
HL-S09080402
Name.
CE
Issued By
CE
Start Date (validity period)
2009-08-12
End Date (validity period)
0000-00-00

Detailed Description
XLPE Insulated PVC Sheathed Armour Power Cables
Standards: IEC60502, GB/T12706-2002
Application: It is suitable to be installed indoors, in duct, tray or direct burial, with rated low voltage of U0/U (0.6/1KV) and medium voltage of U0/U (6/6KV; 6/10 KV; 8.7/10 KV; 8.7/15 KV; 26/35 KV; 26/45KV) for transmitting electricity.
XLPE insulated power cable has a number of advantages over PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmetal stress resisting, antichemical corrossion. It can be laid with no drop restriction.
Type Discription Rated Voltage  (KV) Number of cores   Nominal Cross-sectional Area (mm2) Cu Al YJV   YJLV  YJV: Copper conductor XLPE insulated and PVC sheathed power cables.YJLV: Aluminium conductor XLPE insulated and PVC sheathed power cables. 0.6/1KV 1 1.5~1200 4~1200 2 1.5~300 4~300 3 1.5~300 4~300 4 1.5~300 4~300 5 1.5~300 4~300 3+1 1.5~300 4~300 3+2 1.5~300 4~300 4+1 1.5~300 4~300 Media voltage power cable 6/6; 6/10; 8.7/10; 8.7/15; 26/35; 26/45 1 25~630 35~630 3 25~400 35~400 YJV22
YJLV22  YJV22: Copper conductor XLPE insulated and PVC sheathed steel tap armoured power cables.                                 YJLV22: Aluminium conductor XLPE insulated and PVC sheathed steel tap armoured power cables. 0.6/1KV 1 10~500 10~500 2 2.5~300 4~300 3 2.5~300 4~300 4 2.5~300 4~300 5 2.5~300 4~300 3+1 2.5~300 4~300 3+2 2.5~300 4~300 4+1 2.5~300 4~300 High voltage power cable 6/6; 6/10; 8.7/10; 8.7/15; 26/35; 26/45 1 25~630 35~630 3 25~300 35~300 YJV32
YJLV32  YJV32: Copper conductor XLPE insulated and PVC sheathed steel wire armoured power cables.                                 YJLV32: Aluminium conductor XLPE insulated and PVC sheathed steel wire armoured power cables. 0.6/1KV 1 50~500 50~500 2 35~300 50~185 3 25~300 35~300 4 25~300 35~300 5 25~240 35~240 3+1 25~300 35~300 3+2 25~300 35~300 4+1 25~240 35~240 Media voltage power cable 6/6; 6/10; 8.7/10; 8.7/15; 26/35; 26/45 1 50~630 50~630 3 25~300 35~300
Aluminium Core XLPE Insulated PVC Sheathed Armour Power Cables Aluminium Core PVC Insulated PVC Sheathed Armour Power Cables
Standards: IEC60502, GB/T12706-2008
Application: It is suitable to be installed indoors, in duct, tray or direct burial, with rated low voltage of U0/U (0.6/1KV) and medium voltage of U0/U (6/6KV; 6/10 KV; 8.7/10 KV; 8.7/15 KV; 26/35 KV; 26/45KV) for transmitting electricity.
XLPE insulated power cable has a number of advantages over PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmetal stress resisting, antichemical corrossion. It can be laid with no drop restriction.
