Tandem Box YS701
Posting date : Mar 03, 2017
Membership
Free Member Scince Jul 23, 2009
FOB Price
$9.75/set
Min. Order Quantity
1 set
Supply Abillity
500 sets/week
Port
Guangzhou
Payment Terms
T/T, 30% deposit, 70%balance before shipment
Package
6 sets/carton
Keyword :
Category
Contact
Candy
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
YSWJ
Model Number
YS701
HS-CODE
8302-42
Package & Delivery Lead Time
Package
6 sets/carton
Detailed Description

Product Description:

1、Length: 270, 300, 350, 400, 450, 500, 550, 600mm

2、Capacity:  heavily laden of 45 kgs

3、Cycles: Passed SGS 80,000 cycles durability test which is far beyond the CNS requirements of 30,000 times.

4、+/- 2 mm up/down and +/- 2 mm right/left adjustable

5、For 16mm density board.



Product Features:

A、Smooth running with high loading capacity, soft closing.

B、Different width of drawer for your option, self-regulate error can be achieved.

C、2-D adjustment to adjust the panel up and down or left and right can be achieved.

D、Fast to assemble and disassemble for the front panel and rear panel.

E、Thanks to the integrated damper, it will close silently and effortlessly.



Product Advantage:

A、Electrolytic plate protects the slides form corrosion passing a 24h/48h/72h  Saly-mist corrosion test.

B、In the case of load-bearing 45KG,tandem box can maintain obvious  soft-closing function, which is far  better than others.

C、Passed SGS test, thanks to integrated damped system supplies a two-way soft closing, which make it close silently and effortlessly in a normally pushing. And the sliding rail never run into the drawer to make sure the goods keep well.

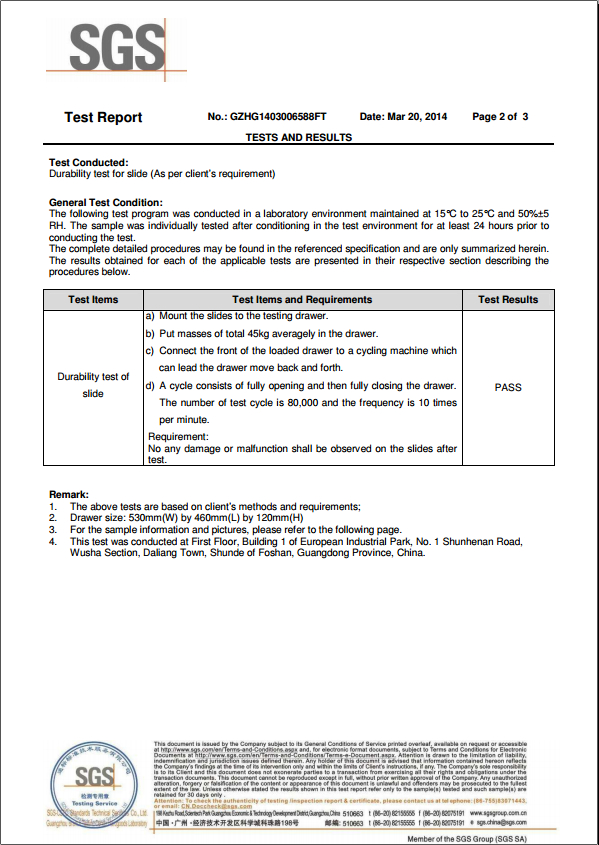

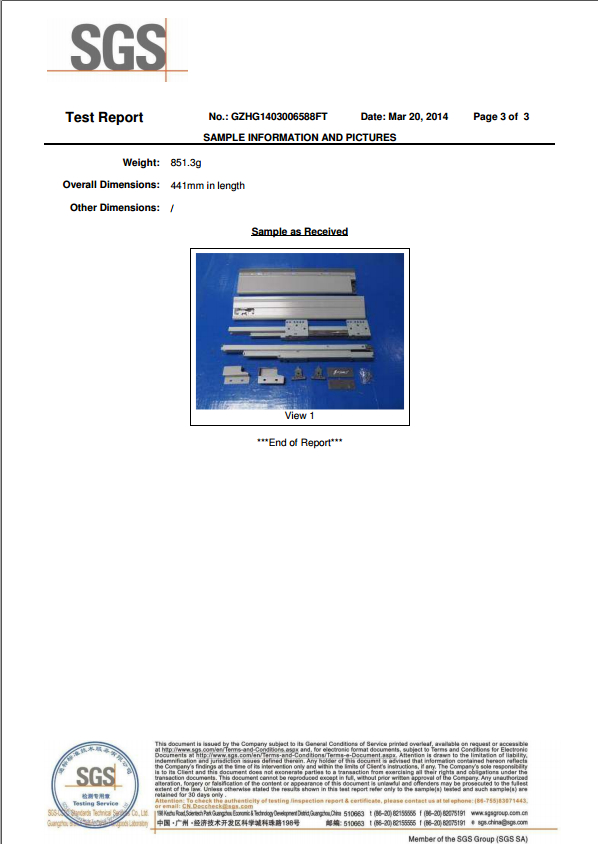

SGS Certificate





Product Parameter:



Model

 Length

Internal Available Length

 Mini Installation Length for the drawer

 Mini Installation Height for the drawer

 Pulling-out Length

Thickness of base plate

Length of base plate

Thickness   of rear   panel

 Height of rear panel

 YS701-270

 270mm



244mm





275mm





105mm





218mm





16mm





260mm





16mm





71mm



 YS701-300

 300mm

 274mm



305mm





105mm





248mm





16mm



 290mm



 16mm



 71mm

 YS701-350



 350mm





324mm





355mm



 105mm

 297mm



 16mm





340mm



 16mm



71mm



 YS701-400



 400mm





374mm





405mm





105mm





347mm





16mm





390mm



 16mm

 71mm

 YS701-450



450mm





424mm





455mm



 105mm

 398mm



16mm





440mm





 16mm



 71mm

 YS701-500



500mm





474mm





505mm



 105mm



 448mm





 16mm



 490mm



 16mm





71mm



 YS701-550



 550mm





 524mm





 555mm





105mm



 498mm



16mm





540mm





 16mm



 71mm



 Others:

Delivery Date



Normally in one month





MOQ





500sets





Supply Ability





100,000sets/month





Payment Terms





T/T
