Tandem Box YS704
Posting date : Mar 03, 2017
Membership
Free Member Scince Jul 23, 2009
FOB Price
$11.4/set
Min. Order Quantity
1 set
Supply Abillity
500 sets/week
Port
Guangzhou
Payment Terms
T/T, 30% deposit, 70%balance before shipment
Package
6 sets/carton
Keyword :
Category
Contact
Candy
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
YSWJ
Model Number
YS704
HS-CODE
8302-42
Package & Delivery Lead Time
Package
6 sets/carton
Detailed Description

Product Description:

1、Length: 270, 300, 350, 400, 450, 500, 550, 600mm.

2、Capacity:  heavily laden of 45kgs.

3、Cycles: Passed SGS 80,000 cycles durability test which is far beyond the CNS requirements of 30,000 times.

4、+/- 2 mm up/down and +/- 2 mm right/left adjustable.

5、For 16mm density board.

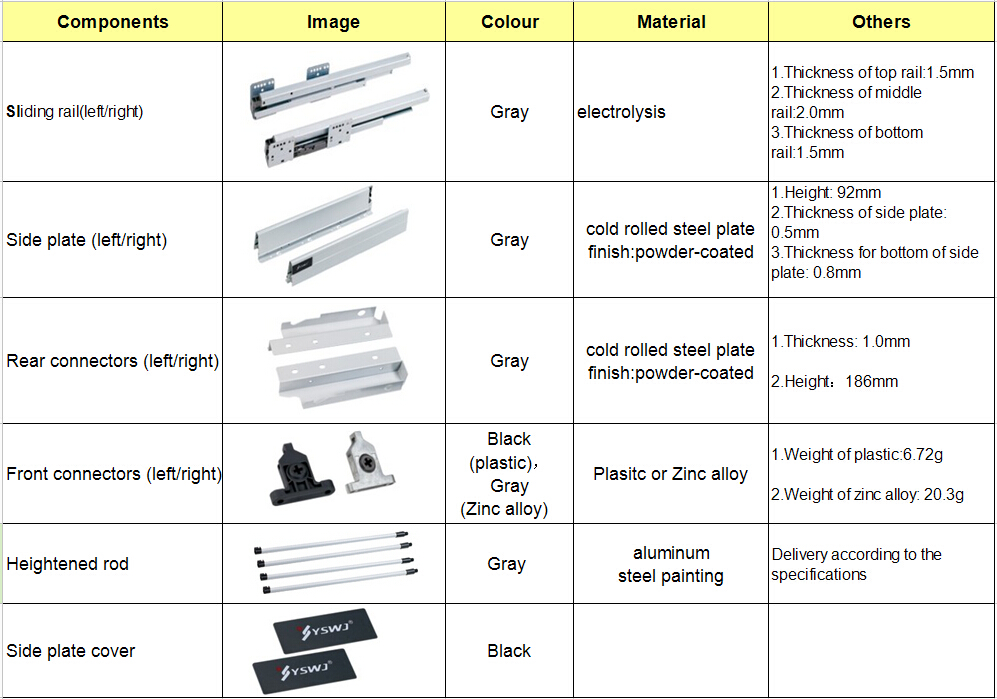

Details of Components:

if (element.YUSERONCLICK) {  eval_r(element.YUSERONCLICK + 'anonymous()');  }



Product Features:

A、Smooth running with high loading capacity, soft closing.

B、Different width of drawer for your option, self-regulate error can be achieved.

C、2-D adjustment to adjust the panel up and down or left and right can be achieved.

D、Fast to assemble and disassemble for the front panel and rear panel.

E、Thanks to the newly-designed integrated damper, it will close silently and effortlessly.

F、Double heightened rod prevent goods fall down.





Product Advantage:

A、Electrolytic plate protects the slides form corrosion passing a 24h/48h/72h  Saly-mist corrosion test.

B、In the case of load-bearing 45KG,tandem box can maintain obvious  soft-closing function, which is far  better than others.

C、Passed SGS test, thanks to integrated damped system supplies a two-way soft closing, which make it close silently and effortlessly in a normally pushing. And the sliding rail never run into the drawer to make sure the goods keep well.





SGS Certificate

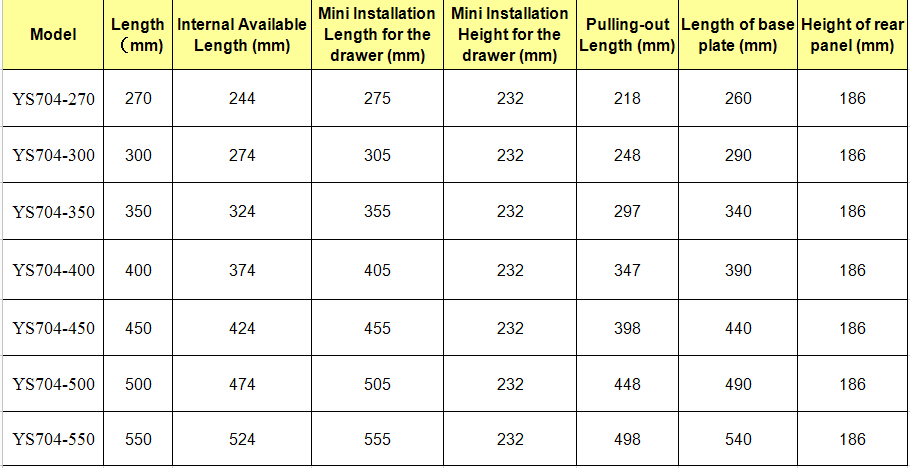

Product Parameter:

if (element.YUSERONCLICK) {  eval_r(element.YUSERONCLICK + 'anonymous()');  }



Others:



Delivery Date

Normally in one month

MOQ

500sets

Supply Ability

100,000sets/month

Payment Terms

T/T
