Free stop cabinet strut YS311
Posting date : Mar 03, 2017
Membership
Free Member Scince Jul 23, 2009
FOB Price
$3.52/pc
Min. Order Quantity
25 pcs
Supply Abillity
1000 pcs/week
Port
Guangzhou
Payment Terms
T/T, 30% deposit, 70%balance before shipment
Package
25 pcs/inner box, 100 pcs/carton
Keyword :
Category
Contact
Candy
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
YSWJ
Model Number
YS311
HS-CODE
8302-42
Package & Delivery Lead Time
Package
25 pcs/inner box, 100 pcs/carton
Detailed Description
Product Description:

A、Material:plastic POM、Zinc alloy、 cold-rolled steel Q235、 PA66、spring 65Mn
B、Finish:plated(brass + nickel + sealing) , polish, heat treatment

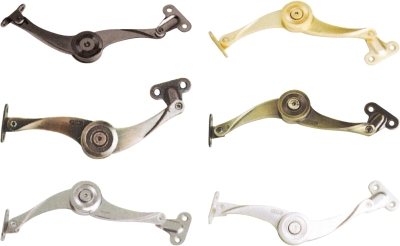

C、Different colors meet your requirements

 wheel gear inside the lid supports
Features:

A、Upward opening to 35°, free stop at any position you want.
B、Adjustment according to the door weight is achieved to get a better function.


Product Advantages:

A、Appearance Patent No.: (ZL 2003 3010 1764.2)
B、Using wheel gear inside to avoid skiding , free stop at any position you want.
C、Having a good stability, opening for a labor-saving, closing without noise.
D、YS311 passed 50,000 cycles durability test which is far beyond the CNS requirements of hinge- 40,000 times.



Ps:
Difference between YS309, YS310, YS311 and YS312 flay stay:
(1) different design
(2) Internal structure:

YS309 flap stay---friction clutch inside
YS310 flap stay---steel ball and cam construction inside
YS311 flap stay---wheel gear inside
