Kitchen door lifting mechanism YS337-B
Posting date : Mar 03, 2017
Membership
Free Member Scince Jul 23, 2009
FOB Price
$20.5/set
Min. Order Quantity
6 sets
Supply Abillity
300 sets/week
Port
Guangzhou
Payment Terms
T/T, 30% deposit, 70%balance before shipment
Package
1 set/inner box, 6 sets/carton
Keyword :
Category
Contact
Candy
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
YSWJ
Model Number
YS337-B
HS-CODE
8302-42
Package & Delivery Lead Time
Package
1 set/inner box, 6 sets/carton
Detailed Description

Product Description:



A: Material: air spring, cold-rolled steel Q235 etc

B: Finish: powder-coated, plated(brass + nickel + sealing)











Feature:



A: Easy to operate and save the space, opening and closing silently.

B: wide range of options for users.

C: Application for a variety of different specifications , material and weight upward opening door, easy to install.

D: Easy to install, 3-D adjustment is achieved for the door.

E: Suitable for light-duty door.

F: Compare with YS337-A kitchen door lofting mechanism, with different polish and connecting bar.









Product Advantage:



AThe door itself lift up slowly after pulling for 10cm,

B、Closing silently without any noise and shock.



Product Parameter:



A: Application: For microwave oven used kitchen cabinet and office file cabinet

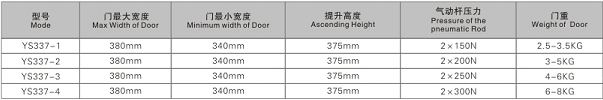

B: Installation: Pls refer to the chart below.



C: Door Height : 600mm - 900mm can be achieved

  • 600mm height of cabinet: using with 541mm connecting rod.
  • 900mm height of cabinet: using with 826mm connecting rod.
  • maximum front projection: 193mm



D: Cycles: 50,000times



Others (packing and service)

A: Package: 1 set/inner box, 6 inner boxes/carton

B: N.W. : 11.5/13kgs

C: MEAS: 80.5*45*13cm

D: Delivery Date: Normally in one month.

E: MOQ: 500sets

F: Payment term: T/T
