Offer diesel generator
Posting date : Dec 21, 2016
Membership
Free Member Scince Dec 21, 2016
FOB Price
122364 US$
Min. Order Quantity
1
Supply Abillity
10
Port
Foshan
Payment Terms
T/T
Package
common box
Keyword :
diesel generator
Category
MACHINERY & ELECTRICAL | Electrical machi | Electric motors | AC generators (a
Contact
Mia
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Wagna
HS-CODE
8501-62
Package & Delivery Lead Time
Package
common box
Specifications

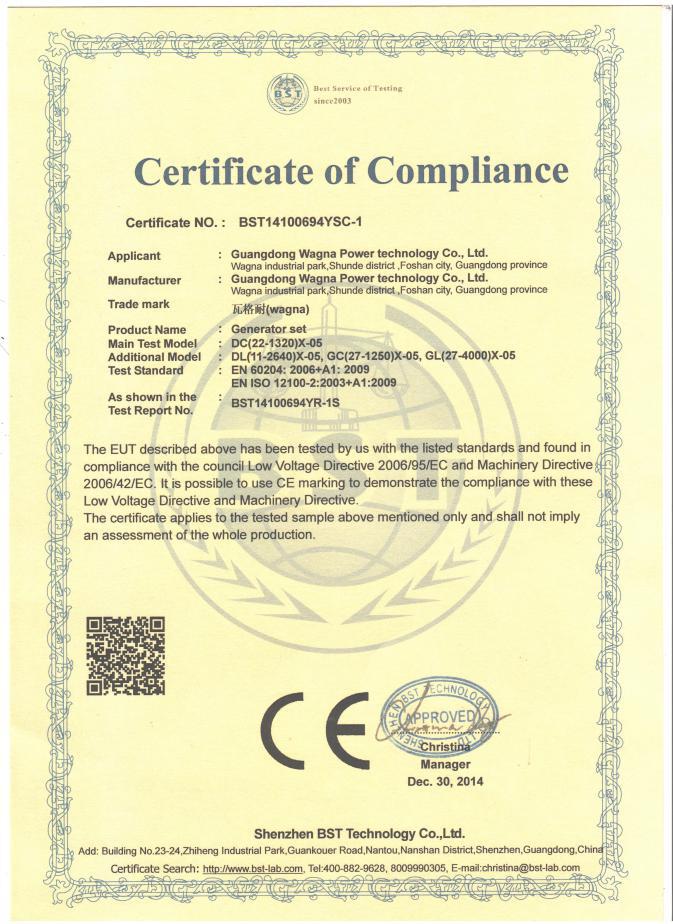

Type of Certification
CE Certification
Reference no.
BST14100694YSC-1
Name.
CE Certification
Issued By
EU
Start Date (validity period)
0000-00-00
End Date (validity period)
0000-00-00

Detailed Description
Wagna DC series generator unitsSummary: Wagna DC series generator units choose domestic top brand diesel engine, facilitated with Wagna motor, Wagna intelligent soft ware control system and efficient coolant heat sink. We strictly comply ISO3048 & ISO0008528 standards, to guarantee 100% rated output while altitude <1000m, ambient temperature 40°C.Wagna DC Series generator units are facilitated with multiple protecting devices, it's also capable of fillu automatic start up, protecting, recording, switching, monitoring; with multi units parallel connecting & remote communication. In addition, effective shock proof is pre installed inside of the fixed frame, which request no special treatment to the basement, the integrated frame oil tank is recommended for mid/ small size generator units. Characteristics:Wagna DC Series generator units are designed, inter exchangeable parts are used for flexible usage and maintenance. It is widely welcomed and accepted for reliability, economy, low cost and easy maintenance.
Model of Gen-set DC44Y-50
                                                                                     Prime Standby
Power of Gen-set (KW) 220 220
Power of engine (KVA) 275 313
Model of engine

SC13G355D2
Manufacture of engine

Shanghai Diesel Engine Co.
Configuration of engine Inline 6 cylinders, four stroke,water cooling, naturally aspirated
Cooling method of engine 40°C water tank radiator, cooling fan with fan belt drive, safety shield
Engine speed control High precision electronic speed control system

Start mode

 24V DC electric start, and equipped with silicon rectifier charging generator
Fuel System Mechanical pump

Total engine displacement(L)

 12.9
Bore*Stroke(mm) 135*150
Fuel Consumption of 100% load(g/kw·h) 200
Oil Capacity (L) 33

Manufacturer of Generator WAGNA
Rated voltage / frequency / power factor 400V/230V, 50Hz, 0.8 hysteresis, three-phase four wire
Steady-state frequency change rate Better than 5%
Insulation Class / Protection Grade Class H/IP22
Telephone influence factor / harmonic coefficients TIF<50/THF<2%
Maximum noise level (dB)A ≤115
Standard accessories  A start battery and a connecting wire,exhaust pipe, corrugated pipe, flange, damping muffler of a base, a shock absorber
Dimension (mm) 2860*1040*1600
Weight (kg) 2900
Ps. Data of above table changes sometime, for reference only.​
Standard components Engine Generator40ºC coolant tankIndustrial silencer Steel base frameMaintenance free battery / cable / recharger Shock damperOut put breaker Intelligent control pena Standard tools

Optional components 50ºC coolant tank Civil silencerFire extinguishing type silencer of heavy industry Heavy duty air filterElectric heater for coolant shallFuel heater for coolant shall  Oil / water separatorBase frame fuel tank / normal fuel tankAutomatic engine oil supply system Automatic fuel supply system Automatic telecom control system Triple remote telecom control system Automatic parallel power grid system Automatic power switch penal Special toolsSpecial trailer platformSound proof and heat proof case
