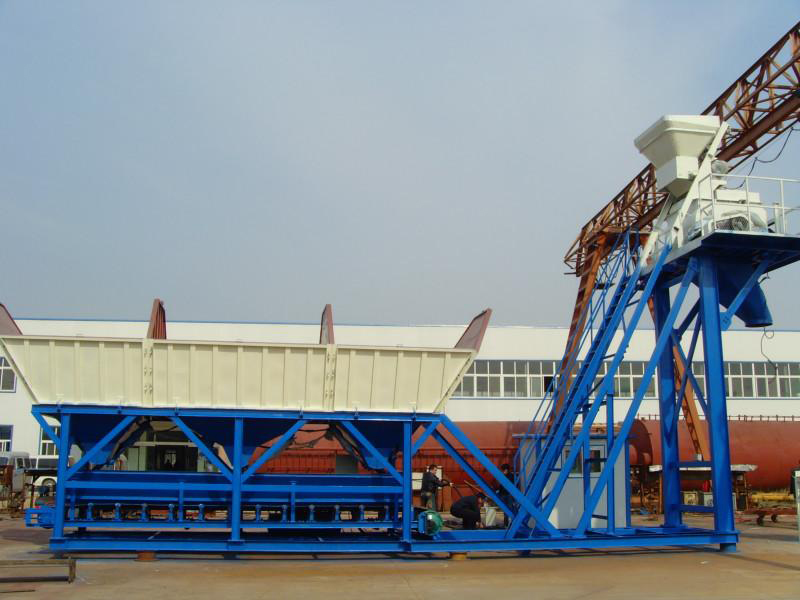

Descriptions of YHZS50 Mobile Concrete Mixing Plant:
YHZS50 portable concrete batching plant(mobile concrete plant) is an innovation movable (by trailer) concrete mixing plant designed to fulfill a variety of applications. YHZS50 mobile plant is an ideal model for distance construction projects like roads, bridges, ports and any other small-scale projects.
Features of YHZS50 mobile concrete mixing plant:
1. Complete mobile unit: Unit easily transported on-site as well as from project to project, on-board hydraulic system changes plant from travel mode to full operational within 2-3 hours for this portable concrete plant;
2. Reliability of mix consistency: Computer and manual dual control mode can be converted easily by a simple switch, twin-shaft mixer offers this portable concrete plant a consistent high grade of evenly mixed material, with its good quality mixing blades, paddles, arms and liners;
3. Highly precise dosing of water, cement, fly-ash, additive. Focus portable concrete plant dosing is realized by three-point suspension sensors, and they are all metered separately;
4. Optimized and modular design;
Model |
YHZS50 |
|
productivity (m3/h) |
50 |
|
Control |
Microcomputer |
|
Measurement |
Electronic Batching Machine |
|
Dumping Height |
3.8m |
|
Total power |
100kw |
|
Concrete Mixer |
JS1000 |
|
Power |
2*18.5kw |
|
Charge Capacity |
1500L |
|
Discharge Capacity |
1000L |
|
Aggregate Size |
60/80mm |
|
Batching Machine |
PL1600 |
|
Measurement Range & Precision |
Cement |
(500-600)kg ±1% |
Water |
(50-350)kg ±1% |
|
Additive |
(5-20)kg ±1% |
|
Fly Ash |
(50-200)kg ±1% |
|
Power Silo |
50T*1 |
|
Screw Conveyor |
LSY219*8m |
