Raymond Mill with High performance
Posting date : Jul 27, 2014
Membership
Free Member Scince Jun 06, 2014
FOB Price
Negotiable
Min. Order Quantity
1 set
Supply Abillity
100
Port
Shanghai
Payment Terms
L/C,T/T
Package
NUDE
Keyword :
Category
Contact
Cui Wanli
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Mangfeng
HS-CODE
7204-41
Package & Delivery Lead Time
Package
NUDE
Delivery Lead Time
WITHIN 15 DAYS
Specifications
Type of Certification
ISO9001-2000
Start Date (validity period)
0000-00-00
End Date (validity period)
0000-00-00

Patent
Start Date
0000-00-00

Detailed Description

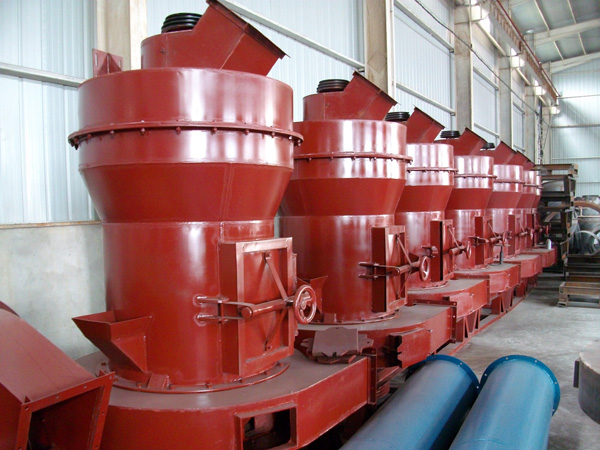

Raymond mill is widely used to grind potassium feldspar, talc, barite, calcite, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, thermal insulation materials and other non-flammable and non-explosive materials with mohs hardness not more than 9.3 and humidity below 6% in mineral, chemical, building and other industries. Particle size of R-type Raymond mill finished product can be discretionarily adjusted between 80-325 mesh, and granularity of some materials can be up to 600 mesh.

Main structure of raymond grinding millRaymond grinding mill is mainly composed of mainframe, analyzer, fan, cyclone separator, micro powder cyclone separator and air hose.Among them, the host is composed of rack, volute, shovel knife, grinding roller, grinding ring and cover.

Working principle of raymond pulverizerIn the working process, materials to be ground are sent into milling chamber from hopper; relying on roller device hanging in the star rack of host, materials orbit around the vertical axis, at the same time, they take autoroatation; due to the effect of rotating centrifugal force, grinding roller presses on the grinding ring and swings outward, which makes the shovel knife scoop materials between grinding roller and grinding ring; under the rolling effect of grinder roll, materials are ground.
