U Shape Flat CCC SGCC Insulated Tempered Glass Panels
0 likes
China [CN] High Light Diffusion [ U Shape Glass ] 6mm 8mm For Outdoor Building Curtain Wall
Description

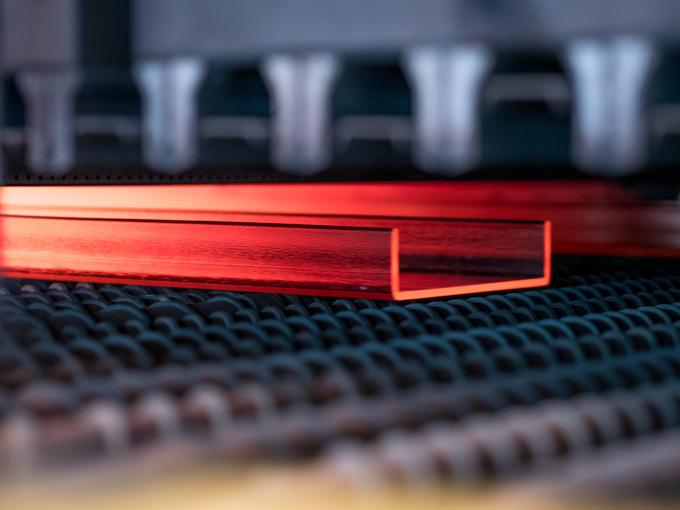

U glass is a U shaped cast glass. Cast in sheet form whilst still molten, it is rolled and the side wings are formed to create a U shaped profile. It is commonly referred to as ‘channel glass’ and each individual length "a blade". It can be used internally and externally and is a very popular glazing solution selected by architects because of its unique, aesthetic characteristics.
U glass can be used in straight and curved applications and the channels can be fixed horizontally or vertically. The blades can be installed single or double glazed.
Advantages/Features
1. U Glass can be fitted in single or double walls
2. U Shape Glass can be attained in large curtain walling sizes
3. U Glass Provides high light diffusion
4. U-Profile Glass can be rapid and easy maintenance and replacement
5. U Channel Toughened Glass allows the construction of curved walls
Specification of U Shape Glass
| Model Number | JF0008-3 |
| Product Type | U Shape Glass |
| Brand | Jeff Glass |
| After-sale Service | Online technical support, return and replacement, on-site installation guidance if necessary |
| Project Solution Capability | Graphic design, cross categories consolidation, deep collaboration |
| Place of Origin | Guangdong, China |
| Thickness | 6mm 8mm |
| Size | Max 331*90*8000mm, Min 262*60*100mm, custom sizes |
| Quality | No bubbles, no scratches, no impurities, high flatness |
| Colors | Customizable |
| Edge | Flat, polished, matt |
| Certifications | ISO9001:2008/SGCC/CCC/CE |
Applications
1. Shop fronts, curtain walls
2. Low level glazing
3. Staircases
4. Areas of glass under thermal stress
