Automatic hot stamping machinery for tube /hose

Technical Parameters:

Print Size ：(16-60)×(50-240)mm

Speed: 60pcs/min

Air presser: 5-7bar

Weight: 1200kg

Dimensions: 2340L×1850W×1800H mm

Power: AC380V 50-60Hz 6Kw

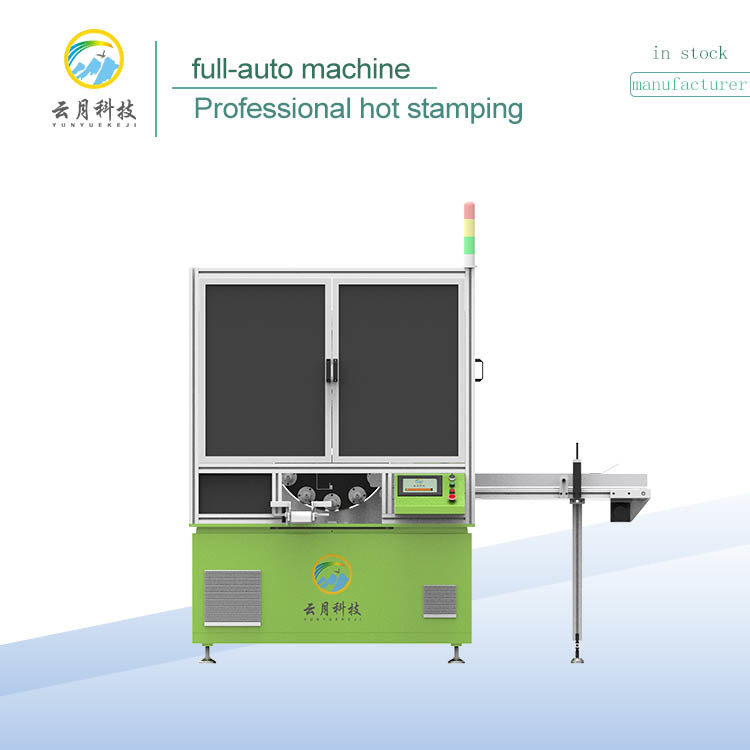

The YY-ATR-B automatic hose hot stamping machine is specially designed for round and cone hot stamping. When the product size is different, only the pipe position and the material flow need to be replaced, which has strong adaptability. It adopts microcomputer control, pneumatic drive, imported motor and photoelectric induction to recover the bronzing paper, effectively ensuring accuracy.

1. The automatic hose hot stamping machine is controlled by PLC and displayed on the touch screen, equipped with various monitoring systems to ensure high-speed and stable operation of the machine.

2. The innovative transmission system is very stable when passing through the hose, easy to switch between hoses of different sizes, and easy to operate.

3. According to the characteristics of the product, it can be equipped with functions such as automatic loading and unloading, positioning, flame treatment, dust removal, automatic registration, and no bottle without printing.

4. We can customize automatic bronzing machines and screen printing machines with different functions according to different products.
