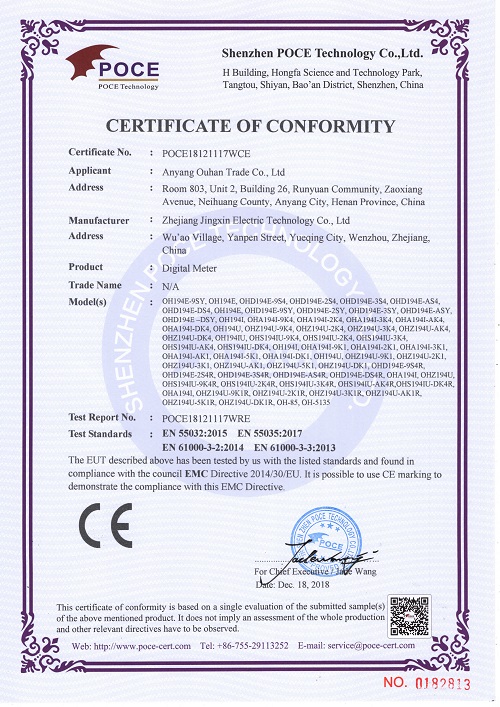

Type of Certification
CE
Reference no.
POCE18121117WCE
Name.
CERTIFICATE OF CONFORMITY
Issued By
Shenzhen POCE Technology Co.,ltd
Start Date (validity period)
2018-12-18
End Date (validity period)
0000-00-00

Detailed Description

I. The Brief Introduction. Panel mount digital energy meter LCD multifunction power meter with RS485, DI DO analog output function

Panel mount digital energy meter LCD multifunction power meter with RS485, DI DO analog output function is one multifunctional instrument with measurement, display, digital communication and input, output, etc function. It can measure multiple electrical parameters such as current, voltage, power, electric energy, frequency and power factor in the power grid. With power pulse output and RS485 communication function. With large screen LCD screen.There are a variety of extension functions to choose from.Four-way discrete input; CE approved panel mount programmable switchboard LCD digital power meter. Four-way discrete output; Four-way variable output.LCD multifunctional power meter has high performance-price ratio, can replace traditional multiple measuring instruments, convenient field wiring, and improve system reliability. Modbus communication protocol for easy computer programming or reading data. Widely used in a variety of power distribution, metering and various power collection, transmission systems. low voltage switchgear use digital panel meter with RS485

II.The Technical Parameter.Panel mount digital energy meter LCD multifunction power meter with RS485, DI DO analog output function

Performance

Parameter three phase digital ammeter digital input output

Input measurement display

Network

3-phase 3-lines, 3-phase 4-lines

Voltage

Rated value

AC100V/220V/380V/500V

Overload

Duration: 1.2 timesInstantaneous: 2 times/1S

Power consumption

<1VA(Each phase) LED three phase digital voltmeter ammeter combination

Resistance

>500KΩ

Accuracy

0.5 portable diesel generator use moving-iron moving-coil analog panel meter

Current

Rated Value

AC1A/AC5A

Overload

Duration:1.2 timesInstantaneous:10 times/5S

Power consumption

<0.4VA(Each phase) Analog display electrical measuring ammeter voltmeter

Resistance

<2mΩ

Accuracy

Class 0.5

Frequency

40-60Hz   Accuracy 0.1Hz

Power

Active power, reactive power, accuracy class 1.0

Electric Energy

Active power accuracy class 1.0;Reactive power accuracy class 1.0

Display

Programmable switching (LCD) display

Power supply

Working range

AC220V or A/DC 80V~260V

Power consumption

≤2VA

Output

Digital interface

RS-485, MODBUS-RTU protocol

Pulse output

2 way energy pulse output

Circumstance

Working condition

30℃~50℃   RH20%~90%(Without condensation)

Storage condition

45℃~75℃    RH20%~90%

Security

Power frequency withstand voltage

2KV/1min AC RMS

Insulation resistance

≥100MΩ

III.Functional module, Panel mount digital energy meter LCD multifunction power meter with RS485, DI DO analog output function ​​​​​​​

*Communication interface: standard 1 way RS-485 communication, Modbus-RTU protocol, baud rate: 9600bps.
*Discrete output: support 4 way relay outputs, capacity: AC250V/5A, DC30V/5A.
*Discrete input: support 4 way dry node inputs.
*Transmission output: support 4 way simulation outputs, 4-20mA/0-20mA or 0-5/0-10V.
*Power pulse output, 1 way active energy, 1 way reactive energy pulse output, constant: 3200imp.
