Electrical cabinet enclosure machine Made in China
Posting date : Jan 27, 2019
Membership
Free Member Scince Oct 10, 2018
FOB Price
65000
Min. Order Quantity
1SET
Supply Abillity
80SET
Port
SHENZHEN
Payment Terms
BY TT, 30% in advance, balance before shipment
Package
Machine into container
Keyword :
Category
Contact
Rebaca
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
SUPERDA
Model Number
YX21-150/250
HS-CODE
8462-29
Package & Delivery Lead Time
Package
Machine into container
Delivery Lead Time
60 days
Specifications

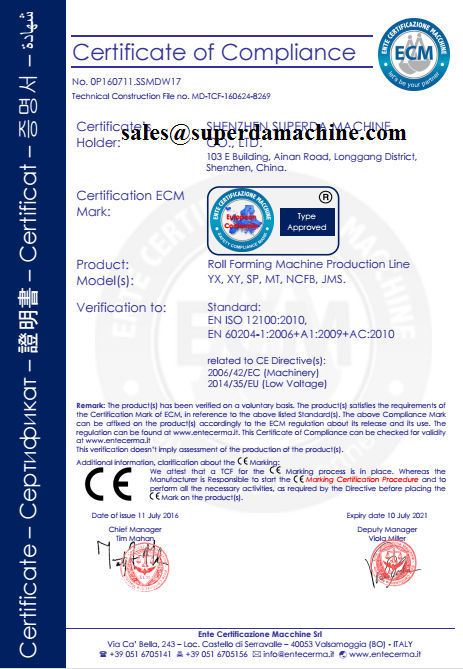

Type of Certification
CE
Reference no.
160711107
Name.
ROLL FORMING MACHINE CE REPORT
Issued By
ECM
Start Date (validity period)
2016-01-27
End Date (validity period)
0000-00-00

Detailed Description
Electrical cabinet enclosure machine Made in China

Technical parameters
No.
ITEM
PARAMETER
REMARK
1
MATERIAL
Type
Cold-rolled strip steel, galvanized sheet

T.(mm)
0.8-1.2mm

Yield Strength (Mpa)
Q235

2
Forming product Width
150,200,250,300,350mm

3
Forming speed (m/min)
2-8m
Including hole
4
Forming main power (KW)
7.5 KW
FYR
5
Hydraulic power (KW)
18.5 KW
FYR
6
Bending power (KW)
3 KW
FYR
7
Voltage
 AC380V,50Hz,3P


(A) 2 in 1 Uncoiler Straightening→servo feeder→Hydraulic press breach device  → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack
(B) Bending machine with tool


Electrical box service

Shenzhen Superda Machine co., Ltd is a China roll former fabricator, Superda professional roll forming machine mainly is highway guard rail roll forming machine,cable tray roll forming machine, floor deck roll forming machine and electronic cabinet enclosure machine. And other hand, the storage rack roll forming machine,solar rack roll former etc roll former or roll former design all is our job expertise.

We support engineer oversea install machine and help metal manufacturers training production engineer.



Cabinet Main Forming machines  (for panel width 150,200,250,300,350mm )

6.1  Forming Roller:20 stations,and add Rub-roll, To make sure the surface profile no scratches.
6.2  Side Panel:T.18mm ,A3 steel   Heavy duty 。
  6.3  Rolling speeding: 2-8 m/min
      6.4  Roller material:GCr15,overall quenching, hardness HRC56-62 ℃.
6.5  Motor power:7.5KW。
6.6  Main Roller :¢75mm,45 #。
6.7  Equipment base: 45 # H type using welded steel plate.
6.8  Transmission: chain drive.
6.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
Electrical cabinet enclosure production video entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.

https://www.youtube.com/watch?v=hArBk13GNNU&feature=youtu.be
