Advanced automatic starch production line processing cassava starch machine

Company Information

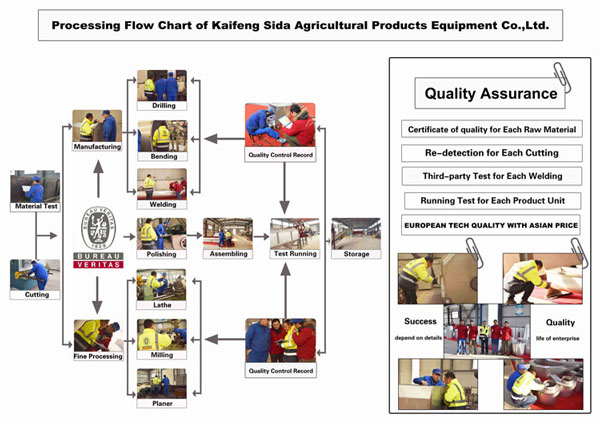

Our company was established in 1994, it’s been 24 years. The Key Performance Indicator of 361, and the training system can ensure we have the steady stream of excellent staff. The strong technical team can ensure to meet the customized requirements. The advanced equipment like the laser cutting machine, bending machine can guarantee the product quality and delivery time. Each product has a product process card, make every link traceable. Our company has 16 national patent for invention, pass the approval of ISO9001,BV,etc. The European standard welders can make sure the customer get the European standard products with Asia price.

Product Description

In the processing of cassava starch it is vital to complete the whole process within the shortest time possible, since as soon as the roots have been dug up, as well as during each of the subsequent stages of manufacture, enzymatic processes are apt to develop with a deteriorating effect on the quality of the end product.

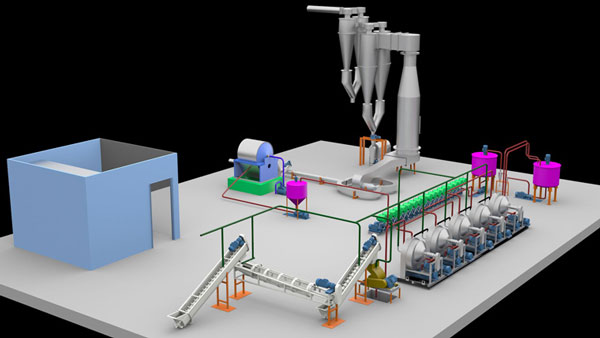

For our starch processing machines, all the productive process is fully mechanized. It just need 30 minutes from feeding to final production. In the dregs, there is no starch granules. We have reached the first standard of the field to dry starch with low temperature and low altitude.

Cleaning Section:

There are two times cleaning in this section. For the first cleaning, the raw materials will be transferred by belt conveyor from feeding hopper to roller cleaning machine, and to remove sand, peels, muddy and sundries. There are two valve outlet at the bottom, all the sundries are collected to the bottom for periodical clean-up.By belt conveyor, all the cassava material are sent to the paddle cleaning machine to begin the second time cleaning. In the U type clean machine, the present stones and other heavy particles will be separated.For this cleaning section, it can remove most of sand, muddy and sundries.

Crushing Section:

In the crushing section, there are two kinds of machine, one is knife type crusher, another one is hammer crusher.

The cleaned cassava are transferred into the knife type crusher to cut the roots into pieces, and fall into the hammer crusher. The hammer crusher disintegrates the cassava pieces into a suspension of free starch granules, fibers, bounded starch and fruit containing soluble such protein , sugars, and minerals.

Extracting Section:

The materials out of the hammer will go the centrifuge sieve to separate starch granules and dregs.

We adopt the technology of three-level back-flush to extract starch. Three vertical centrifuge sieves are put by vertical direction, so the water can flow down automatically, and there is no need to add more pumps to connect. That’s to say, they can save more water consumption, power and cost.

Purify and De-watering Section:

Out of the centrifuge sieve, all the materials will go into de-sander machine to remove sand.

Then the materials go into hydrocyclone machine to start concentration, purification and separation. Our machines adopt the world latest combination structure ensure more stable system working, and there are 18pcs hydrocyclones, the coarse starch milk will be purified 18times, finally the white starch milk will flow out from one side, and yellow slurry will flow out from another side.Using vacuum dehydrator machine to remove water from the white starch milk, after this machine, the rate of water is 37-38%.

Drying and Packing Section:

From the vacuum dehydrator machine, the wet starch will go into air steam dryer machine. Under the wind force producing by the wind machine, the wet starch and hot air will mix in the two drying tubes, and divided into two suspending status, then go ahead in parallel at high speed. Finally the two tubes become one, and the materials crash and create more heat, so the wet starch will be dried immediately to reach flash dry. The temperature of starch is very low, it’s about 40℃, after sieving, they can be packed directly.

Our Services:

Pre-sale Service of :1. Our solders will give a detailed introduction and explanation to the whole line.2. Our engineers will design the factory layout for you.3. We can offer you the OEM, basis on your request.

Sale service1. Recommending engineering conditions required for installation of the machine.2. Communicating the manufacturing progress of machines with customer in time.3. Project planning and design services;

After-sales Service of :1. We can offer the Turn-key Project for your request.2. We offer you the whole factory design and machines' installation drawing3. You can sell our worker to our factory for learning before the goods shipping.4. We will offer machine operation training and guide for free when machine being installed.5. One year warranty.

Our Honor and Certifications:Our company own 16pcs national invention patents and pass the ISO9001 certificate (the international quality management system), BV certificate, and own the European welding certificate. There are some of them.

Packaging & ShippingPackaging Details :Every parts of the gluten processing machine well packed before loading, to ensure no damage when container arrived to work site.
