Countstar® BioTech Automated Cell Counter

Posting date : Aug 24, 2018

Click enlarge Image

Membership

Free Member Scince Aug 23, 2018

FOB Price

5000-7000USD

Min. Order Quantity

Supply Abillity

Unlimited

Port

Ningbo

Payment Terms

T/T

Package

Pallet

Keyword :

Cell Counter

Category

MISCELLANEOUS | Optical ph | Instrument | Instrument

Contact

Frank Huang

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

Countstar

HS-CODE

9018-90

Package & Delivery Lead Time

Package

Pallet

Delivery Lead Time

1-3 months

Detailed Description

Accurate cell analysis for:

Trypan blue Cell Counting
Aggregated Cell Analysis
Cell Diameter Analysis
Cultivation time chart (CTC)

Product OverviewThe Countstar® is designed based on the classic trypan blue staining for cell viability principle, integrating the advanced “fix focus” optical imaging work bench and the most advanced cell recognition technologies and software algorithms. Countstar BioTech not only provides the cell concentration and viability, but also provides the average diameter and average circularity, and showing the diameter range and aggregation of cells in histograms etc.

Key Benefits

“Fixed Focus”– No manual focus adjustment needed
Fast testing time – less than 20s
Data easily comparable with a hemocytometer
Maximum loaded 5 samples in one slide
Accurate and high reproducibility result – Intra-assay & Inter-assay CV <5%
Maintenance and service free
Powerful software and data management System
IQ/OQ validation and PQ support

Product featureEasy and fast:

Within 20 seconds through three steps with one button

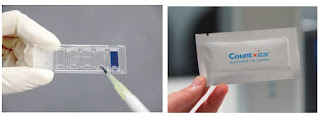

Cost-efficient Consumables:Loaded 5 sample in one slide Individual Package

Imaging Technology:

5-megapixel color imaging and a wide sample collection range ensures clear and accurate visualization

Accuracy and Reliability:Guaranteed by “Fixed Focus” technology, high resolution imaging, larger observation area and advanced algorithms.Countstar VS Hemocytometer

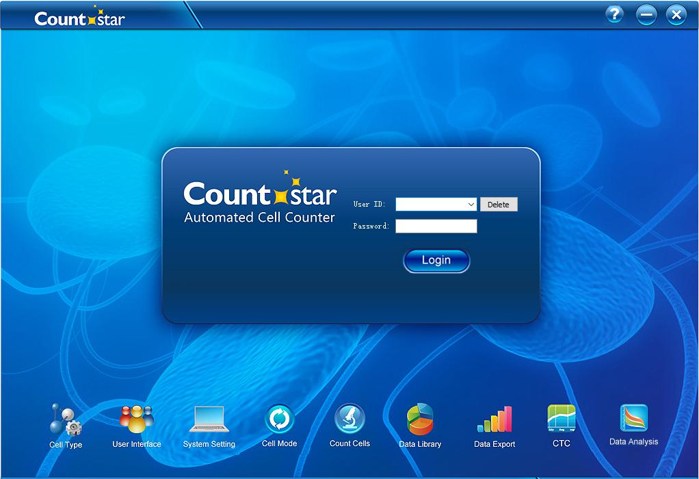

Powerful data analysis and management System:1. Intelligence search, Coded lock, security user login and sustainable data management etc., to keep the cell quality and data safety.

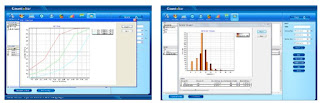

2. Countstar software system provides cultivation time chart (CTC), overlay analysis and other statistical and analytical functions

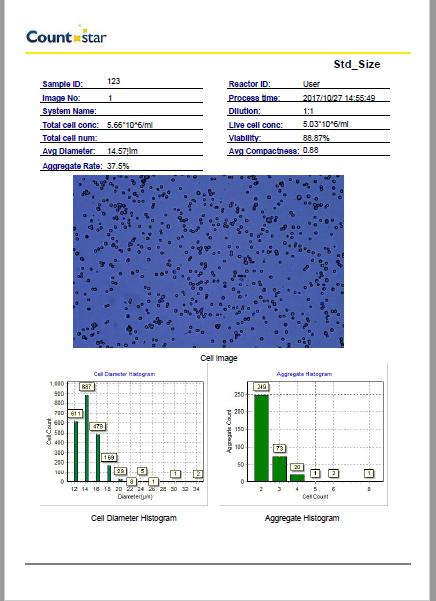

3. Diversity of Data Formats: PDF, EXCEL, JPEG；Automated PDF reports

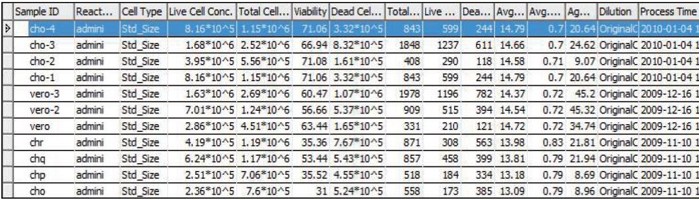

4. Sustainable Data ManagementUser, Time, Parameter, Result……

Specifications

Technical Specifications
Model:	IC 1000
Test Item：	Concentration, Viability, Diameter, aggregation etc.
Sample Density：	1x104 - 3x107/ml
Sample Diameter：	5-180μm
Imaging element:	5 Megapixel，CMOS camera
Objective magnification:	2.5 X
Sample Volume：	20μL
Test Time：	<20s
Output：	JPEG/PDF/EXCE

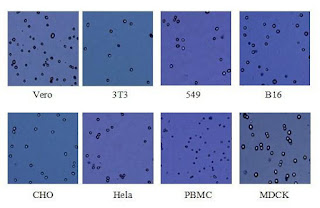

Applications1. Trypan blue cell counting and viability

Countstar is applicable to cells with diameter between 5-180um, like mammalian cell, insect cell, and some planktons.

2. Aggregated Cell Analysis

Some primary cells or subculture cells are prone to aggregate when poor culture state or excessive digestion, thus causing great difficulty in the counting of cells. With the Aggregation Calibration Function, Countstar® can realize a stimulation calculation of aggregations to ensure accurate cell counting and obtain the aggregation rate and the aggregation histogram, thus providing basis for experimenters to judge the state of cells.Countstar can count the aggregated cells one by one.

HepG2

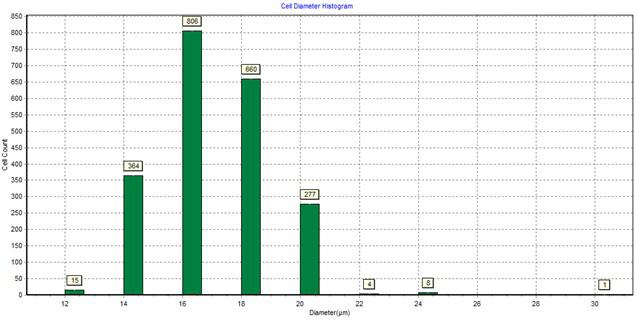

3. Cell Size Analysis

The change of cell size is a key feature and is commonly measured in cell research. Normally it will be measured in these experiments: cell transfection, drug test and cell activation assays.

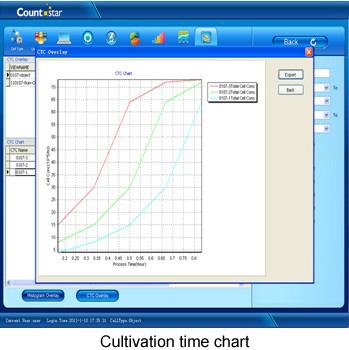

4. Overlay Analysis of the Cell Growth Curve

In cell culture, the study of pharmacology and toxicology often requires the overlay analysis of multiple growth curves in order to find the optimal culture conditions or the best dosage. Countstar® can directly call up multiple growth curves for comparative analysis.
