Countstar® Altair Advanced Cell Analyzer for Industry

Product

Posting date : Aug 24, 2018

Click enlarge Image

Membership

Free Member Scince Aug 23, 2018

FOB Price

10000-15000USD

Min. Order Quantity

Supply Abillity

Unlimited

Port

Ningbo

Payment Terms

T/T

Package

Pallet

Keyword :

Cell Analyzer

Category

MISCELLANEOUS | Optical ph | Instrument | Instrument

Contact

Frank Huang

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

Countstar

HS-CODE

9018-90

Package & Delivery Lead Time

Package

Pallet

Delivery Lead Time

1-3 months

Detailed Description

Product OverviewThe Countstar® Altair is designed based on the classic Trypan Blue exclusion principle, integrating the advanced “fix focus” optical imaging bench, the most advanced cell recognition technologies, and software algorithms. Enable to get the information of cell concentration, viability, aggregation rate, roundness, and diameter distribution by one run.To meet the cGMP regulation, Countstar® Atair software, equipped with a powerful data management function, offers a 4-level user access control feature, e-signatures, and log files that is in compliance with the FDA 21 CFR Part 11 regulations.

Key Benefits of Countstar Full Automated Cell Counter

All in one design, integrated Computer/touch screen
Automatic Detection 5 Samples in one single test sequence, 2.5 min /5 sample.
Unrivaled "Fixed focus" patent, no manual focusing.
Powerful and user-friendly Data Management
Security User Login and 4 level user access management
FDA CFR 21 Part11 Ready
IQ/OQ/PQ Service

Product featureAutomated, Fast and Easy OperationOnly need three steps to get the test result.

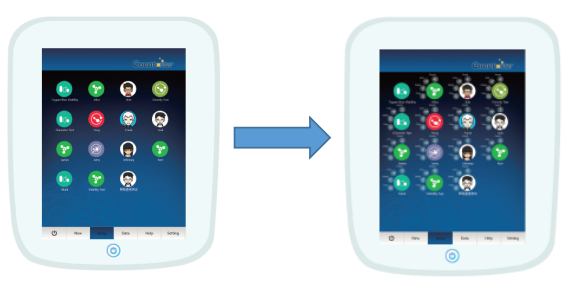

Touch Screen with Flexible Experiment Assay Management System

“App-like" interface. Allow to add multiple Experiment Assays for different operators

Most Advanced Imaging Technology

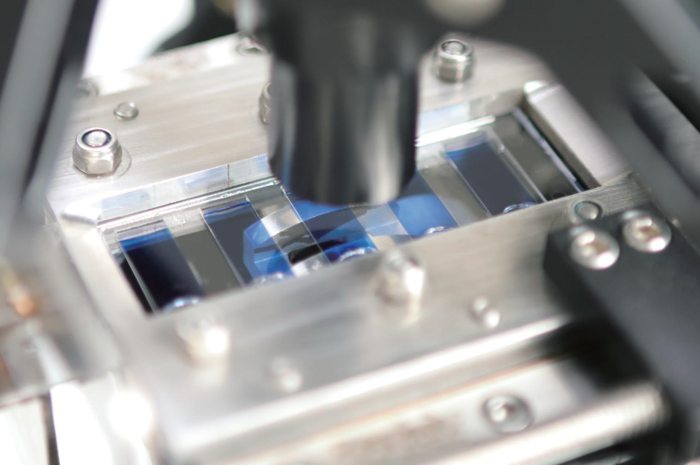

1. Unrivaled "Fixed focus" patentThere is no need for the user to focus under any circumstances: replacing the slide, changing the sample slot, different regions of interest selected. Results are highly reproducible and an interference by the operator is excluded

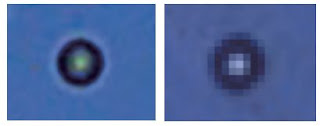

2. 5 megapixel industrial colour camera to provide high resolution images

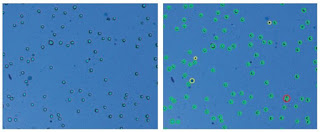

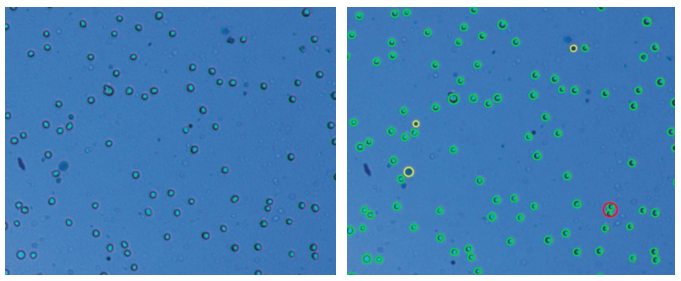

Countstar Altair3. Our protected image recognition algorithms analyze more than 20 single parameters of each object classified

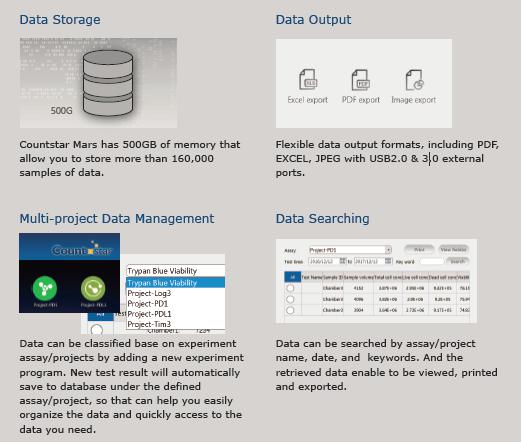

Powerful and User-Friendly Data Management

FDA 21 CFR Part 11Make a detailed record of any changes, edits, deletions, adjustments, etc. Electronic records cannot be deleted, including administrators. Electronic records include date, time, username, machine serial number, and user's actions

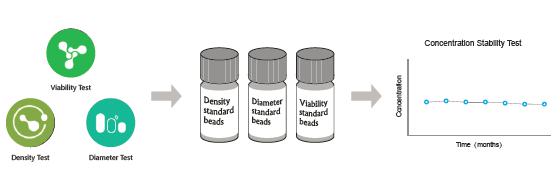

Instrument Stability Test (IST)

Shanghai RuiYu BioTech has established a comprehensive validation plan that test and monitor the stability and accuracy of the result of Countstar Mars to guarantee the data is reliable in the daily use. Shanghai RuiYu BioTech has deigned an examination program (Instrument Stability Test, IST) to make sure that performance of instruments meets the requirements of cGMP regulated environments. IST will examine and calibrate the instrument once in a period of time to prove that the result measured by this instrument remains accurate and stable after years of use.

Specifications

Technical Specifications
Model:	Countstar Altair
Diameter range:	3μm ~ 180μm
Concentration range:	1×104 ~ 3×107/mL
Objective magnification:	2.5x
Imaging element:	5 megapixel,CMOS camera
USB	1×USB 3.0 1×USB 2.0
Storage:	500GB
Power supply:	110–230 V/AC, 50/60Hz
Screen:	10.4 inch touchscreen
Weight:	13kg (28lb)
Size (W X D X H):	Machine: 254×303×453mm Package size: 430×370×610mm
Operating temperature:	10℃ ~ 40℃
Working humidity:	20% ~ 80%

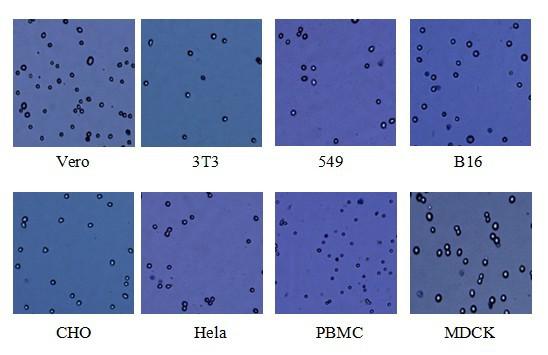

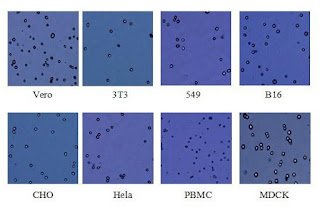

ApplicationsDevelopment of bioprocessing in antibody Production during the whole ProcessDuring the whole process from antibody R&D to production, there are many steps need to carry out cell based assay to evaluate the process or quality control. Such as the total cell concentration and viability will define the status of the cell culture.Trypan blue cell counting and viabilityCountstar is applicable to cells with diameter of 5-180um, like mammalian cell, insect cell, and some planktons.

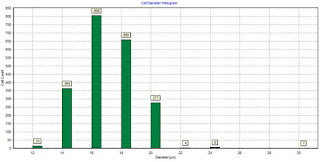

Cell Size Analysis

The change of cell size is a key feature and is commonly measured in cell research. Normally it will be measured in these experiments: cell transfection, drug test and cell activation assays.

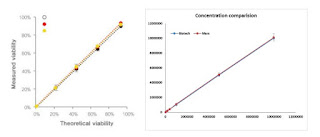

Countstar Biotech VS Countstar Altair

Countstar Altair Data easily comparable with a Countstar Biotech
