tank bottom angle valve
Posting date : Jun 18, 2019
Membership
Free Member Scince Jul 30, 2018
FOB Price
150$
Min. Order Quantity
1
Supply Abillity
50000
Port
shanghai
Payment Terms
T/T
Package
wooden case
Keyword :
Category
Contact
Esther Zhang
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
quanshun
HS-CODE
8481-80
Package & Delivery Lead Time
Package
wooden case
Detailed Description

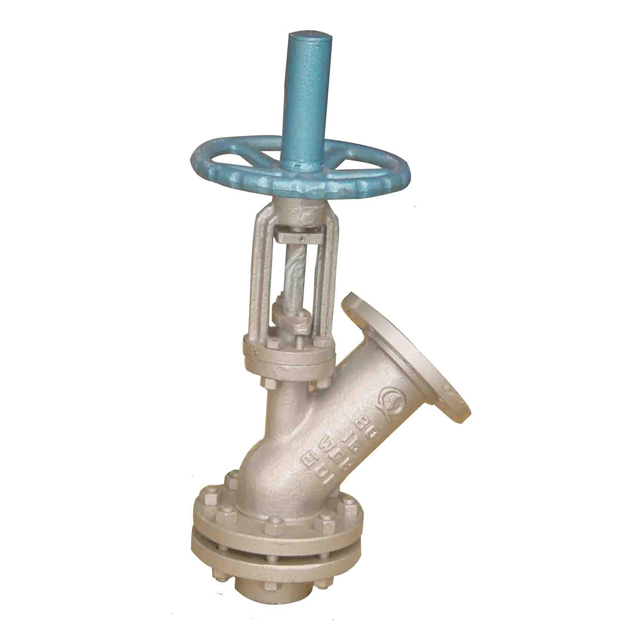

The tank bottom angle valve(referred to as Tank valve, Angle bottom valve, Bottom drain valve, Flush mount valve etc) are designed to provide drainage and dead space free shutoff for reactors, vessels, autoclaves and storage tanks. The dead space free shutoff is accomplished by placing the valve seat flush with the bottom of the vessel. This eliminates any buildup of product within the vessel nozzle itself.Features1.This tank bottom angle valve is manufactured in integrated  Y type structure;2.Both Rising Disc Type (the valve is opened into tank) and lowering disc type ((the valve is opened into valve) can be designed by Quanshun valve;

3.Crust breaking for disc rising type, so anti_scaling function is avaliable.4.The sealing surface of the valve seat and the valve disc is made of over laying cemented carbide or painted with tungsten carbide. The auxiliary line sealing guarantee the reliability of the sealing performance.

5.Air cylinder operation is usual for saving labor.Technical ParametersSize: 2”~14”   DN50~DN350Pressure:Class 150~Class 600  PN1.0~PN16Body material :WCB,CF8, CF8M, CF3, CF3M etcConnection Type:Flange, weld etc.Driving method : Manual ,pneumaticApplicationsAlumina industryChemicalSteel industryMining industryPharmaceutical industryFine chemical process
