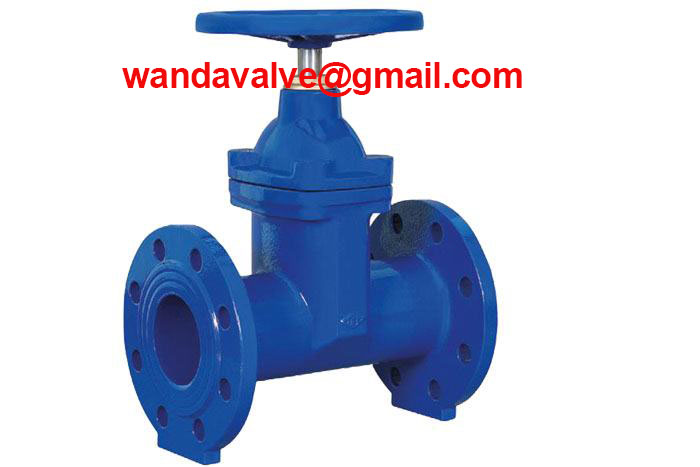

DIN Cast Iron F5 Resilient Gate Valve
Posting date : Dec 01, 2017
Membership
Free Member Scince Dec 01, 2017
FOB Price
USD14
Min. Order Quantity
10
Supply Abillity
20000
Port
Wenzhou
Payment Terms
tt
Package
plywood case
Keyword :
Category
Contact
Michael Lin
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
wanda
Model Number
Z41
HS-CODE
8481-80
Package & Delivery Lead Time
Package
plywood case
Delivery Lead Time
25 days
Detailed Description

Specification Details

  • Design Std:EN 1171
  • Size:DN40--DN1000
  • Pressure Rating: PN16,PN10
  • Seat: NBR,EPDM, VITON,PTFE,NEOPRENE
  • Face to Face: EN 558 Series 15(DIN 3202 F5)
  • Pressure Testing:DIN EN593/DIN EN12266-1
  • Body/Bonnet: Ductile iron EN-GJS-500-7/EN 1563
  • Flange Ends: DIN EN1092-2/Type B
  • Working temperature:-10 to +120°C



Valve Description Resilient-seated gate valves according to European standard EN 1171 with straight, smooth and non-constricted passage. Internally enamel, externally EKB. For water, air and non-aggressive gases
