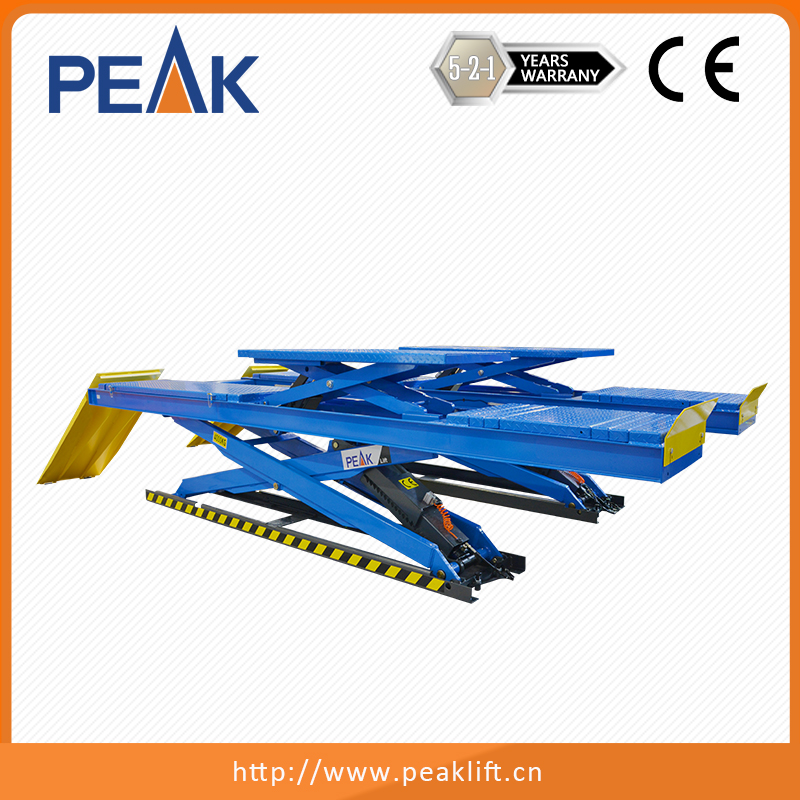

DX-4000A 9000Lbs Alignment Double Scissors Automotive Hoists
•Capacity:4000KG
•Safety operating system controlled by 24V voltage.
•Remote control for secondly scissors.
•Double concealed scissors structure, with superior synchronization performance.
•Adjustable turntable positions
•Air released mechanical safety lock is more convenient and safer for automotive chassis maintenance
•Extra long rear slip platewith ball sets, Suitable for all kinds of vehicles.
•Low-level alarm tone brings more secure.•Self-lubricating UHMW polyethylene sliders and bronze bush.
•Anti-explosion oil circuit device.
• Long warranty:5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.); 1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
| Model |
DX-4000A |
| Style |
Scissors Lift |
| Lifting Capacity |
4.0T (9,000lbs) |
| Lifting Time |
55 Seconds |
| Lifting Height |
1870mm (73 5/8") |
| Minimum Height |
280mm(11") |
| Runway Length |
4800mm(189") |
| Overall Width |
2190mm(86 1/4") |
| Runway Width |
625mm(24 5/8") |
| Overall Length(With Ramps) |
6636mm(261 1/4") |
| Second Lifting Height |
420mm(16 1/2") |
| Second Scissors Length |
1606-1940mm(63 1/5" - 75") |
| Gross Weight |
1797kg(3,961lbs) |
| Motor |
4.0HP |
| Packing Dimension |
4914 X 760 X 1048mm |
| QTY of Container |
6 Units/20'GP |
| 12 Units/40'GP |
