jaw crusher for stone crushing plant
Posting date : Jun 02, 2021
Membership
Free Member Scince Jul 28, 2017
Min. Order Quantity
1set
Supply Abillity
100set
Port
shanghai
Payment Terms
T/T or L/C
Package
N/M
Keyword :
Category
Contact
Peter Duan
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
sinonine
Model Number
PE/PEX
HS-CODE
8474-20
Package & Delivery Lead Time
Package
N/M
Delivery Lead Time
15-30days
Detailed Description

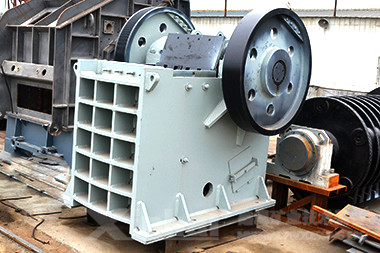

PE/PEX Series Jaw Crushers is of single toggle type with features of simple structure, easy maintenance, stable function, low operation cost, great crushing ratio. It is used widely in mine, metallurgy, construction, road, railway, hydro-electric, and chemistry. It is suitable for the primary or secondary crush of large rock with compressive resistance no more than 320MPa. PE type is used for primary crushing, and PEX type is used for secondary and fine crushing.

Features and technology advantages of jaw crusher
1. Deep crashing cavity, no unreachable corner in cavity, higher feeding capacity and productivity.
2. Great crushing ratio, homogeneous output size.
3. Discharging adjustment by shim, reliable and convenient, broad range of adjustment, more flexibility.
4. Safe and reliable lubrication system, easy change spare parts, less effort in maintenance.
5. Simple structure, reliable work, low cost in operation.
6. Less energy consumption: one machine can reduces 15%-30% energy consumption, and the whole system can reduces by a half.
7. Broad range of discharging adjustment meets variable requirement of customers.
8. Low noise, little dust.

Working principle of jaw crusher
Powered by electrical motor, movable jaw is set in reciprocate movement at predetermined track through the transmission system of driving wheel, Vee-belt, and eccentric roll-driving shaft. The material is crushed in the cavity composed by fixed jaw plate, movable plate, and side protecting plate, and discharged the end product from the bottom discharge opening.This series jaw crusher adopts curve-movement compression way to crush the material. electric motor drives belt and belt wheel to set the movable plate in moving up and down through eccentric shaft. When the movable jaw rises, the angle formed by toggle and movable plate will be wider, and the jaw plate will be pushed approaching the fixed plate. In this way, the materials are crushed through compressing, grinding, and abrading. When the movable plate descends, the angle formed by toggle and movable plate will became narrower. Pulled by rod and spring, the movable plate will move apart from toggle, so the crushed materials can be discharged from the bottom of the crushing cavity. Consecutive movement of motor drives the movable plate in circular crushing and discharge to realize large-quantity production.

Specification of jaw crusher
Model
Size of feed Opening
(mm)
Discharge range Opening
(mm)
Max. feed size
(mm)
Capacity
(t/h)
Power
(kw)
Overall dimension
(L×W×H)(mm)
Weight
(kg)
PE150×250
150×250
10 ~40
125
2~6
5.5
875×745×935
1100
PE200×350
200×350
10 ~50
160
6~10
7.5
1080×1060×1088
1600
PE250×400
250×400
20 ~60
210
8~16
15
1108×1090×1392
1850
PE400×600
400×600
40~100
350
14~36
30
1650×1748×1520
5800
PE500×750
500×750
50~120
400
30 ~80
45
1900×1876×1821
9000
PE600×900
600×900
75~200
480
56~192
75
2280×2245×2320
18700
PE750×1060
750×1060
80-180
630
72-198
110
2526x2410x2780
28000
PE900×1200
900×1200
95~265
750
186~398
110
3335×3182×3025
50000
PE1000×1200
1000×1200
130~280
850
190~420
132
3889x3282x3530
52000
PE1200×1500
1200×1500
160~320
1000
280~700
160
3800×3040×4150
82000
PEX150×750
150×750
10 ~40
120
8~25
15
1210×1572×1045
2800
PEX250×750
250×750
20 ~50
210
12-40
30
1450×1785×1260
5500
PEX250×1000
250×1000
20 ~50
210
15 ~50
30
1550×1990×1370
6500
PEX250×1200
250×1200
20 ~60
210
20 ~60
45
1650×2170×1465
9000
PEX300×1300
300×1300
25 ~65
250
20 ~80
55
1980×2456×1740
11500
