UV Protected Polycarbonate PC Plastic Roofing Panel
Posting date : May 25, 2017
Membership
Free Member Scince May 24, 2017
FOB Price
USD2.20~5.80/SQM
Min. Order Quantity
500 SQM
Supply Abillity
1800 Tons/Year
Port
NINGBO, SHANGHAI
Payment Terms
T/T, L/C, Paypal
Package
PE Protective Film
Keyword :
Category
Contact
Young Zhou
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
SHENGHANG
Model Number
SH-HT06
HS-CODE
3920-61
Package & Delivery Lead Time
Package
PE Protective Film
Delivery Lead Time
7~10 Days
Specifications

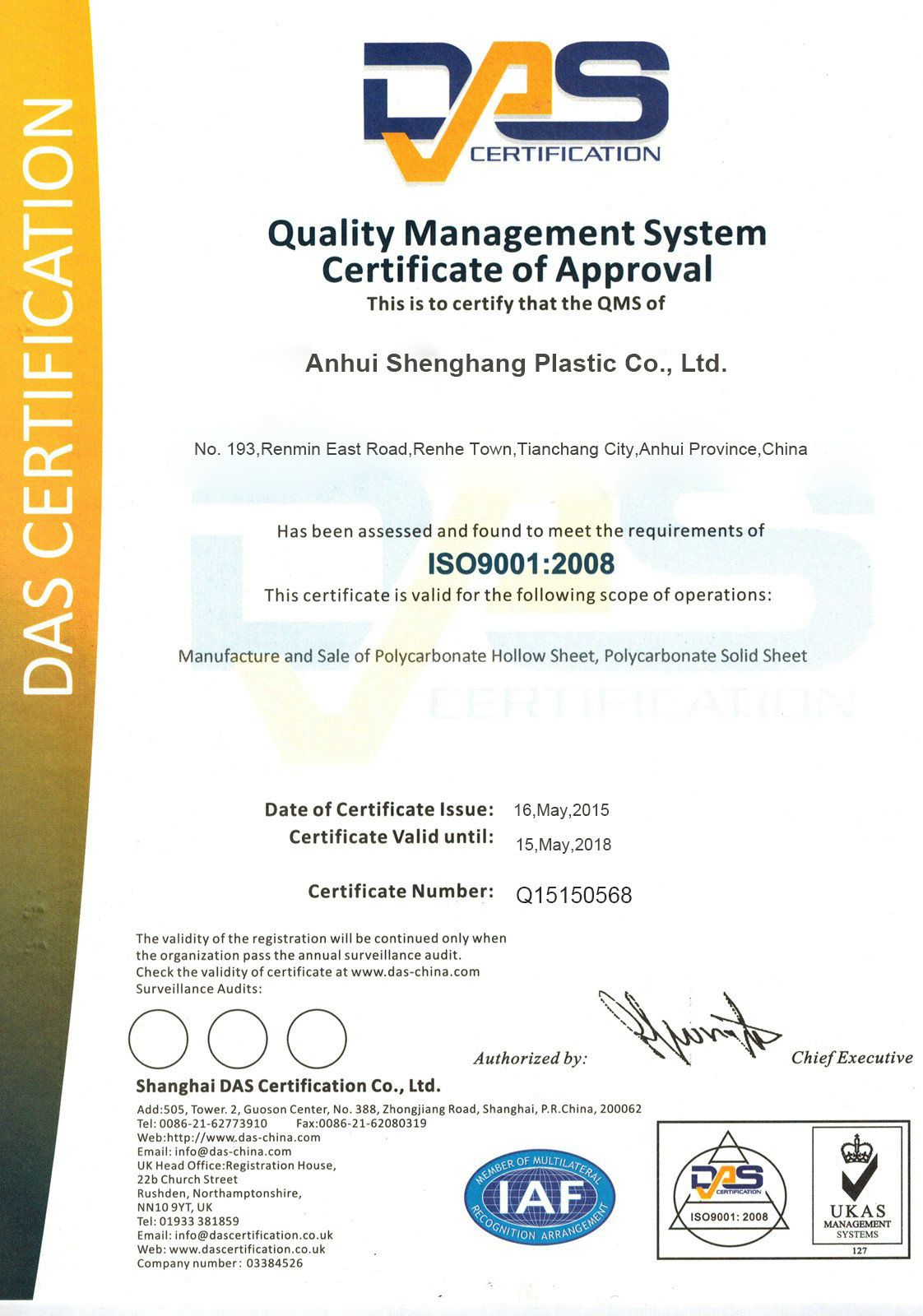

Type of Certification
DAS CERTIFICATION
Reference no.
Q15150568
Name.
ISO9001:2008
Issued By
Shanghai DAS Certification Co., Ltd.
Start Date (validity period)
2015-05-16
End Date (validity period)
2018-05-15
Scope
Manufacture and Sale of Polycarbonate Hollow Sheet,Polycarbonate Solid Sheet

Detailed Description

Polycarbonate hollow sheet has the characteristics of light weight, high strength and good thermal insulation properties.Twin-wall polycarbonate hollow sheet has outstanding light transmittance, easy to install and process, it is widely used in ordinary architectural lighting needs, such as building roofs, greenhouses, parking sheds and so on.The advanced UV co-extrusion technology ensures the twin-wall sheets strong UV resistance, which can meet the 10 years quality assurance under the outdoor conditions.



SPECIFICATION

1) Thickness:3mm~12mm (Mainly 4mm/6mm/8mm/10mm)

2) Standard width and length:2100*6000mm & 2100*5800mm &2100*11800mm

3) Dimensions and Colors both can be customized.

4) Both sides covered with PE protective film.The Printing on PE film can be customized.



QUALITY GRADE

GRADE QUALITY MATERIAL UV COATING WARRANTY
A BEST 100% VIRGIN 50 UM 10 YEARS
B COMMON 70% VIRGIN 30 UM 5 YEARS



FEATURE

1) Light weight:Only 1/12 of the weight of glass of the same thickness

2) High impact strength:80 times that of glass, 15 times that of acrylic sheet

3) Fire retardancy:Rated class B1

4) Good Light transmission:Up to 85%

5) With UV protection and thermal insulation

6) Excellent physical, mechanical, and electrical properties

7) Temperature resistance range:-40 ~ +120°C



TECHNICAL DATA

Thickness Structure Weight Min.Bend Radius(mm) K value
(mm) (kg/sqm) (W/M2K)
3 Twin-wall(Rectangle) 0.9 525 4.22
4 1.0 700 4.00
5 1.1 875 3.80
6 1.3 1050 3.60
8 1.5 1400 3.30
10 1.7 1750 3.00
8 Triple-wall(Rectangle) 1.6 1400 2.92
10 1.8 1750 2.70
12 2.0 2100 2.60
14 2.4 2450 2.40
16 2.7 2800 2.27



LOADING QTY.

Thickness(mm) Specification(mm) Quantity for 20GP Specification(mm) Quantity for 40HQ
(PCS) (PCS)
4 2100*5800 550 2100*6000 1300
6 2100*5800 380 2100*6000 880
8 2100*5800 290 2100*6000 670
10 2100*5800 235 2100*6000 535



APPLICATION

1.Awning for stadium, bus stop, airport.

2.Lighting system for passage, walkway, entrance of subway.

3.Agriculture greenhouse, canopy for vegetables, animals, flowers.

4.Heat insulation, soundproof for expressway, buildings.

5.Bus stop, advertising lamp box, canopy for ATM.

6.Lighting decoration for workshop, commercial canopy, villas.

7.Lighting system for skylight, cellar, dome.

8.Decoration panel for inner/outer wall, roof.
