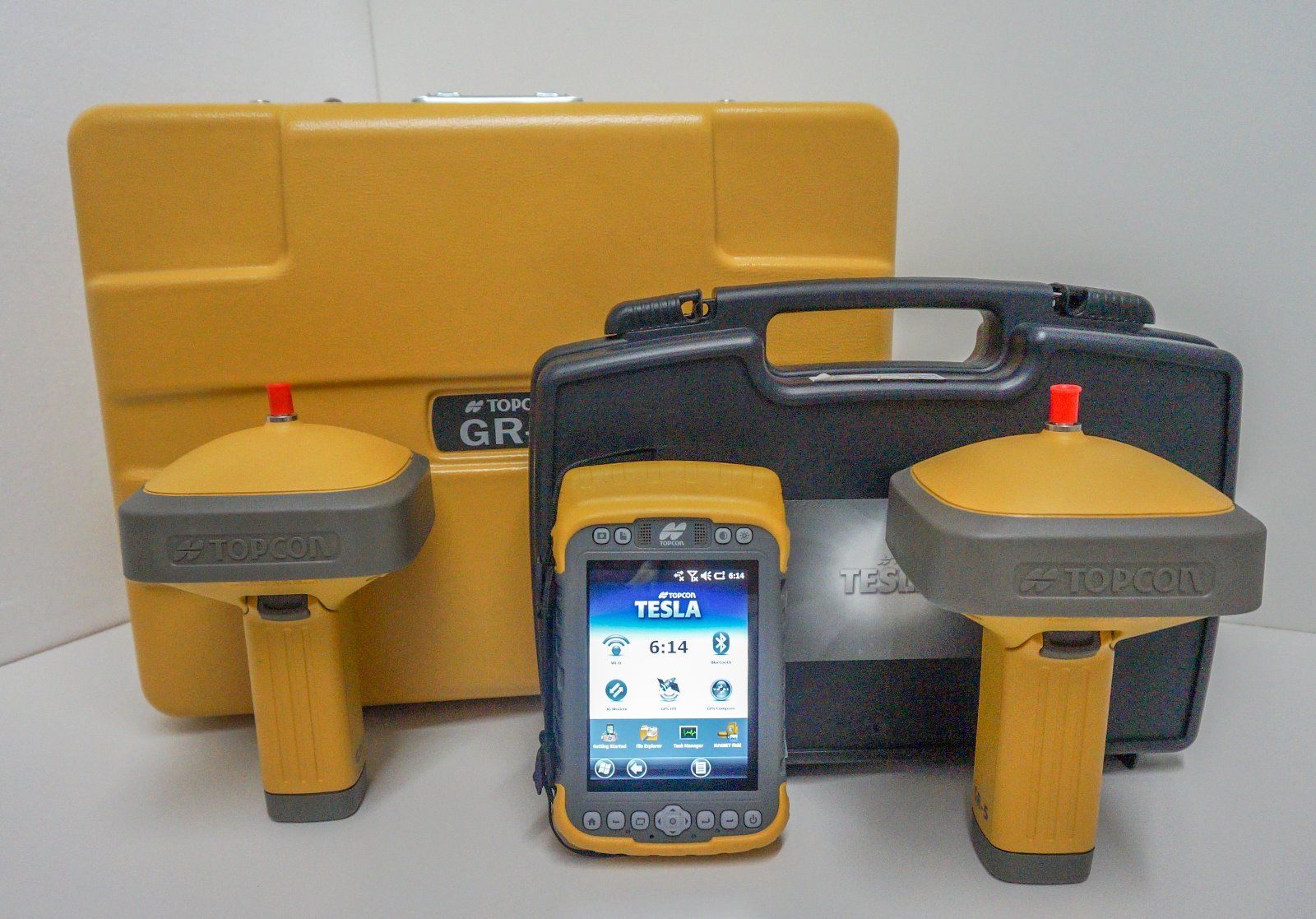

Topcon GR-5 RTK Base & Rover Glonass GPS System With Tesla Tablet Data Collector

본문 바로가기

Home > Product > Topcon GR-5 RTK Base & Rover Glonass GPS System With Tesla Tablet Data Collector
Topcon GR-5 RTK Base & Rover Glonass GPS System With Tesla Tablet Data...
Posting date : May 18, 2017
Free Member Scince May 18, 2017
FOB Price
15600 US$
Min. Order Quantity
1 unit
Supply Abillity
1 - 4 Units
Payment Terms
T/T, PayPal, Western Union
Keyword :
Danie Girlang
Product Detail
Company Info
Quick Detail
Place of Origin
Indonesia [ID]
Brand Name
Package & Delivery Lead Time
Delivery Lead Time
4 - 6 Days
Detailed Description
- 226-Channel Vanguard Technology™ with Universal Tracking Channels
- Advanced Fence Antenna™ Technology
- High accuracy RTK with updates up to 100Hz
- Fully integrated radio and cellular configuration- 32GB SDHC storage support
- Dual hot-swappable batteries providing a full day of operation
Topcon GR-5 Specs:
- Signals Tracked: GPS, GLONASS, QZSS, SBAS, Galileo* and Beidou (BDS)*
- Number of Channels: 226
-Channel Vanguard Technology with Universal Tracking Channels
- Antenna Type: Integrated Fence Antenna with Ground Plane
- RTK: H: 10mm + 1.0ppm,V: 15mm + 1.0ppm
- Static: H: 3mm + 0.5ppm, V: 5mm + 0.5ppm
- Radio Type: 450-470mhz Integrated UHF TX/RX,
- Base Radio Output: 1.0W, user selectable
- Cellular Communications: Integrated HSPA or CDMA (optional)
- I/O Communications: Class 2 Bluetooth, USB and SerialData and Memory
- Memory: Removable SD/SDHC Memory Card (up to 32GB)
- Data Update/Output Rate: 1Hz – 100Hz Selectable
- Real Time Data Output: TPS, RTCM SC104, CMR, CMR+- ASCII Output: NMEA 0183 version 2.x and 3.0
- Enclosure: Magnesium I
-Beam Housing
- Operating Temperature: -22ºF to +158ºF (-30ºC to +70°C**)
- Dust/Water Protection: IP66- Shock Rating: 2m pole drop to concrete IEC 60068-2-29, IEC 60068-2-27- Vibration Rating: Compliance with MIL-STD 810F - 514.5 - Cat.24
Features include:
- Large 5.7” VGA color touchscreen
- Hybrid Positioning capable
- IP67 environmental rating
- 3.5G cellular module (optional)
- Windows Mobile® 6.5.3 Professional operating system
- CPU: 806 Mhz PXA320 Processor
- OS:  Microsoft® Windows Mobile® 6.5.3 Professional Multiple languages
- Memory: 256 MB RAM 4GB flash storage SD/SDHC slot, user accessible
- Display:  5.7” (145 mm) color VGA LCD (640 x 480) Portrait or landscape orientation
- Keypad:  15 control buttons (6 user reassignable) Five
-way directional navpad Adjustable LED backlit keys
- Camera (GEO Models):  3.2MP resolution with autofocus
- Bluetooth: 2.0 +EDR, Class 1
- Wi-Fi: 802.11b/g- GSM: Penta-band 3G GSM/GPRS/EDGE/HSDPA 850/900/1800/1900/2100 MHz (Geo 3G models)
- Data Communication Interface: SMS
- Dimensions: Standard models: 5.3”w x 7.9”l x 2”d (136 mm x 200 mm x 51 mm) Geo models: 5.3”w x 8.6”l x 2”d(136 mm x 220 mm x 51 mm)
- Battery: Intelligent Li-Ion battery 7.4VDC @ 2550mAh, 18.9Whr
- Operating Time: Up to 16 hours- Recharging Time: 2 to 4 hours
