Double-wall FRP Oil Storage Tank

Posting date : May 12, 2017

Click enlarge Image

Membership

Free Member Scince May 11, 2017

FOB Price

200

Min. Order Quantity

600

Supply Abillity

800

Port

Payment Terms

T/T

Package

Keyword :

double-wall oil tank

Category

METALS | Iron and s | Wire of ir | Wire of ir

Contact

yan dong

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

Model Number

HS-CODE

7217-30

Package & Delivery Lead Time

Package

Delivery Lead Time

Detailed Description

Double-wall FRP oil storage tank, or double-wall oil tank for short, is made by adding a fiber reinforce plastic layer on the single-wall steel tank. There is a high-efficient leak detection device set between the inner steel tank and outer FRP tank to supervise the whole process for 24 hours. Once leak accidents occur, the sensor of the leak detection device can monitor the fluid level and send an alert to ensure the safe use of the oil tank.

The high safety and environmental protection performance of double-wall FRP oil storage tank, indirectly, drives cost down for customers. Simultaneously, double-wall oil tank has service life at least five times longer than ordinary oil tank.

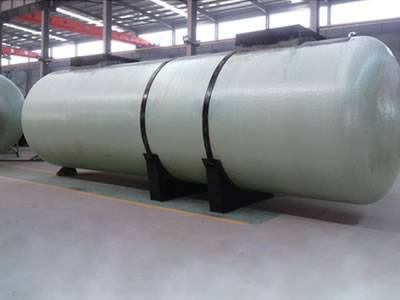

There is a double-wall FRP oil storage tank with two saddle supports.

DFOST-01: Suitable accessory can be offered with double-wall FRP oil storage tanks.

This is a double-wall FRP oil storage tank in green.

DFOST-02: Double-wall oil tank has a fiber reinforce plastic layer outside single-wall steel tank.

This picture shows a schematic diagram of the double-wall FRP oil storage tank.

DFOST-03: Many small parts make a integral double-wall oil tank system.

Specification - double-wall FRP oil storage tank
Model	Nominal volume (m3)	Actual volume (m3)	Body size (mm) diameter × length × thickness		Weight (kg)	Corrosion allowance (mm)
		Actual volume (m3)	Inner layer	Outer layer	Weight (kg)	Corrosion allowance (mm)
DFOST-10	10	11.2	DN 1600 × 2800 × 8	DN 1650 × 2835 × 6	3098	1
DFOST-18	18	19.3	DN 1900 × 3200 × 8	DN 1940 × 3410 × 6	5460	1.5
DFOST-20	20	21.15	DN 2200 × 4550 × 8	DN 2220 × 4603 × 6	6135	1.5
DFOST-25	25	25.2	DN 2400 × 5060 × 8	DN 2460 × 5120 × 6	8072	1.5
DFOST-30	30	31.1	DN 2600 × 6040 × 8	DN 2675 × 6076 × 6	9516	2
DFOST-50	50	50.3	DN 2800 × 9136 × 8	DN 2850 × 9162 × 6	10952	2
Design life: 30 years. Design temperature: -19 °C - 60 °C. Load factor: 0.85 Weld factor: 0.85. Note: Other sizes can be customized to meet your needs.

Features

Firm structure & high strength: Inner wall adopts special steel plate, while outer wall is fiber reinforce plastic layer. Both of these two layers have higher strength than ordinary tank walls.
Advanced detection device & digital control: Leak detection device can monitor the fluid level for 24 hours and send an alert when a leak accident occurs to ensure the safe use of the oil tank.
Easy to install & cost-effective: The integral double-wall construction makes handling and installation easier and safer, which results in cost savings.
Save energy & protect environment: Using double-wall FRP oil storage tank, you can avoid loss caused by energy leak and protect environment.

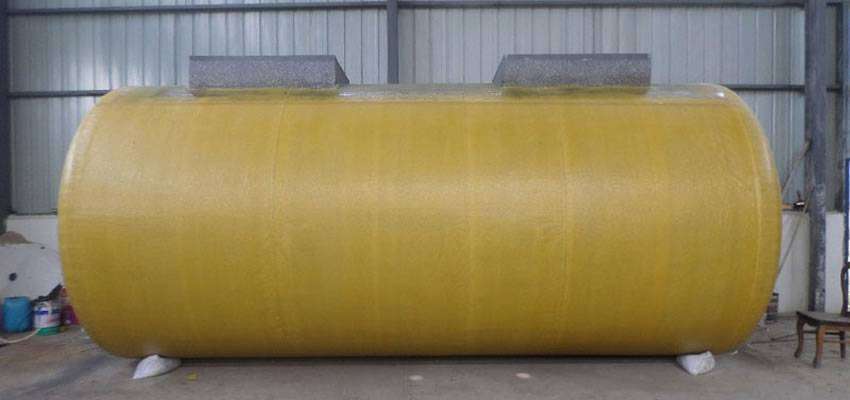

There is a double-wall FRP oil storage tank with yellow coated.

DFOST-04: Double-wall FRP oil storage tank can be produced into different sizes and colors.

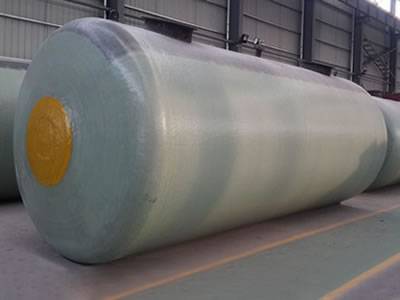

Double-wall FRP oil storage tanks are stored in the factory.

DFOST-05: Double-wall FRP oil storage tank is well-structured.

A double-wall FRP oil storage tank is packed on the truck.

DFOST-06: Double-wall FRP oil storage tank is easy to handle.

ApplicationDouble-wall FRP oil storage tank is generally installed in filling stations, water source protection and recharge areas to prevent liquid leaking and protect environment.

Package

Covered with plastic film and waterproof cloth.
Placed on the sleepers and rubber isolation bearings.
