Cat 5e Riser Lan Cable Ethernet Computer Solid Bare Copper 305 Meters

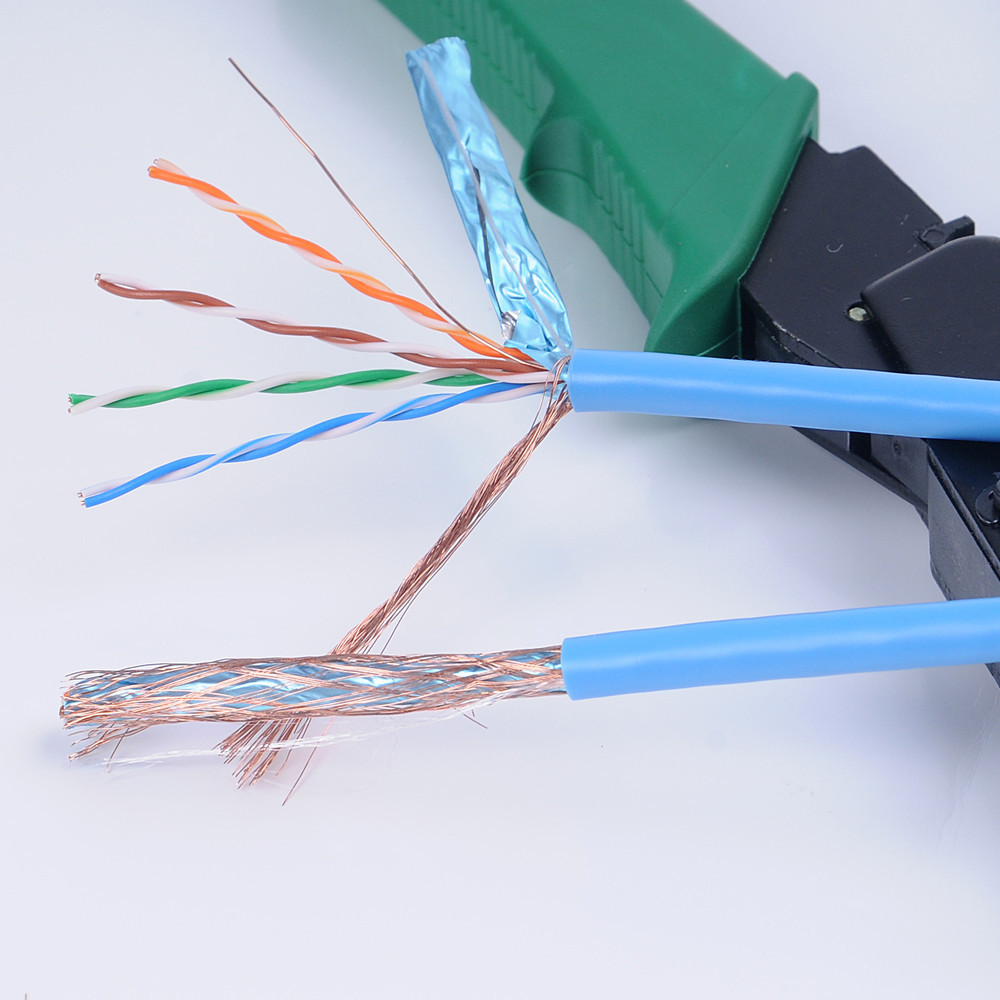

FTP Cat5e riser lan cable Network Cable is used in structured cabling for computer networks, which consists of four pairs foiled shielding twisted solid bare copper. This is suitable for voice, video, data, ATM, token ring, and direct networking.While the base standard set by TIA/EIA for cat5E is 100 MHz, our cat5E cable supports frequencies up to 350 MHz and for 10/100/1000 Base-T Ethernet.FTP Cat5e Network Cable has an excellent attenuation and crosstalk characteristics. 350MHz, Verified compliant with EIA/TIA standards by UL , ETL, ISO and TLC.

Item Details:

1000ft of Cat5e bulk Ethernet cables 350MHz with PVC jecket. 4- pair foil shielded twisted pair solid bare copper. This computer network cable that can be used for voice, data or video transmission. The PVC jacket has sequential foot markers that indicate how many feet of cable are left. 350MHz, Verified compliant with EIA/TIA standards by UL and ETL. Its UL listing not only meets, but also exceeds Cat5E 350MHz standards.

High-performance data cable, application structured cable
Exceeds TIA/EIA-568B.2,ISO/IEC 11801 , ETL/UL/TLC listed
350MHz Bandwidth, Fast Ethernet and 155Mbps TP-PMD/CDDI
Cat5e Shielded Twisted Pair
24AWG Solid Copper Conductors
Standards: EIA, TIA 568 B.2-1, UL, ISO, UL/cUL, ETL
Packing: 1,000ft Pull Box
Payment: T/T, Paypal, Western Union, L/C
Delivery: 15 days after deposit
Departure: Qingdao

Physical Construction

Conductor	Solid Bare Copper
Conductor Size	24 AWG
Insulation	HDPE
Insulation Thickness	0.205mm
Outer Diameter	7.0mm ± 0.2mm
Jacket	PVC (UV)
Jacket Color	Black

Electrical Characteristics

Impedance	100Ω±15
Capacitance Unbalance	<=330 (pF/100m)
Delay Skew	<=45 (ns/100m)
Resistance Unbalance	<=5 (%)
Max DC Resistance	93.8(Ω/km)
Rated Temperature	-40°C to +50°C
Standard Certification	CMX

Electrical Performance

Frequency	Attenuation	Next	PSNext	ELfext	PSelfext
	Max.	Min.	Min.
1	2	65.3	62.3	63.8	60.8
4	4.1	56.3	53.3	51.7	48.7
10	6.5	50.3	47.3	43.8	40.8
20	9.3	45.8	42.8	37.7	34.7
25	10.4	44.3	41.3	35.8	32.8
31.25	11.7	42.9	39.9	33.9	30.9
62.5	17	38.4	35.4	27.8	24.8
100	22	35.3	32.3	23.8	20.8
200	32.4	30.8	27.8	18.0	15.0
310	41.8	27.9	24.9	14.2	11.2
350	44.9	27.1	24.1	13.1	10.1
