Cat5e Cable UL Listed 1000 ft Cat5E UTP Solid Plenum CMP-Rated Cable - Grey
UTP CAT5E Cable is 4 pairs unshielded twisted pair solid network cable for commerce or residence. This cable is used for voice, video, data, and direct networking.CAT5E cable was defined in ANSI/TIA/EIA-568-A and in TSB-95. High quality cat5e cable was tested up to 350 MHz bandwidth capacity with enhanced voice, data and security capabilities, 1000 foot length cable in easy pull box for smooth installation . Our cat5e cable was verified compliant with EIA/TIA standards by UL , ETL, ISO and TLC. Its UL listing not only meets, but also exceeds Cat5E 350MHz standards.
Item Details:

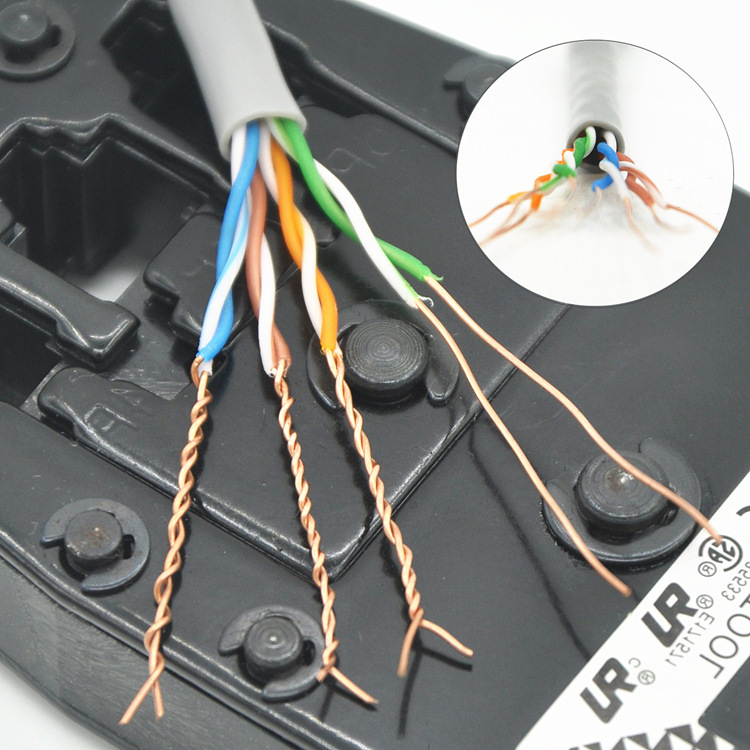

1000ft of grey Cat5e bulk Ethernet cables 350MHz with PVC jecket. 4- pair unshielded twisted pair solid bare copper. This computer network cable that can be used for  voice, data or video transmission. The PVC jacket has sequential foot markers that indicate how many feet of cable are left. 350MHz, Verified compliant with EIA/TIA standards by UL and ETL. Its UL listing not only meets, but also exceeds Cat5E 350MHz standards.
  • 350MHz Bandwidth for Data Applications
  • Cat5E Unshielded Twisted Pair
  • 24AWG Solid Bare Copper Conductors
  • Easily Identified Color-Striped Pairs
  • Excellent attenuation and crosstalk characteristics
  • CMR,PVC Jacket
  • Standards: EIA, TIA 568 B.2-1, UL, ISO, UL/cUL, ETL
  • Packing: 1,000ft Pull Box
  • Payment: T/T, Paypal, Western Union, L/C
  • Delivery: 15 days after deposit
  • Departure: Qingdao

Features:

Physical Construction
Conductor
Solid bare copper
Conductor Size
24 AWG
Insulation
PE
Insulation Thickness
0.203mm
Outer Diameter
5.0mm ± 0.1mm
Jacket
PVC
Jacket Color
Available in various colors

Electrical Characteristics
Impedance
100Ω ±15
Capacitance Unbalance
<=330 (pF/100m)
Delay Skew
<=45 (ns/100m)
Resistance Unbalance
<=5 (%)
Max DC Resistance
93.8 (Ω/km)

Electrical Performance
Frequency
Attenuation
Next
PSNext
ELfext | PSelfext
MHz
Max.
Min.
Min.
Min.
Min.
Min.
1
2
20
65.3
62.3
63.8
60.8
4
4.1
23
56.3
53.3
51.7
48.7
10
6.5
25
50.3
47.3
43.8
40.8
16
8.2
25
47.3
44.3
39.7
36.7
20
9.3
25
45.8
42.8
37.7
34.7
31.25
11.7
23.6
42.9
39.9
33.9
30.9
62.5
17
21.5
38.4
35.4
27.8
24.8
100
22
20.1
35.3
32.3
23.8
20.8
200
32.4
18
30.8
27.8
17.7
14.7
300
41
16.8
28.2
25.2
14.2
11.2
350
44.9
16.3
27.2
24.2
12.9
9.9

Baiceton.com is your trusted manufacturer for networking cables and accessories.
Zhoukou Sunshine Cable Co,Ltd is a leading manufacturer and global supplier for Low Voltage Cables and Accessories for the commercial and residential custom installation, Data communication, and Electrical markets.In 2015, Baiceton as a new brand has been created, and become a worldwide brand because of the dedication of our national and regional distributors and our commitment to provide you with the best quality, price, choice, and service in our industry.From now on, our memberships are from USA, Middle East, Southeast Asia and Africa, etc.All of our products comes with a lifetime warranty so that your purchases with us are protected for the long haul.Our factory is also able to assist you with your OEM or private label requirements complied with UL, ETL, ISO, TLC, etc. Plz contact us directly for more information.
