Woven wire mesh filter with common plain dutch or twill dutch weave is extensively used in hot gas, plastic reclamation & fuel filtrations.
Keyword :
Category
Contact
Alice Shan
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
BOEGGER
HS-CODE
7223-00
Package & Delivery Lead Time
Package
Woven wire mesh filter with common plain dutch or twill dutch weave is extensively used in hot gas, plastic reclamation & fuel filtrations.
Detailed Description
Wire mesh filter is one of the most versatile media in the field of surface filtrations. The micron-leveled apertures are uniformly and precisely distributed, giving mesh filter greater accuracy, and can be used to filter the smallest particles in the world including a multitude of industries and applications like plastic & rubber reclamation.
Our metal woven cloth filter is woven by different weave types and materials to suit the market requirements. The common weave types include plain dutch & twill dutch. The former is designed for high flow and the latter for fine filtration. Apart from these two types, custom types are available such as reverse dutch weave & twill weave.
Stainless steel filter mesh is the most popular item for its good properties in resisting high temperatures, corrosions and deformation. Other materials are possible including galvanised steel, copper and other alloy steels.
Custom Wire Mesh Filter is supplied for your special requirements like special material, weave types, dimensions and shapes. Bespoke mesh filter is one of our advantages in servicing our clients. Just email us your inquiry, prompt reply will be received.
Product descriptions:
Item: woven wire mesh filter.Material: stainless steel 316, 304 and other alloy steels.Weave Type: twill dutch, plain dutch.Wire Edge: woven edge (for wire cloth in rolls or disc without rims).Elements: disc, circular ring, cylinder, basket, cone, oval, dome and bespoke shapes.Features & benefits:
Precise aperture for filtration.Extremely high temperature.Excellent corrosion resistance.Washable, reusable & durable.Any bespoke shape available.Applications:
Food & Beverage.Printing.Paper Making.Petroleum & Chemical Industry.Plastic & Rubber Reclamation.Oil & Gas Filtration.Hydraulic Filtration.Frequent weave types for metal cloth filter
Plain dutch weavePlain dutch wire clothWWMF-2 Plain dutch woven wire cloth used for high-flow filtrationPlain dutch woven wire cloth is woven by smaller wire in micron size in the shute direction with the larger wire in the wrap direction. Smaller shute wires provide tight mesh for filtering while larger warp wires provide strength and keep the mesh's shape. This kind of woven wire cloth is used in separating and filtering liquid and slurry product.Characteristics: high flow rate, high temperature and no pressure drop.Twill dutch weaveTwill dutch woven wire cloth filterWWMF-3 Twill dutch woven wire mesh used for fine filtrationTwill dutch woven wire Cloth with shute wires passing over and under two warp wires for gas & liquid filtration applications. Micron size wire provides the smallest apertures for monofilaments of fine filtration like hydraulic oil.Characteristics: ideal for filtration among pharmaceutical and chemical industries as well as diverse types of filter systems such as cartridge and pre-coat.Table 1 Plain dutch woven wire meshItem    Mesh count per inch    Absolute micron retention    Weight(kg/m2)    Cloth thickness (mm)WFP001    80 × 300    32-36    0.98    0.25WFP002    80 × 400    36-45    0.82    0.23WFP003    50 × 250    56-63    1    0.32WFP004    50 × 280    71-75    1    0.32WFP005    40 × 200    75-80    1.3    0.4WFP006    30 × 150    80-100    1    0.5WFP007    24 × 110    100-112    2.5    0.76WFP008    22 × 140    140-170    2.1    0.66WFP009    20 × 150    160-180    1.55    0.5WFP010    20 × 150    170-190    1.6    0.55WFP011    18 × 100    200-210    2.05    0.69WFP012    14 × 110    220-240    2.15    0.72WFP013    12 × 95    240-260    2.3    0.79WFP014    14 × 88    280-300    3.15    0.76WFP015    10 × 90    270-290    2.5    0.93WFP016    12 × 64    280-300    4.1    1.21WFP017    10 × 70    315-335    3    1.04WFP018    8 × 85    330-350    2.5    0.93Table 2 Twill dutch woven wire meshItem    Mesh count per inch    Absolute micron retention    Weight(kg/m2)    Cloth thickness (mm)WFT001    510 × 3600    4-5    0.3    0.06WFT002    400 × 2800    5-6    0.36    0.06WFT003    375 × 2300    6-7    0.39    0.08WFT004    325 × 2300    7-8    0.47    0.09WFT005    260 × 1550    8-10    0.68    0.12WFT006    250 × 1400    11-12    0.68    0.12WFT007    200 × 1400    11- 13    0.75    0.14WFT008    130 × 700    13-15    1.6    0.28WFT009    200 × 1120    15-17    0.95    0.16WFT010    165 × 1400    15-18    0.7    0.15WFT011    165 × 1100    20-21    0.9    0.16WFT012    80 × 700    34-36    1.2    0.26WFT013    40 × 560    71-80    1.7    0.39WFT014    30 × 360    95-106    2.6    0.54WFT015    30 × 250    100-112    3.2    0.65WFT016    20 × 260    110-120    3.1    0.67WFT017    28 × 560    106-112    1.95    0.46WFT018    24 × 300    112-118    2.85    0.63Wire mesh filters are available in diverse shapes to satisfy your unique applications. Disc, cone, cylinder and oval are common shapes. For special ones, bespoke service is welcome.

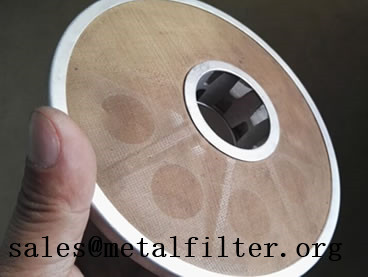

Stainless steel woven mesh filter with oval, disc, rectangle & basketWWMF-4 Woven wire cloth filters with diverse shapesDisc filter mesh - plain dutch weave & single layerWWMF-5 Plain dutch woven wire cloth disk filter in single layerTwill & plain dutch wire disc mesh for oil filtrationWWMF-6 Disk mesh cloth packs with aluminum or stainless steel rim for more rigidity & strengthSintered wire mesh disc filter with multiple layersWWMF-7 Sintered wire cloth filter for plastic processing industryBronze mesh filter supported by perforated discWWMF-8 Bronze mesh disc filterWire mesh filter with small diameterWWMF-9 Wire mesh filter with very small sizeWelded wire mesh filter cylinderWWMF-10 Welded wire mesh cylinder filterStainless steel perforated cone mesh filter with outside fine woven wire cloth.WWMF-11 Cone wire mesh filter supported by perforated cone.Stainless steel 316L filter strainer for pump filtrationWWMF-12 Stainless steel filter strainer forbids large particles into pumpsCylinder wire mesh filter with plain dutch weave for high flow filtrationWWMF-13 Cylinder wire mesh filter with sleeveOval micron metal cloth filter with stainless steel frameWWMF-14 Stainless steel micron metal cloth filterStainless steel mesh filter - twill dutch weaveWWMF-15 Stainless steel mesh filter in rollsWoven filter mesh packed by water-proof paperWWMF-16 Woven filter mesh rolls packed in paperStainless steel 304L belt mesh with woven edgeWWMF-17 Stainless steel 304L belt mesh filter for belt filter machineLeaf filter with 5 layers of woven mesh with different pore sizesWWMF-18 Multilayer woven mesh as leaf filterFilter leaves - disc & rectangleWWMF-19 Mesh filter leaves with diverse shapes
