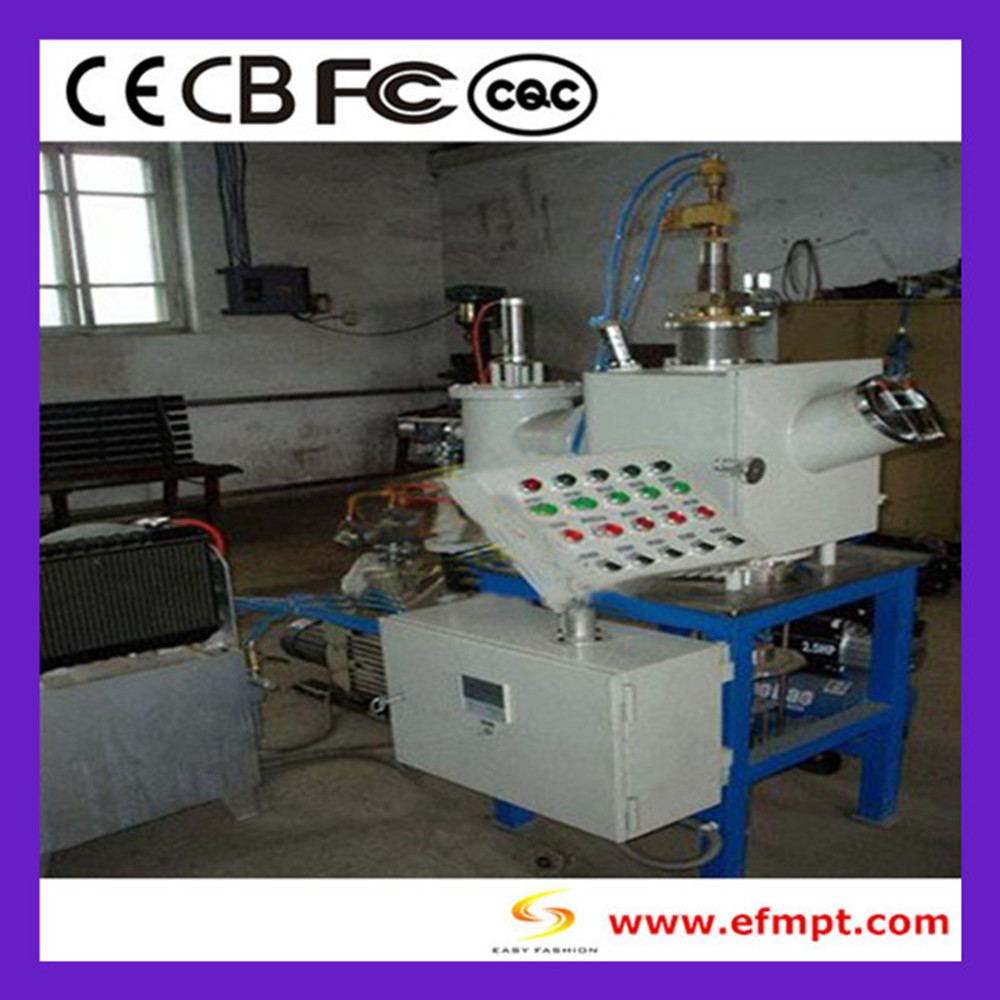

Vacuum Arc Remelting furnace for industry
0 likes
China [CN] Vacuum Arc Furnace
1.usage
Vacuum selfconsuming electrode arc furnace utilizes the premade metal bar stock to smelt in the vacuum or inert atmosphere, applied in the remelting of steel, especially highgrade alloy steel, tungsten, molybdenum, niobium and titanium alloys. It is characterized by high temperature, fast melting and obvious degassing effect. The melting metal is not contaminated by refractory materials and it can reduce nonmetal impurities in the metal.
2.Main Technical Parameters
| Unit | EF-0.001 | EF-0.005 | EF-0.025 | EF-0.2 | |
| Capacity | kg | 1 | 5-15 | 25 | 200 |
| Working voltage | V | 20-40 | 20-40 | 20-40 | 20-40 |
| Max. current | A | 1000 | 3000 | 6000 | 12000 |
| Max. vacuum degree | Pa | 6.65×10-3 | 6.65×10-3 | 6.65×10-3 | 6.65×10-3 |
| Working vacuum degree | Pa |
1.33- 1.33×10-2 |
1.33- 1.33×10-2 |
1.33- 1.33×10-2 |
1.33-1.33×10-2 |
| Electrode length | mm | 400 | 1200 | 1350 | 1745 |
| Electrode diameter | mm | 25-40 | 10-45 | 30-60 | 56-150 |
| Ingot diameter | mm | 60 | 50-80 | 100 | 100-200 |
| Ingot length | mm | 100 | 130-135 | 400 | 670 |
|
Cooling water consumption |
m3/h | 6 | 10.5 | 16 | 50 |
|
Overall dimension (L×W× H) |
m |
0.8×0.35 ×1.8 |
3.81×3.0 ×5.21 |
4.43×3.33 ×4.93 |
7.4×3.4 ×6.72 |
